Page 1: Operation Manual
CDB-6HP HD Audio Amplifier Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Panel Description ......3 7. Connection Diagram ......4 8. Specifications ........5... -
Page 6: Introduction
1. INTRODUCTION The HD audio amplifier is a smart device, the external power is no required. This compact HD audio amplifier connects headphone to 3.5mm phone jack over USB interface, the audio source in Laptop/PC allowing output to headphone/earphone which provide user have HD audio source entertainment. -
Page 7: Features
5. FEATURES • Convert and output HD audio source in Laptop/PC to headphone/ earphone • Superior USB audio processor which up to 384K/24bits • Superior DAC engine which support up to 384K for digital signal converts to analog signal • Direct-coupled headphone amplifier for better frequency response avoiding signal loss •... -
Page 8: Operation Controls And Functions

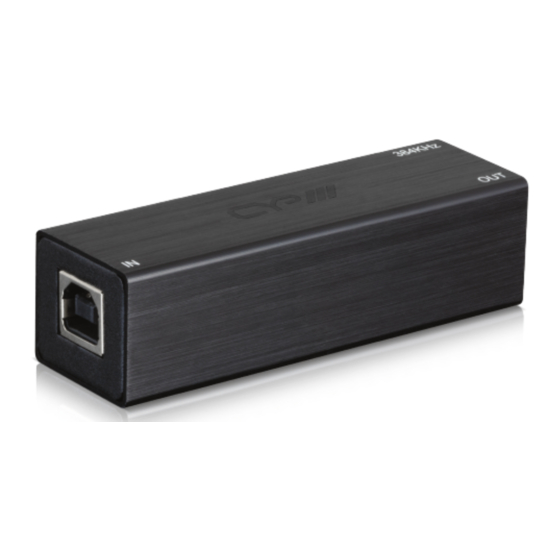

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Panel Description 384KHz HD AUDIO AMPLIFIER USB IN: Connect from source equipment such as PC/Laptop (both of Windows and MAC Operating System are compatible) with audio file playable. POWER LED: This LED will illuminate in red when the unit gets power supply from the input USB. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Head/Earphones or PC/Laptop Speakers 384KHz HD AUDIO AMPLIFIER... -
Page 10: Specifications
8. SPECIFICATIONS Input Ports 1 x USB 2.0 (Type B) Output Ports 3.5mm phonejack Stereo Amplifier ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 81mm (W)× 25mm (D)× 22.5mm (H)/ Weight Chassis Material Aluminum Silkscreen color Black Operating Temperature... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDB6HP...
