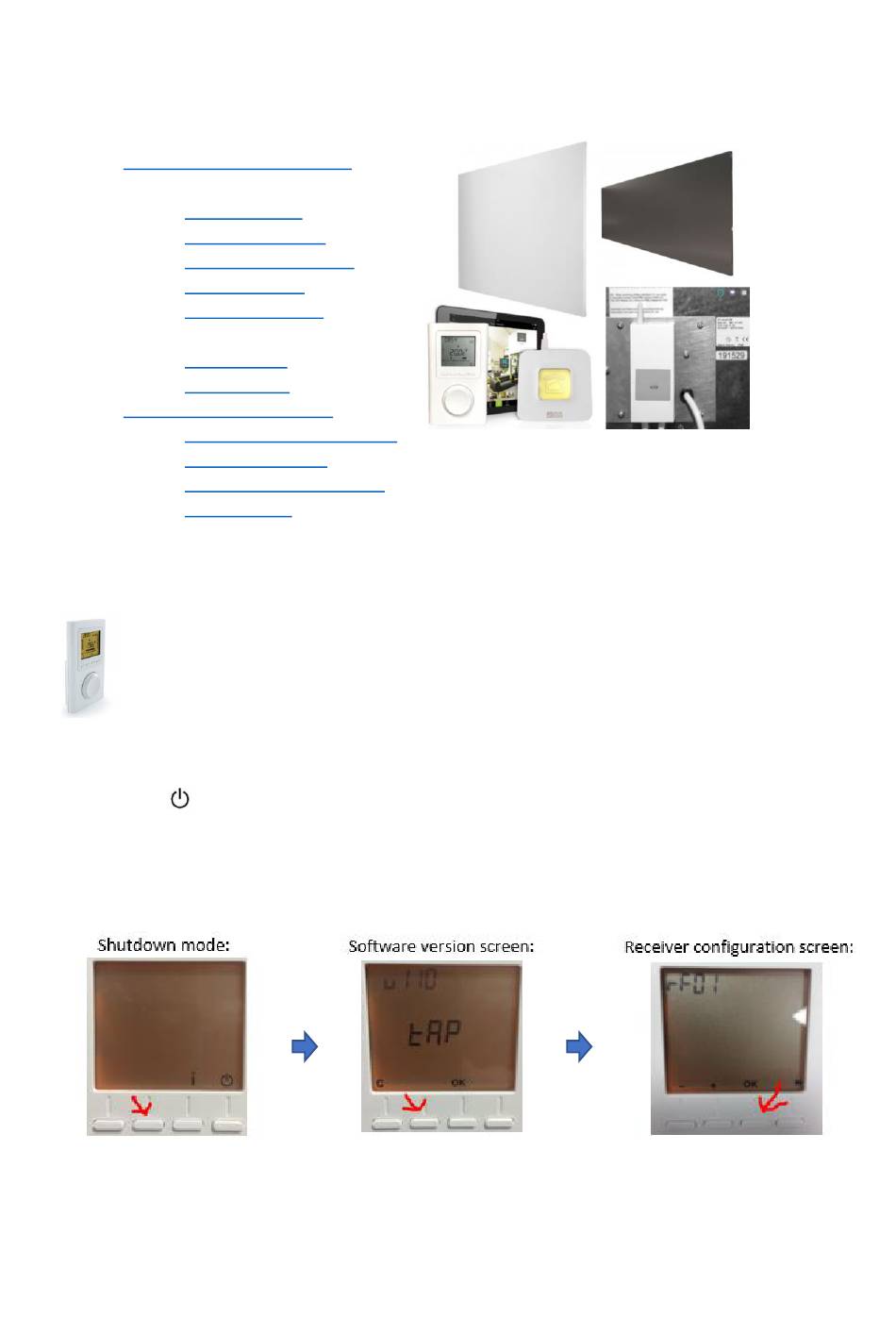

Technotherm Panels Control Guide - TPF-Eco + Eco Interface
Contents:
1.
TPF-Eco - Thermostat Control
How To:
a.
Connect Panels
b.
Use Manual Mode
d.
Use Auto Mode
e.
Disconnect Panels
g.
Configuration
2.
Eco Interface - App Control
b.
Setting up the App
1 - TPF-Eco
Thermostat Control
The TPF-Eco thermostat is a necessary component for controlling your Technotherm
panels. It sends commands via RF to the receivers fitted on the back of the panels. It
measures the room temperature, turning all paired panels on or off to maintain your set
temperatures and programs. The TPF-Eco can be paired with up to 9 panels.
How To Guides
1A - How to Connect Your Panels
•
Press
to put the TPF-Eco in shutdown mode:
•
Hold down the second button from the left until you see "tAP", the software version screen.
•
Again, hold down the second button from the left, until you see "rf01", the receiver
configuration screen.
•
Press OK to tell the TPF-Eco to search for receivers.
17/04/2019 - TPF-Eco version u111
