5�1�3�- MAJOR INSTALLATION
Power supply of recharging points in each foot. (AC wiring)
Lowering of strings (DC wiring) per start and central foot.
5�1�4�- INTERNAL CONNECTION OF FEET
CONDUCTION OF DC
WIRING THROUGH THE
BEAMS
STRINGS
Installation Guide

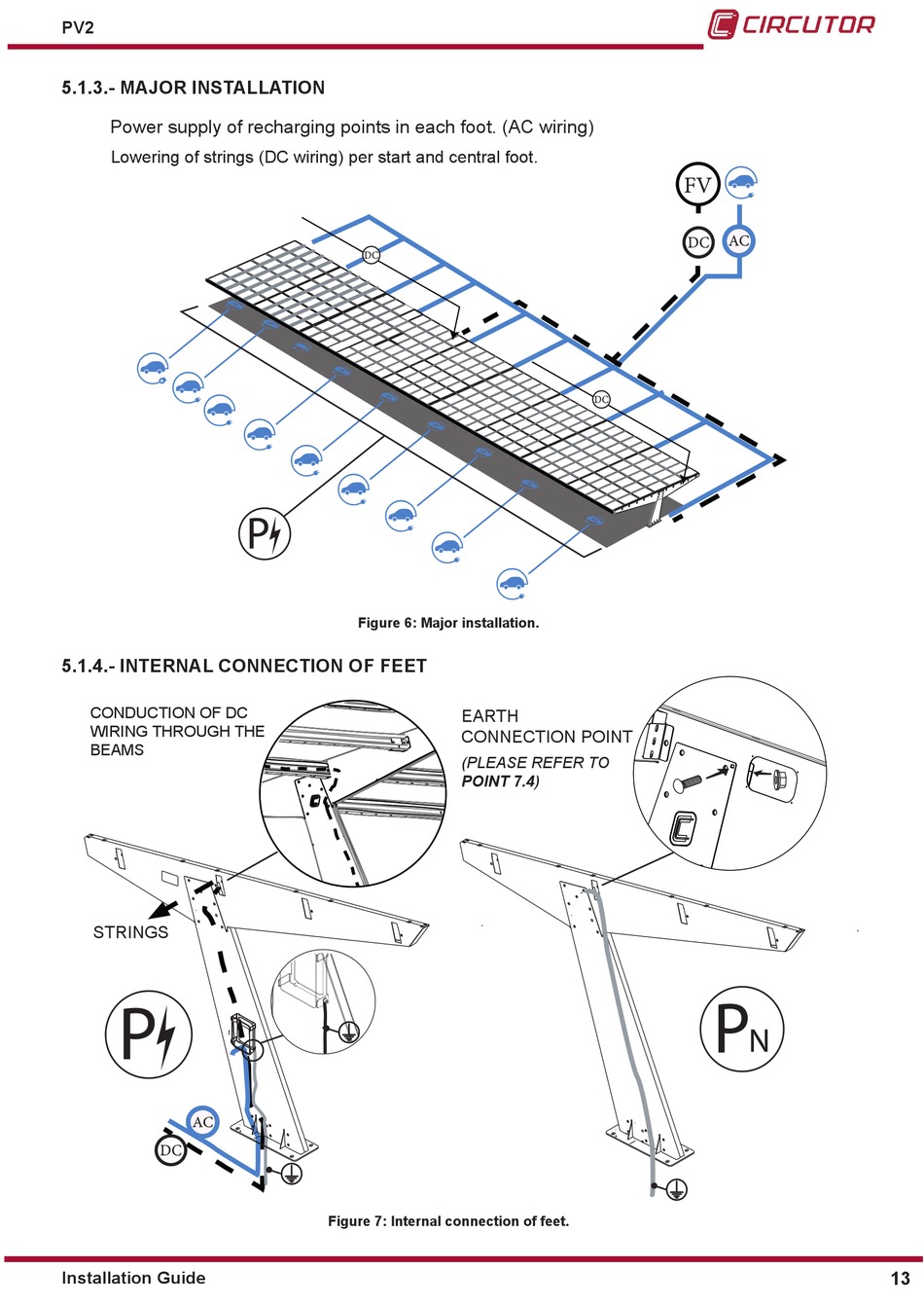

Figure 6: Major installation�
EARTH
CONNECTION POINT
(PLEASE REFER TO
POINT 7.4)
Figure 7: Internal connection of feet�
