Canopies
PVS2
INSTALLATION GUIDE
(M273A01-03-19A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVS2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Circutor PVS2

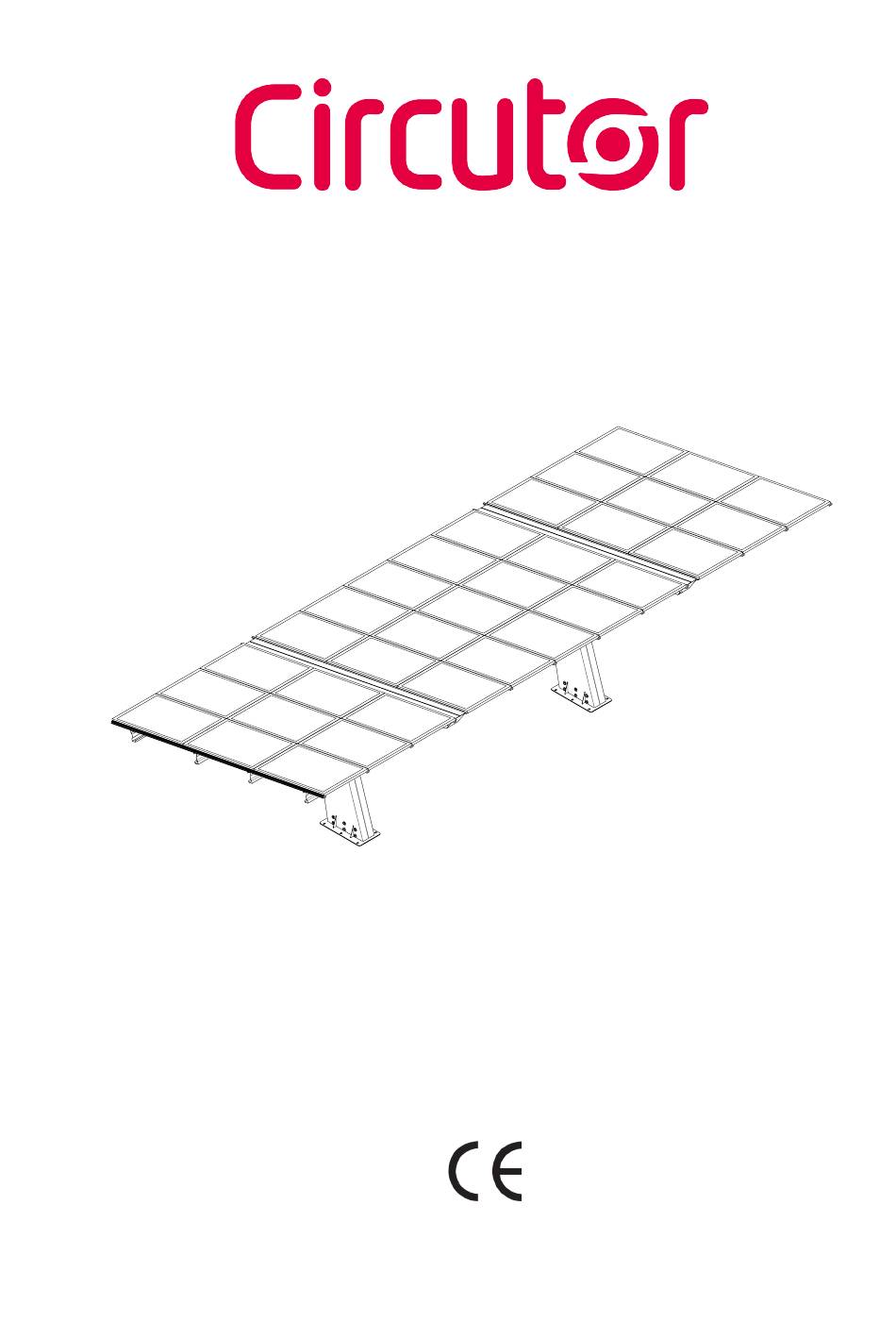

  • Page 1 Canopies PVS2 INSTALLATION GUIDE (M273A01-03-19A)
  • Page 2 PVS2 Installation Guide...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.
  • Page 4: Table Of Contents

    REVISION LOG ������������������������������������������������������������������������������������������������������������������������������������������������������� 6 1�- WARRANTY CERTIFICATE FOR THE CANOPIES ����������������������������������������������������������������������������������������� 7 2�- FORESEEABLE MISUSE ���������������������������������������������������������������������������������������������������������������������������������� 8 3�- PVS2 MODELS �������������������������������������������������������������������������������������������������������������������������������������������������� 9 4�- COMPONENTS ������������������������������������������������������������������������������������������������������������������������������������������������ 11 4�1�- FEET AND WINGS ���������������������������������������������������������������������������������������������������������������������������������� 12 4�2�- BEAMS, PROFILES AND FASTENING OF MODULES ������������������������������������������������������������������������� 13 5�- PREPARATION OF THE INSTALLATION �������������������������������������������������������������������������������������������������������...
  • Page 5 PVS2 11�3�2�- REVISION AND MAINTENANCE TASKS ������������������������������������������������������������������������������������� 42 11�3�3�- CASES THAT INVOLVE SPECIAL REVIEWS ������������������������������������������������������������������������������ 43 12�- MAINTENANCE AND TECHNICAL SERVICE ���������������������������������������������������������������������������������������������� 44 Installation Guide...
  • Page 6: Revision Log

    PVS2 REVISION LOG Table 1: Revision log� Date Revision Description 08/19 M273A01-01-19A Initial version Note : The images of the devices are for illustrative purposes only and may differ from the original device. Installation Guide...
  • Page 7: 1�- Warranty Certificate For The Canopies

    10 year Warranty for defects in materials or manufacturing flaws CIRCUTOR hereby guarantees, for a period of 10 years, from the date of delivery to the buyer, that its canopies are free of any defect in their materials or manufacture that hinder their normal operation under proper conditions of usage, installation and maintenance.
  • Page 8: 2�- Foreseeable Misuse

     Only the assembly of original parts and components supplied by CIRCUTOR is allowed.  CIRCUTOR will not be held liable for any unauthorised modification to the canopy, once the same has been put into service.
  • Page 9: 3�- Pvs2 Models

    PVS2 3�- PVS2 MODELS PVS2-2 PVS2-3 PVS2-4 PVS2-5 PVS2-6 PVS2-8 PVS2-10 Figure 2: PVS2 models� Installation Guide...
  • Page 10 PVS2 Table 2: PVS2 models� Model Length Modules Feet PVS2-2 5,0 m 4,20 kWp PVS2-3 8,0 m 6,72 kWp PVS2-4 10,0 m 8,40 kWp PVS2-5 13,0 m 10,92 kWp PVS2-6 15,0 m 12,60 kWp PVS2-8 20,0 m 16,80 kWp PVS2-10...
  • Page 11: 4�- Components

    PVS2 4�- COMPONENTS Figure 3: PVS2 components� Installation Guide...
  • Page 12: 4�1�- Feet And Wings

    PVS2 4.1.- FEET AND WINGS WING START [M239700000000] PV ANGLE BEAM C [M326100000000] V WING ANGLE [M302100000000] LEFT VIEW RIGHT VIEW PVS CNJTO. PATA CON REG. [M2L5700000001] M20X280 (17u DIN 931 M10X25 DIN 603 M10X50 DIN 6923 M24 Zn DIN 934...
  • Page 13: 4�2�- Beams, Profiles And Fastening Of Modules

    PVS2 4.2.- BEAMS, PROFILES AND FASTENING OF MODULES MODULES PLACKET BEAMS Model MODULES BEAM TORN M103200000002 M109200000002 S273200000001 S268100000001 TORN M104200000005 M106200000001 M108A00000000 PVS2-2 PVS2-3 PVS2-4 PVS2-5 PVS2-6 PVS2-8 PVS2-10 Installation Guide...
  • Page 14: 5�- Preparation Of The Installation

    PVS2 5�- PREPARATION OF THE INSTALLATION 5.1.- STUDY INTO THE ELECTRICAL PROJECT 5�1�1�- STANDARD INSTALLATION WITH RECHARGE POINT IN START FOOT Lowering of strings (DC wiring) per start foot. Power supply to recharging point in start foot (AC wiring). Figure 4: Standard installation with recharging point in start foot�...
  • Page 15: 5�1�3�- Major Installation

    PVS2 5�1�3�- MAJOR INSTALLATION Power supply of recharging points in each foot. (AC wiring) Lowering of strings (DC wiring) per start and central foot. Figure 6: Major installation� 5�1�4�- INTERNAL CONNECTION OF FEET CONDUCTION OF DC EARTH WIRING THROUGH THE...
  • Page 16: 5�2�- Preparation Of Footings

    PVS2 5.2.- PREPARATION OF FOOTINGS 300mm 10º LEAVE CABLES IN PLACE CASKET FOOTING ALIGNMENT SPLICE BOX REINFORCED TWIN-LAYER PIPE -PROJECTION OF A LENGTH OF 6 M APPROXIMATELY FROM CASKET SPLICE FOR THE LOWERING OF STRINGS, DC WIRING. -IF IT IS ONLY FOR AC WIRING OF THE CHARGER, PROJECTION OF 4 M APPROXIMATELY OF CASKET SPLICE.
  • Page 17: 5�3�- Earth Connection

    PVS2 5.3.- EARTH CONNECTION FOOT TUBE CASKET ON EACH FOOT Figure 9: Earth connection� 5.4.- ASSEMBLE TEMPLATES Torque kp·m Figure 10: Assembly of templates� Installation Guide...
  • Page 18: 5�5�- Filling The Footings

    PVS2 5.5.- FILLING THE FOOTINGS Figure 11: Filling the footings� 5.6.- REMOVE UPPER TEMPLATE Figure 12: Remove upper template� Installation Guide...
  • Page 19: 6�- Assembly Of Feet And Wings

    PVS2 6�- ASSEMBLY OF FEET AND WINGS 6.1.- FOOT INSTALLATION (A) Torque kp·m PULL PIPES WHEN LIFTING DO NOT STEP ON TUBES OR PIPES Figure 13: Foot installation (A) Installation Guide...
  • Page 20: 6�2�- Foot Installation (B)

    PVS2 6.2.- FOOT INSTALLATION (B) Torque kp·m Figure 14: Foot installation (B) Installation Guide...
  • Page 21: 6�3�- Installation Of Feet Reinforcement

    PVS2 6.3.- INSTALLATION OF FEET REINFORCEMENT UPPER VIEW Figure 15:Installation of foot reinforcement� Installation Guide...
  • Page 22: 6�4- Installation Of Wings (A)

    PVS2 6.4- INSTALLATION OF WINGS (A) DIN 931 M20X280 Torque kp·m Figure 16: Installation of wings (A)� Installation Guide...
  • Page 23: 6�5- Alignment Of The Feet

    PVS2 6.5- ALIGNMENT OF THE FEET Figure 17: Alignment of the feet Installation Guide...
  • Page 24: 7�- Assembly Of Beams

    PVS2 7�- ASSEMBLY OF BEAMS 7.1- FITTING OF ANGLES Figure 18: Fitting of angles� Installation Guide...
  • Page 25: 7�2- Beam Angles

    PVS2 7.2- BEAM ANGLES DIN 931 M20X130 Torque kp·m Figure 19:Beam angles� Installation Guide...
  • Page 26: 7�3 - Fitting Of Beams

    PVS2 7.3 - FITTING OF BEAMS M10X25 M10x50 Torque kp·m : Figure 20: Fitting of beams� Installation Guide...
  • Page 27: 7�4 - Installation Of Earthing Point

    PVS2 7.4 - INSTALLATION OF EARTHING POINT M10X25 Torque kp·m : INSIDE VIEW OF THE INSTALLATION Figure 21: Installation of earthing point� Installation Guide...
  • Page 28: 8�- Profiles And Modules

    PVS2 8�- PROFILES AND MODULES 8.1 - INTERMEDIATE PROFILES M103200000002 S273200000001 Figure 22:Intermediate profiles 8.2 - FINAL PROFILES M109200000002 S268100000001 Figure 23:Final profiles. Installation Guide...
  • Page 29: 8�3 - Preparation Of Profiles

    PVS2 8.3 - PREPARATION OF PROFILES M10X25 Torque kp·m : Figure 24: Preparation of profiles A M8X10 Torque kp·m : Figure 25:Preparation of profiles B Installation Guide...
  • Page 30: 8�4 - Fitting Of Intermediate Profiles (1)

    PVS2 8.4 - FITTING OF INTERMEDIATE PROFILES (1) M103200000002 Torque kp·m : Figure 26:Fitting of intermediate profiles 1 Installation Guide...
  • Page 31: 8�5 - Fitting Of Intermediate Profiles (2)

    PVS2 8.5 - FITTING OF INTERMEDIATE PROFILES (2) S273200000001 Figure 27:Fitting of intermediate profiles 2 Installation Guide...
  • Page 32: 8�6 - Fitting Of Final Profiles (3)

    PVS2 8.6 - FITTING OF FINAL PROFILES (3) M109200000002 M109200000002 Figure 28: Fitting of final profiles 3. Installation Guide...
  • Page 33: 8�7 - Fitting Of Final Profiles (4)

    PVS2 8.7 - FITTING OF FINAL PROFILES (4) S268100000001 Figure 29: Fitting of final profiles 4. Installation Guide...
  • Page 34: 8�8 - Setting Modules A

    PVS2 8.8 - SETTING MODULES A POSITION OF CONNECTION BOX! SEE POINT 8�10 M104200000006 M106200000001 Figure 30: Setting modules A� Installation Guide...
  • Page 35: 8�9 - Setting Modules B

    PVS2 8.9 - SETTING MODULES B POSITION OF CONNECTION BOX! SEE POINT 8�10 TPV10APLI GPV10APLI Figure 31:Setting modules B� Installation Guide...
  • Page 36: 8�10 - Connection Of Strings

    PVS2 8.10 - CONNECTION OF STRINGS Distribute the modules according to their connection as per the following scheme: DC WIRING CHANNEL THROUGH THE BEAMS AND INSIDE OF THE FOOT Figure 32: Connection of strings� Installation Guide...
  • Page 37: 9�- Final Foundations

    PVS2 9�- FINAL FOUNDATIONS Hormigón /Concrete Figure 33:Final foundations� Installation Guide...
  • Page 38: 10�- Installation Of The Charger

    PVS2 10�- INSTALLATION OF THE CHARGER Remove the covers stamped to insert the charger. Figure 34: Installation of the charger, Step 1� Installation Guide...
  • Page 39 PVS2 Figure 35: Installation of the charger, Step 2� Installation Guide...
  • Page 40: 11�- Usage And Maintenance

    PVS2 11�- USAGE AND MAINTENANCE 11.1 - INSTALLATION Before the assembly of the canopies, the technical management of the works or the engineering company that carries out the installation project must draft a technical project in which the housings (foundations, footings, support structure, etc.) are sized accordingly with the resulting stressed exerted on the canopy due to wind and snow indicated by the regulations applicable to the specific location of the canopy.
  • Page 41: 11�2 - Use And Upkeep

    PVS2 If the canopy is installed in the vicinity of a height change, or on a steep wall or mound that increases the height of the canopy above the grade to more than 3 m in height at the centre point of the roofing, a special study will be required owing to the modification of the pressure and suction coefficients considered in the calculation.
  • Page 42: 11�3 - Revision And Maintenance

    PVS2 11.3 - REVISION AND MAINTENANCE 11�3�1�- GENERAL CONDITIONS The construction management or the engineering company that carry out the project will define the periods and maintenance actions required for the housing or foundation. It is highly recommended to carry out testing procedures on concrete footings or housings.
  • Page 43 PVS2 11�3�2�2�- Periodicity: annual Check all the fastening screws of the sail with a torque wrench (base / foot / wing). Review with normal key of all the screws of the cover (in this case the torque wrench is not necessary).
  • Page 44 PVS2 12�- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 45 PVS2 Installation Guide...
  • Page 46 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
