5.2.- PREPARATION OF FOOTINGS
LEAVE CABLES IN
PLACE
REINFORCED
TWIN-LAYER PIPE
-PROJECTION OF A LENGTH OF 6 M APPROXIMATELY FROM CASKET SPLICE FOR THE
LOWERING OF STRINGS, DC WIRING.
-IF IT IS ONLY FOR AC WIRING OF THE CHARGER, PROJECTION OF 4 M APPROXIMATELY
OF CASKET SPLICE.
14
MAX
10º
FOOTING ALIGNMENT
SPLICE BOX

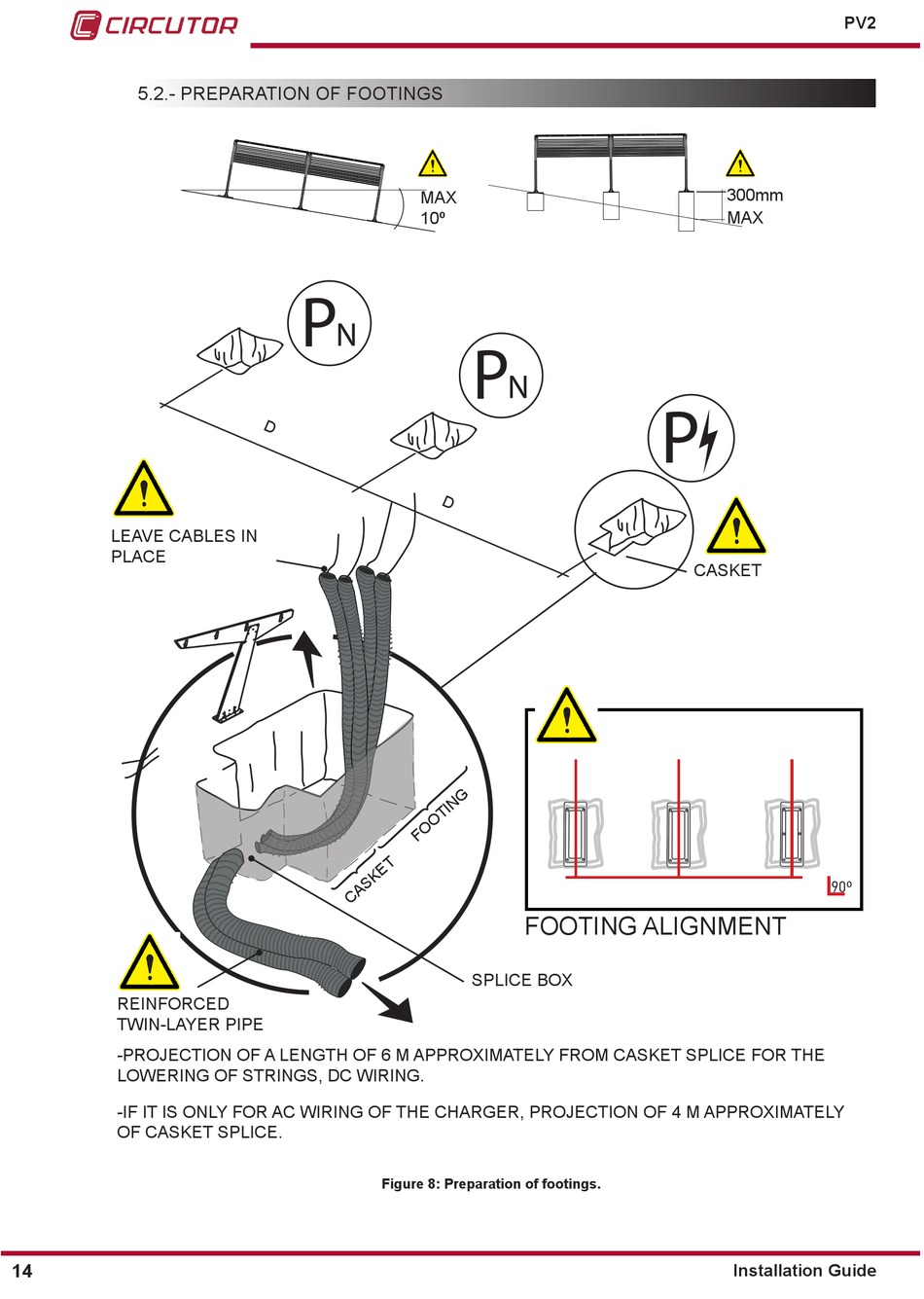

Figure 8: Preparation of footings�
PV2
300mm
MAX
CASKET
