5�- PREPARATION OF THE INSTALLATION
5.1.- STUDY INTO THE ELECTRICAL PROJECT
5�1�1�- STANDARD INSTALLATION WITH RECHARGE POINT IN START FOOT
Lowering of strings (DC wiring) per start foot.
Power supply to recharging point in start
foot (AC wiring).
5�1�2�-STANDARD INSTALLATION WITH RECHARGE POINT IN START AND END FOOT
12

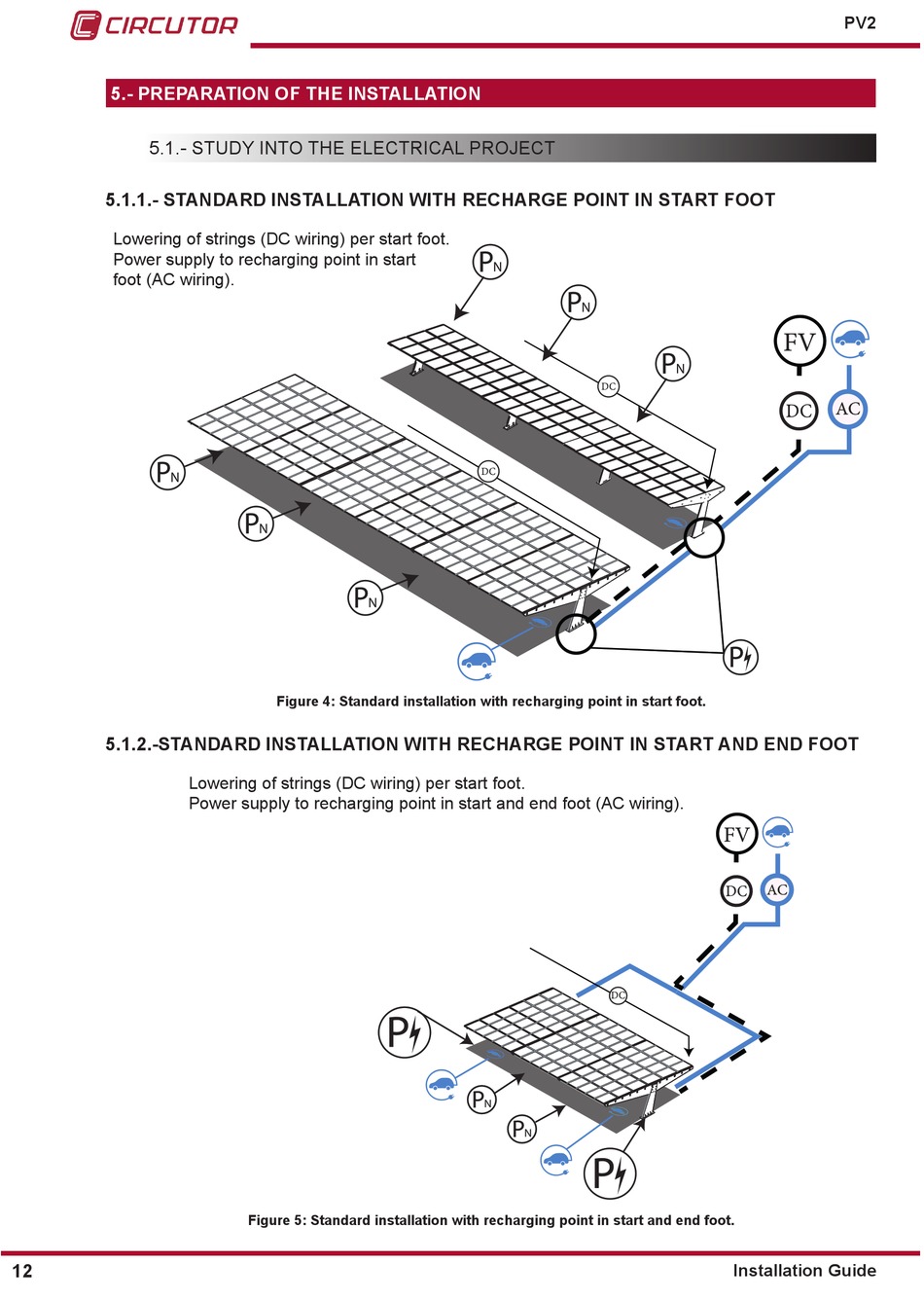

Figure 4: Standard installation with recharging point in start foot�
Lowering of strings (DC wiring) per start foot.
Power supply to recharging point in start and end foot (AC wiring).
Figure 5: Standard installation with recharging point in start and end foot�
