Display Functions

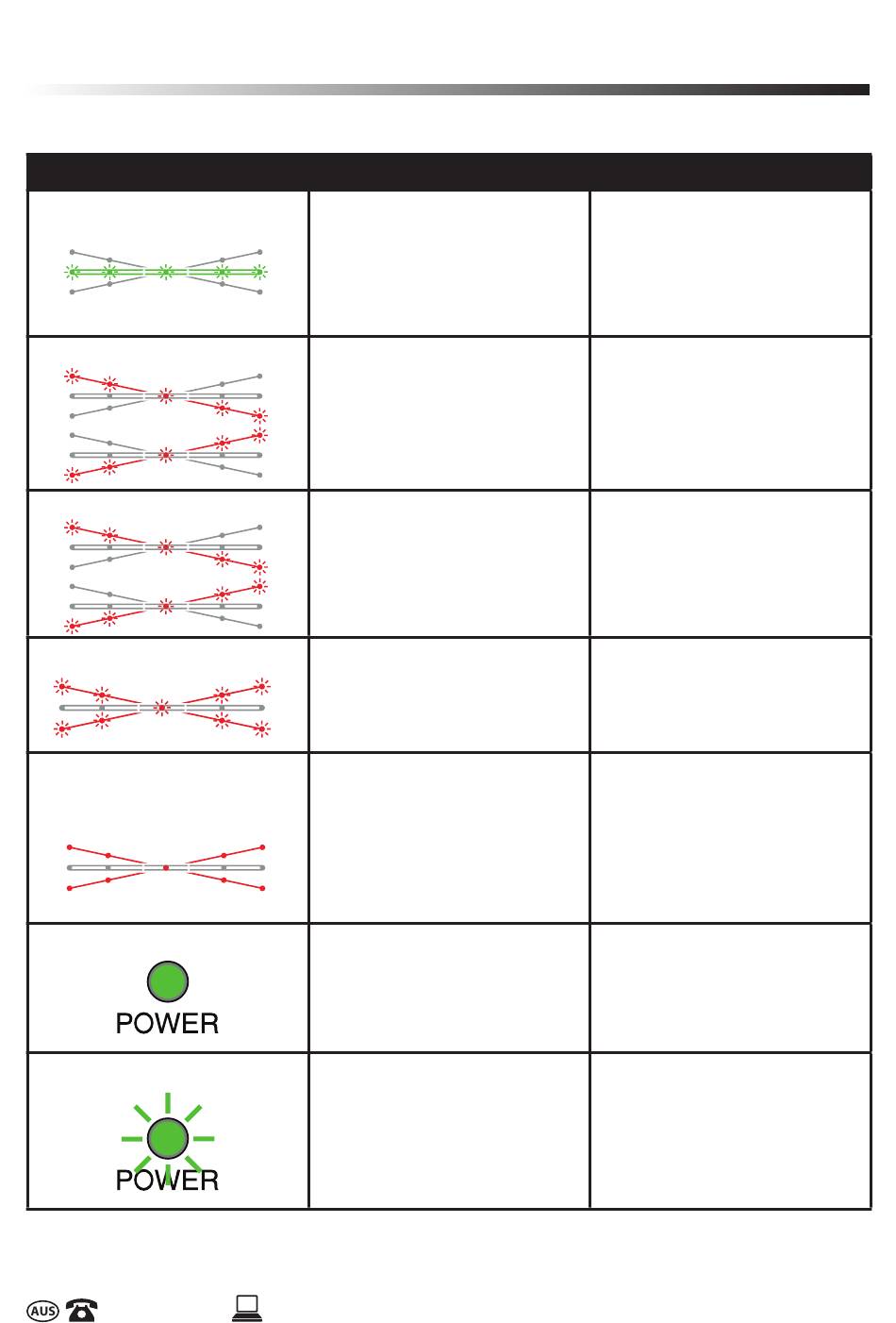

DISPLAY
Flashing Green
Slow Flashing Red
or
Rapid Flashing Red
or
Two Flashing Red Lines
Two Solid Red Lines
Solid Green Battery Light
Flashing Green Battery Light
After Sales Support
1300 663 907
STATUS
Can be Set to Active Mode
Device is Level
X Axis, Sideways Lean: Within
+/-1.5°
Z Axis, Tilt: Between 5°-14°
Can be set to Active Mode
Use with Caution
X Axis, Sideways Lean:
Between 1.5° - 2.7°
Z Axis, Tilt: Between 5°-14°
Can be set to Active Mode
Use with Caution
X Axis, Sideways Lean:
Between 2.7°- 5°
Z Axis, Tilt: Between 5°- 14°
Only shows in Active Mode
Z Axis, Tilt: Change of 1.5º to
2.7º from set position
Active Mode Not Possible
/ Dismount Ladder when
Safe
X Axis, Sideways Lean: Over 5°
Z Axis, Tilt: More than 2.7º
from set
Device is on and batteries
are sufficiently charged
Batteries are close to end of
life and need to be replaced
