Step Smart Ladder
Stability Sensor

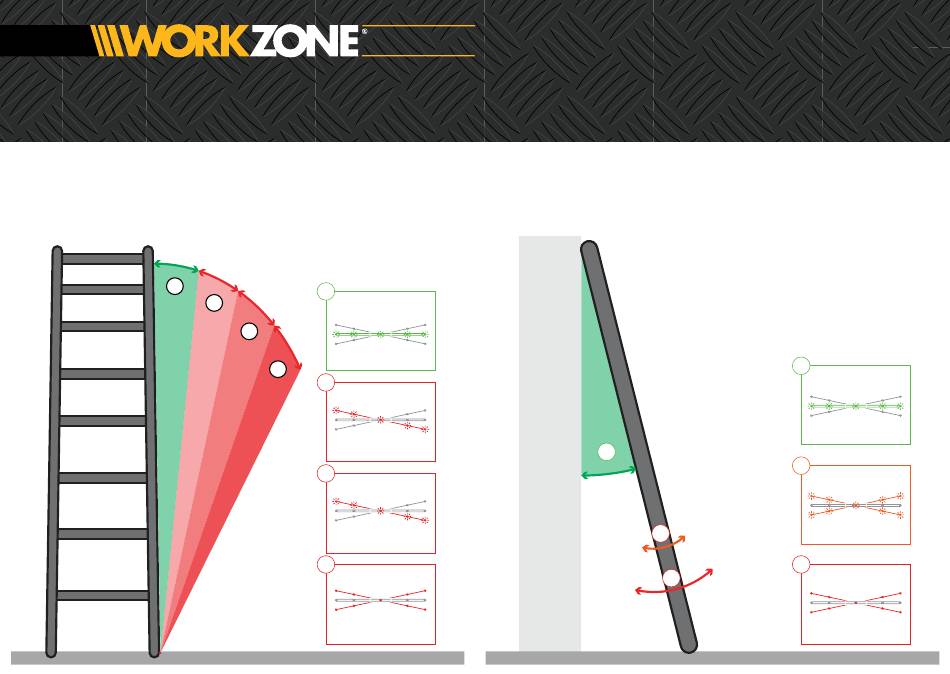

Visual Representation of X Axis or a Sideways Lean
This visual shows the degree of change required to initiate the alarm when the
ladder moves sideways
NOTE: This representation is not to scale and is for a visual reference only.
<1.5º
1
1.5º-2.7º
1
2.7º-5º
2
<1.5º
3
5º+
Flashing Green
4
2
1.5º-2.7º
Slow Flashing Red
Slow Beep
3
2.7º-5º
Rapid Flashing Red
Rapid Beep
4
5º+
Two Solid Red Lines
Constant Alarm
QUICK REFERENCE
GUIDE
Visual Representation of Z Axis or Ladder Tilt
This visual shows the degree of change required to initiate the alarm when the tilt
of the ladder changes
NOTE: This representation is not to scale and is for a visual reference only.
Wall
1
5º-14º
1.5º
2
1.5º
3
2.7º
Side
Ladder
View
1
5º-14º
Flashing Green
2
Change of 1.5º
from set position
Two Flasing Red Lines
Rapid Beep
2.7º
3
Change of 2.7º
from set position
Two Solid Red Lines
Constant Alarm
