SASP 1
INSTRUCTION MANUAL
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SASP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanus SASP1

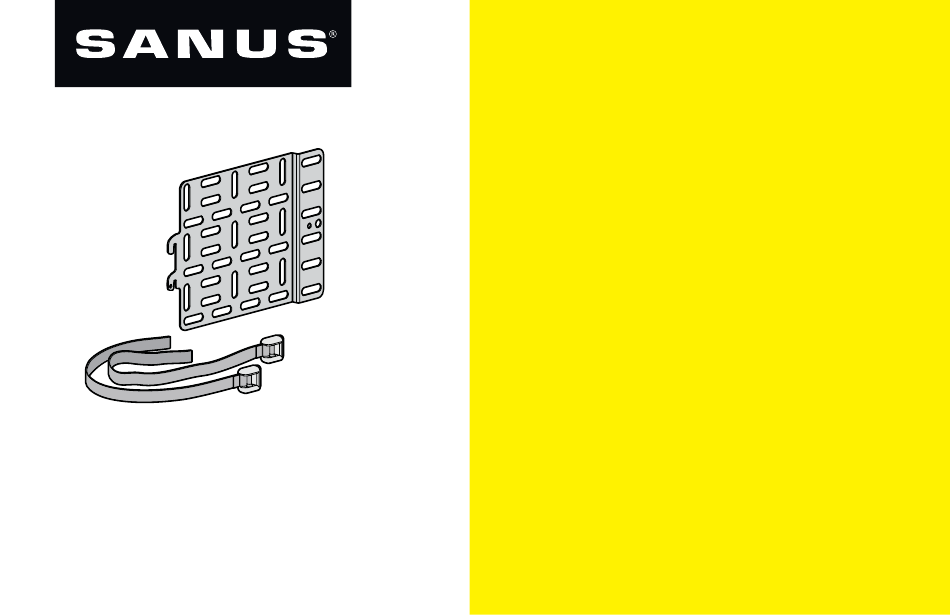

  • Page 1 GET IT RIGHT THE FIRST TIME Follow this step-by-step SASP 1 instruction manual to speed up your installation. INSTRUCTION MANUAL...
  • Page 2: We're Here To Help

    WE’RE HERE TO HELP Call us at: 800-359-5520 Or, chat at: SANUS.com/chatSP Our US-based install experts are standing by to help.
  • Page 3: Weight Limit

    IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before getting started, let’s make sure this accessory is perfect for you! Do not exceed 3 lbs. (1.3 kg) of accessories for the SASP1 panel. Weight Limit 3 lbs.
  • Page 4 Dimensions in. [mm] 8.39in. 5.38in. [213.2mm] [136.62mm] ø0.33in. [8.40mm] 5.48in. 6.13in. 5.29in. [139.07mm] [155.6mm] [134.48mm] ø0.20in. [5.20mm] 0.78in. [19.69mm] 6.28in. [159.5mm] 0.38in. [9.5mm]...
  • Page 5: Parts And Hardware

    Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
  • Page 6 Parts and Hardware Included Retaining Screw Mounting Screws TV Screws Washers M4 X 35 mm M4 X 12 mm M4 X 6 mm M6 X 35 mm M6 X 12 mm M8 X 35 mm M8 X 20 mm Spacers 22 mm...
  • Page 7 Determine the Mounting Method for Your SASP1 Panel For TV Mounts with side slots For TV Mounts For non-mounted TVs without side slots (TVs with stands) Go to STEP 1, OPTION A Go to STEP 1, OPTION B Go to STEP 1, OPTION C...
  • Page 8 STEP 1 Option A Attach to a Wall Mount WITH Slots Before installing panel , install the TV brackets onto the TV. If the TV is already mounted to the wall, you may need to remove it for better access. Refer to your TV mount’s installation manual for TV bracket assembly or TV removal. Attach panel on either TV bracket fi...
  • Page 9 STEP 1 Option B Attach to a Wall Mount WITHOUT Slots Before installing panel 1. R emove the TV from the wall plate or arm assembly 2. R emove the TV bracket from the TV (if installed). (if mounted). NOTE: Remember the locations of all the hardware AND the TV Refer to your TV mount’s installation manual for TV removal.
  • Page 10 NOTE: You may need to verify clearance with your mount’s arm assembly or wall plate before installing. CAUTION: Verify adequate thread engagement with the screw, washer and SASP1 panel Too short will not hold the panel. Too long will damage the TV. Too Short...
  • Page 11 Attach panel using your TV mount’s hardware (screws/washers/spacers). CAUTION: Panel must touch TV bracket . Any spacers/adapters must be With Spacers mounted on the TV side. CAUTION: Avoid potential personal injuries and property damage! You may require longer screws for this step - - verify adequate thread engagement (PAGE 9). Additional screw lengths and spacers are provided if required.
  • Page 12 STEP 1 Option C Attach to Non-Mounted TVs (TVs with stands) Acceptance Equation: To determine if the SASP1 will work for your TV: Divide This Weight of TV answer must answer multiplied by the greater than Width of stand Distance between holes...
  • Page 13 Attach panel to the back of the TV directly into one of the TV’s VESA mounting holes using a mounting screw and washer in one of the round holes of panel as shown. NOTE: Install device before mounting panel to TV. NOTE: DO NOT install more than two panels.
  • Page 14 STEP 2 Attach Accessories to the Panel into a slot BELOW your accessory and rotate 90 degrees. 1. Position a strap NOTE: Install device before mounting panel to TV.
  • Page 15 over the accessory and through panel 2. Wrap the strap NOTE: for heavier or larger-sized accessories, use two to secure in place. straps to secure in place. IMPORTANT: Make sure there is enough strap overlap to secure the accessory in place.
  • Page 16: Mounting Examples

    Mounting Examples Overhang Vertical Angled...
  • Page 17: Herramientas Necesarias

    CONSERVE ESTAS INSTRUCCIONES DE SEGURIDAD IMPORTANTES Y LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO Antes de comenzar, verifi quemos que este accesorio es el adecuado para usted. Límite de peso 1,3 kg No exceda los 1,3 kg (3 lb) de accesorios con el panel SASP1. para el SASP1 (3 lb) PRECAUCIÓN: Restricciones Evite posibles lesiones personales y daños materiales.
  • Page 18 Nunca utilice piezas deterioradas. NOTA: No todos los accesorios incluidos deberán utilizarse. Determinar el método de montaje para su Panel SASP1 VER PÁGINA 7...
  • Page 19 NOTA: Puede que necesite verifi car la separación con el módulo del brazo del soporte o placa de pared antes de su instalación. NOTA: NO instale más de 2 paneles a la vez. PRECAUCIÓN: Verifique que el tornillo, la arandela y el panel de SASP1 enrosquen correctamente.
  • Page 20 VER PÁGINA 12 Ecuación de compatibilidad: Para determinar si el SASP1 es adecuado para su televisor Multiplique el peso de su televisor por el ancho del soporte en pulgadas. Divida el resultado por la distancia entre los orifi cios en pulgadas.
  • Page 23 Register your new mount and tell us how you like it for a chance to win in our monthly sweepstakes. Entering is quick and easy. Visit SANUS.com/1234 and follow three simple steps for your chance to win. "Monthly Prize" sweepstakes rules and restrictions apply. Visit...
  • Page 24 800-359-5520 • info@sanus.com • SANUS.com SANUS • 6436 City West Parkway • Eden Prarie, MN 55344 USA ©2016 Milestone AV Technologies. All rights reserved. SANUS is a division of Milestone. 6901-002611 00 All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
