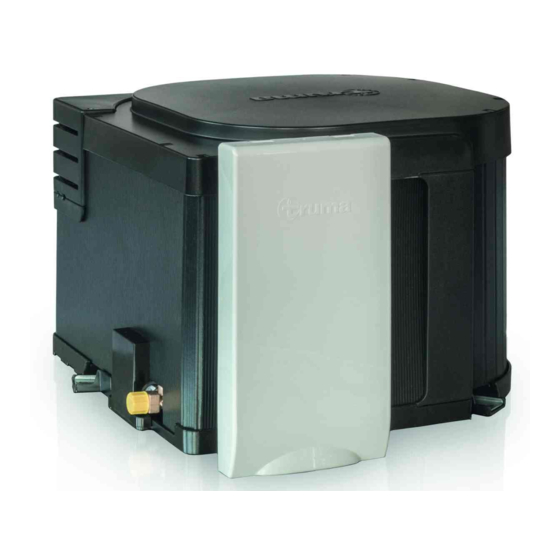

Truma Ultrastore Rapid GE Operating Instructions & Installation Instructions
Hide thumbs
Also See for Ultrastore Rapid GE:
Related Manuals for Truma Ultrastore Rapid GE
Summary of Contents for Truma Ultrastore Rapid GE
- Page 1 Ultrastore Rapid GE Operating instructions Page 3 Installation instructions Page 9 To be kept in the vehicle!
- Page 2 Ultrastore Rapid GE Showering with the Ultrastore Rapid GE The Truma Ultrastore Rapid GE has 10 litre capacity. It is more than capable of heating enough water to give out three con- secutive hot showers. When using the boiler, you should observe the following points to achieve this: –...
-
Page 3: Table Of Contents
Symbol indicates a possible hazard. Important operating notes ..........4 Comment including information and tips. Operating instructions Filling the Truma Ultrastore with water ......... 5 Draining the water heater ............. 5 Switching on Gas operation ..........5 Switching off ................ 5 Red LED “Failure”... -
Page 4: Safety Instructions
– failure to use original Truma parts as replacement parts and drained by actuating the safety/drain valve, also when the accessories, heater has not been used. As an alternative, two shut-off –... -
Page 5: Operating Instructions
(e.g. on the wardrobe door)! Ask Truma to send you a = Red LED “Failure” stickers, if necessary. -
Page 6: Maintenance
Manufacturer Maintenance Truma Gerätetechnik GmbH & Co. KG P.O. Box 1252 We recommend to use twice a year the Truma system care 85637 Putzbrunn (Munich) set for cleaning, disinfecting and looking after the boiler. Other Germany products – in particular products containing chlorine – are Water contents unsuitable. -
Page 7: Trouble-Shooting List
Hot water flows back – Fit a no-return valve in the cold water supply tap, hot water tap comes out. through the cold water (refer to installation instructions “Water connection”). supply. If this does not solve the problem, please contact the Truma Service. -
Page 8: Declaration Of Conformity
A claim under warranty shall not pertain: Type / model – for parts subject to wear and in cases of natural wear LPG-water heater / Boiler Ultrastore Rapid GE (UGE 10) and tear, 3. Meets the requirements of the following Directives –... -
Page 9: Installation Instructions
Prohibited important to the operation of the system (e.g. the time switch) Prohibited Zone that are not original Truma parts and failure to follow the in- Zone Floor stallation and operating instructions will cancel the warranty and indemnify Truma from any liability claims. It also becomes illegal to use the appliance, and in some countries this even makes it illegal to use the vehicle. -
Page 10: Water Connection
(pressure relief) drain valve (14) must be used! John Guest System rigid pipe routing The water connectors (12 + 13) and safety/drain valve (14) supplied with the Truma Ultrastore have a 12 mm diameter fitting and are only approved to use with Original John Guest piping. -
Page 11: Flexible Water Hose Routing
Cut off the ventilation hose approx. 20 mm below the floor of the vehicle at an angle of 45° to the direction of travel. As special accessories Truma supplies the water connectors (12 + 13) and safety/drain (14) valve with a 10 mm diameter hose nipple (please refer to page 14). -
Page 12: Installation Of The Control Panels
Push on the front cover frame (32). When using control panels which are specific to the To round off the appearance of the cover frame, Truma vehicle or the manufacturer, the electrical connection can provide side pieces (33) as special accessories in must be established in accordance with the Truma interface 8 different colours (please ask your dealer). -
Page 13: Electrical Connection 230 V
(e.g. on the wardrobe door)! Ask Truma to send you stickers, if necessary. Connection 230 V control panel Connect control panel cable, 230 V cable and heating element cable as shown in the drawing. -
Page 14: Accessories
Accessories Shut-off device To use when the cowl is fitted under a opening part of a Safety/drain valve and water connectors for flexible window (only to use together with an appropriate window water hoses switch). 34020-63900 Hot water connector, 10 mm 70020-00800 Shut-off device 34020-16900... - Page 15 Notes...
- Page 16 In Germany, always notify the Truma Service Centre if problems are encountered; in other countries the relevant service partners should be contacted (see Truma Service Booklet or www.truma.com). Having the equipment model and the serial number ready (see type plate) will speed up processing.
