2 Zone Control Pack - Temperature Sensor Wiring; 2 Zone Control Pack - Dip Switch Settings - Ecodan 150 Standard Installation And Servicing Instructions
Mitsubishi electric pre-plumbed unvented mains pressure water heater with ftc5 control system for use with the air source heat pump range 150, 170, 210, 250 and 300 litre capacity
Table of Contents
Advertisement

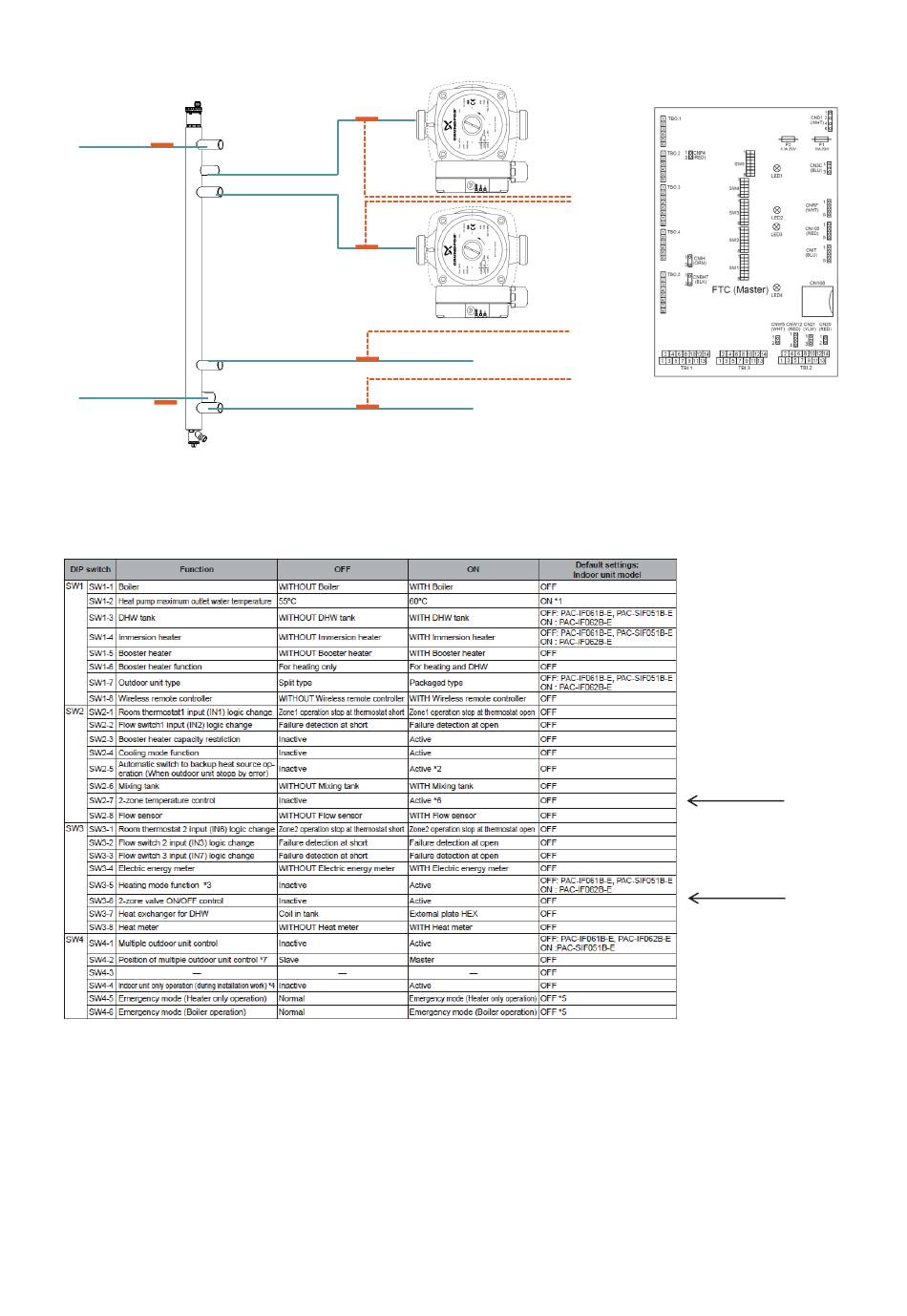

Fig 11 - 2 zone control pack - temperature sensor wiring
Primary Flow
Primary Return
Fig 12 - 2 zone control pack - dip switch settings
24
Secondary Z1 Flow
Secondary Z2 Flow
Secondary Z2 Return
Secondary Z1 Return
TB1.2 3-4 (THW6)
TB1.2 7-8 (THW8)
TB1.2 9-10 (THW9)
TB1.2 5-6 (THW7)
SW2-7 - ON
SW3-6 - ON
