Setting up the UPM3 pump

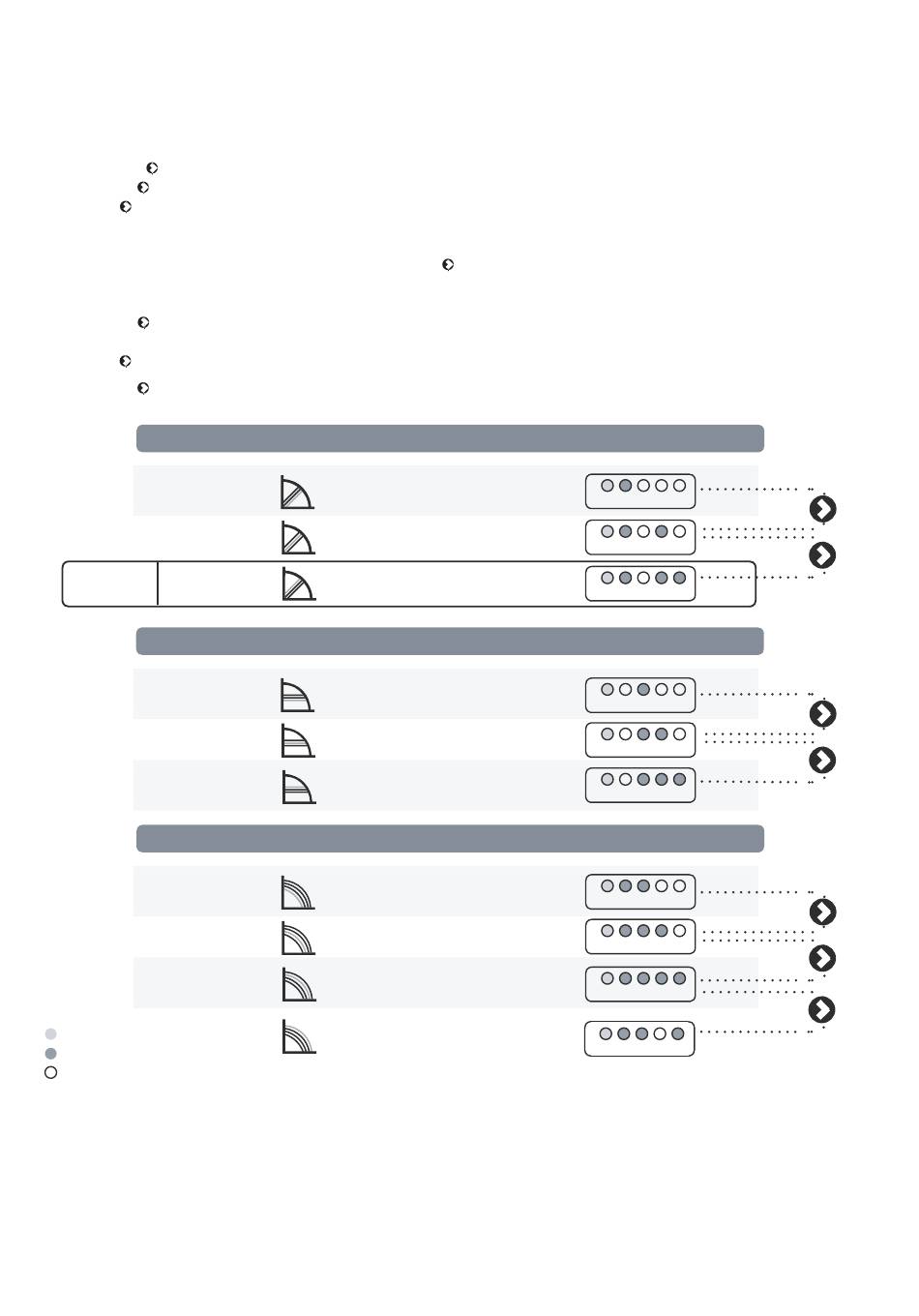

When you switch on the pump it will run to the pre-set position or the last setting. The diagram below shows the current
operation status.
To change the pump setting, follow below:
(a) Press the ' ' to switch to the settings view. The LEDs show the current setting for2 seconds.
(b) Release ' ' for more than 2 seconds. The user interface shows the current performance in "operation status".
(c) Press ' ' for more than 2 seconds and the circulator switches to "setting selection". The LEDs flash and show the
current setting mode. Please note that if the key lock is disabled, the circulator will not switch to "setting selection".
In this case, unlock the key lock by pressing the button for 10 seconds.
(d) During a period of 10 seconds, press shortly on the ' ' and the pump switches to the next setting.
(e) To select between the settings, instantly press the button until you find the setting you want. If you pass the setting,
you will need to continue until the setting appears again. It is not possible to go back.
(f) Release ' ' for more than 10 seconds and the user interfaces switches back to the performance view and the last
setting is stored.
(g) Press ' ' and the display switches to the setting view and the LEDs show the current setting for 2 seconds.
(h) Release ' ' for more than 2 seconds and the user interface switches back to the performance view.
