Summary of Contents for Krups Nespresso Vertuo Plus

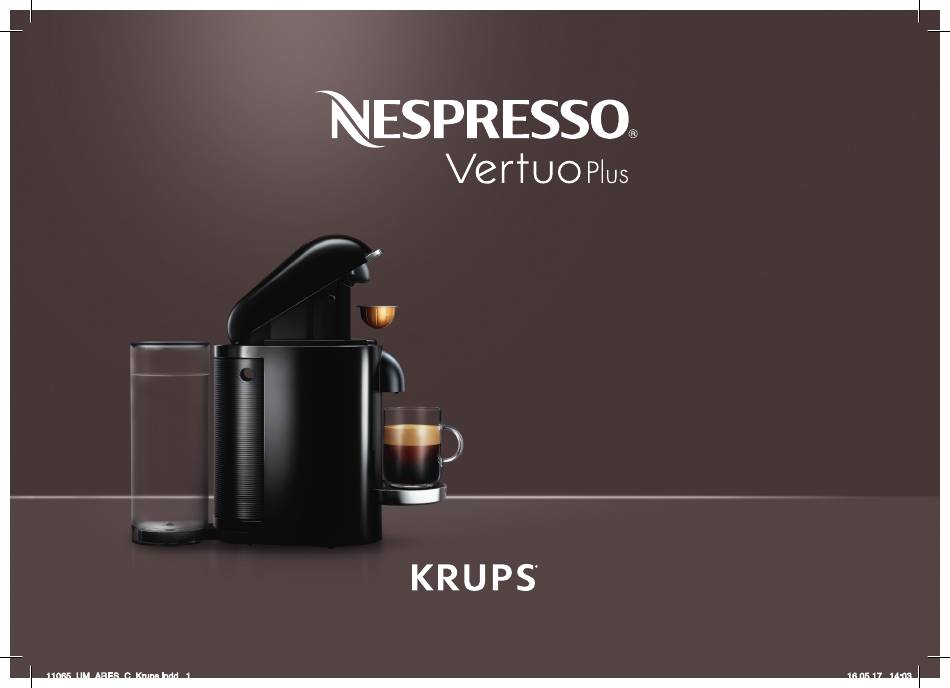

- Page 1 Machine 11065_UM_ARES_C_Krups.indd 1 16.05.17 14:03...
-
Page 2: Table Of Contents
Nespresso Vertuo is an exclusive system creating a perfect coffee, from the Espresso to the large Alto, time after time. Nespresso Vertuo machines are equipped with the unique Centrifusion technology to gently extract an Alto, Mug, Gran Lungo or Espresso at the touch of a button. Each extracting ®... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS CAUTION: Use of controls, adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure. • The appliance is and breakfast type capabilities, or CAUTION: when you see this sign, please intended to prepare environments. - Page 4 SAFETY PRECAUTIONS NOTE: This appliance contains a class-1 laser product. over sharp edges, socket and let the Avoid risk of fatal • To avoid hazardous electric shock and fire clamp it or allow it to damage, never place appliance cool down. •...
- Page 5 never open it during the surface of the Avoid possible harm used for an extended when operating the operation. time (holidays, etc.). appliance. appliance • Do not put fingers • Do not use any • To clean machine, under coffee outlet, risk other liquid (such Use fresh and clean •...
- Page 6 SAFETY PRECAUTIONS on selected units. This its lifetime and that can show traces of any your coffee experience previous use. is as perfect as the first day. • The use of accessory attachments not • For coffee and recommended by the coffee&milk machines, manufacturer may descale according...
-
Page 7: Overview
OVERVIEW SPECIFICATIONS OFF/Open and Close Lever ON/Coffee Button XN900 220 - 240 V, 50Hz, 1260 W ~ 4.6 kg Capsule Container 1.7 l Water Tank If water tank on If water tank at the back the side 232 mm 142mm 335 mm 423 mm Coffee Outlet... -
Page 8: Machine Handling
MACHINE HANDLING WATER TANK 1 The water tank arm can be rotated and positioned 2 Remove the water tank by tilting it slightly backwards, at the back, to the left or to the right hand side of the then gently pulling it up. machine. - Page 9 CUP SUPPORT 1 The cup support has 4 positions 2 To place the cup support, slide cup support straight into and can be temporarily removed the holes and gently push down until the hooks are well to accommodate various cup in place.To remove it, gently lift straight up and then pull sizes.
-
Page 10: First Use Or After A Long Period Of Non-Use
FIRST USE OR AFTER A LONG PERIOD OF NON-USE CAUTION: First read the Safety Precautions to avoid risks of fatal electrical shock and fire. 1 Rinse and clean the water 2 Ensure the capsule container and the cup support tank and lid before filling it are in place. - Page 11 5 Steady GREEN lights will indicate the machine 6 Place a cup of at least 0.8 l under the coffee outlet. is ready. 7 Open the machine head by pressing the lever up to eject 8 Push the button 3 times in 2 seconds to start cleaning the capsule and then push the lever down to close it.
-
Page 12: Coffee Preparation
COFFEE PREPARATION CAUTION: Be careful not to injure yourself on sharp points or trap your fingers when reaching inside the machine. 1 Fill the water tank with 2 Turn the machine “ON” by 3 GREEN lights will blink while the 40 sec. - Page 13 7 Insert a capsule with the dome shape facing downward. 8 Push the lever down to close the machine head. NOTE: To avoid damaging the machine, use only fresh, unused capsules. Ensure previous capsule has been ejected before inserting a fresh one. NOTE: 9 Push the button to start the brewing process.
-
Page 14: Energy Saving Concept
COFFEE PREPARATION NOTE: 12 To manually top off your 13 To eject the capsule, open the It is recommended to eject the coffee, push the button machine head by pushing the capsule directly at the end of the brewing. and push again to stop lever upwards. -
Page 15: Programming The Water Volume
PROGRAMMING THE WATER VOLUME 1 The programming is specific to each capsule 2 Open the machine head by pressing the lever upwards; Insert the capsule blend you size, Alto, Mug, Gran Lungo or Espresso. Cup want to program; Close the head by pushing the lever down. sizes can be reprogrammed from 10 ml to 500 3 Push and hold the 4 Water volume level is now stored for the capsule size... -
Page 16: Special Functions Cleaning
SPECIAL FUNCTIONS CLEANING NOTE: The machine has a predefined cleaning procedure that can be launched at user discretion. CAUTION: Do not use any strong or abrasive cleaning agent or solvent cleaner. Do not put in a dishwasher. Never immerse the appliance or part of it in water. Clean the coffee outlet regularly with a damp cloth. -
Page 17: Reset To Factory Settings
RESET TO FACTORY SETTINGS NOTE: Choose special function by pressing the lever down: 1 time for "Descaling". 2 times for "Emptying the system". 3 times for "Reset to factory settings" 1 Turn the machine "OFF" by pushing the lever down 2 To enter "Factory settings"... -
Page 18: Emptying The System
EMPTYING THE SYSTEM BEFORE A PERIOD OF NON-USE, FOR FROST PROTECTION OR BEFORE A REPAIR 1 Empty the water 2 Open the machine head and let 3 Turn the machine "OFF" by tank and put it in the used capsule be ejected. Close pushing the lever down for 3 place. -
Page 19: Descaling
DESCALING ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT “MACHINES” SECTION NOTE: Duration: Approximately 20 minutes. CAUTION: Read the Safety Precautions on the descaling package. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available through the Nespresso Club to avoid damage to your machine. - Page 20 DESCALING ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT THE “MACHINES” SECTION NOTE: 7 Choose function by pressing the lever 8 Place a recipient Choose function within 2 down: (minimum volume: minutes or else the machine will go back to - 1 time for “Descaling”...
- Page 21 12 When ready, push the button to rinse the machine. Machine will stop automatically when complete. ORANGE light blinking once every 2 seconds confirms the descaling process is completed. The procedure can be stopped at any time by pushing the button. 13 To exit descaling mode, 14 GREEN steady light 15 Descaling is completed.
-
Page 22: Button Indicators/Blinking Summary
BUTTON INDICATORS/BLINKING SUMMARY O˝ 1˝ 2˝ NO LIGHT No light on the button Machine OFF see point 1* ➔ GREEN LIGHT - NORMAL USE Steady light Ready mode Regular blinking: Once/second Heating up Slow rotation Capsule bar code reading Fast rotation Coffee preparation Blink three times Programming is confirmed... - Page 23 O˝ 1˝ 2˝ RED LIGHT - WARNING OR ERROR Blink two times and then back to ORANGE blinking Error while special function running see point 19* ➔ Blink three times every 2 seconds in between a steady RED Machine head in unknown position see point 16* ➔...
-
Page 24: Troubleshooting
TROUBLESHOOTING ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT THE “MACHINES” SECTION ➔ The machine has turned “OFF” automatically; push the button to turn the machine “ON”. 1. No light on the button. ➔ Check the mains, voltage, and fuse. ➔... - Page 25 RED LIGHT ➔ Descaling needed: Machine can be operated when alert appears only a few times after this alert before descaling becomes necessary. 13. Half GREEN and Half RED steady light. ➔ See paragraph on “Descaling”. 14. RED light blinking continuously and the machine head ➔...
-
Page 26: Contact The Nespresso Club
CONTACT THE NESPRESSO CLUB Should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club. Contact details for your nearest Nespresso Club can be found in the welcome material in your machine box or at nespresso.com DISPOSAL AND ENVIRONMENTAL PROTECTION This appliance complies also with the Directive 2012/19/EU. -
Page 27: Limited Guarantee
LIMITED GUARANTEE Krups guarantees this product against defects in materials and workmanship for a period of two years from the date of purchase. During this period, Krups will either repair or replace, at its discretion, any defective product at no charge to the owner. Replacement products or repaired parts will be guaranteed for only the unexpired portion of the original guarantee or six months, whichever is greater. - Page 28 www.nespresso.com 11065_UM_ARES_C_Krups.indd 28 16.05.17 14:03...
