Connect Hose Fitting And Adjust Floats - Polaris Quattro Owner's Manual

4

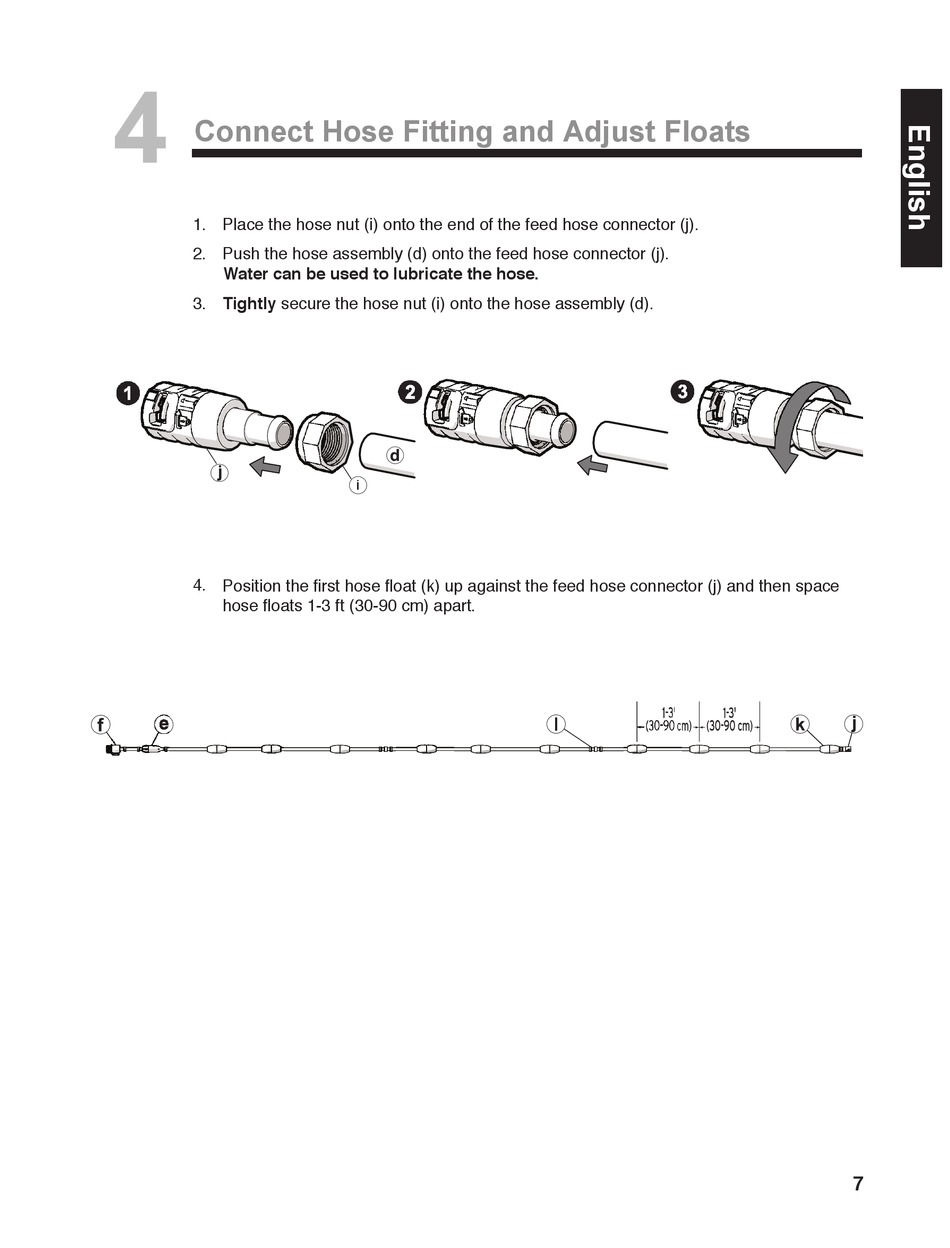

Connect Hose Fitting and Adjust Floats

1. Place the hose nut (i) onto the end of the feed hose connector (j).
2. Push the hose assembly (d) onto the feed hose connector (j).
Water can be used to lubricate the hose.
• Tightly secure the hose nut (i) onto the hose assembly (d).
3.
4.
3. Position the first hose float (k) up against the feed hose connector (j) and then space
hose floats 1-3 ft (30-90 cm) apart.
i
1-3' 1-3' 1-3' 1-3'
(30-90 cm) (30-90 cm) (30-90 cm) (30-90 cm)
7
