I M P O R TA N T I N F O R M AT I O N
SERIAL NUMBER

Advertisement

   Also See for Polaris Vac-Sweep 480 PRO

   Summary of Contents for Polaris Vac-Sweep 480 PRO

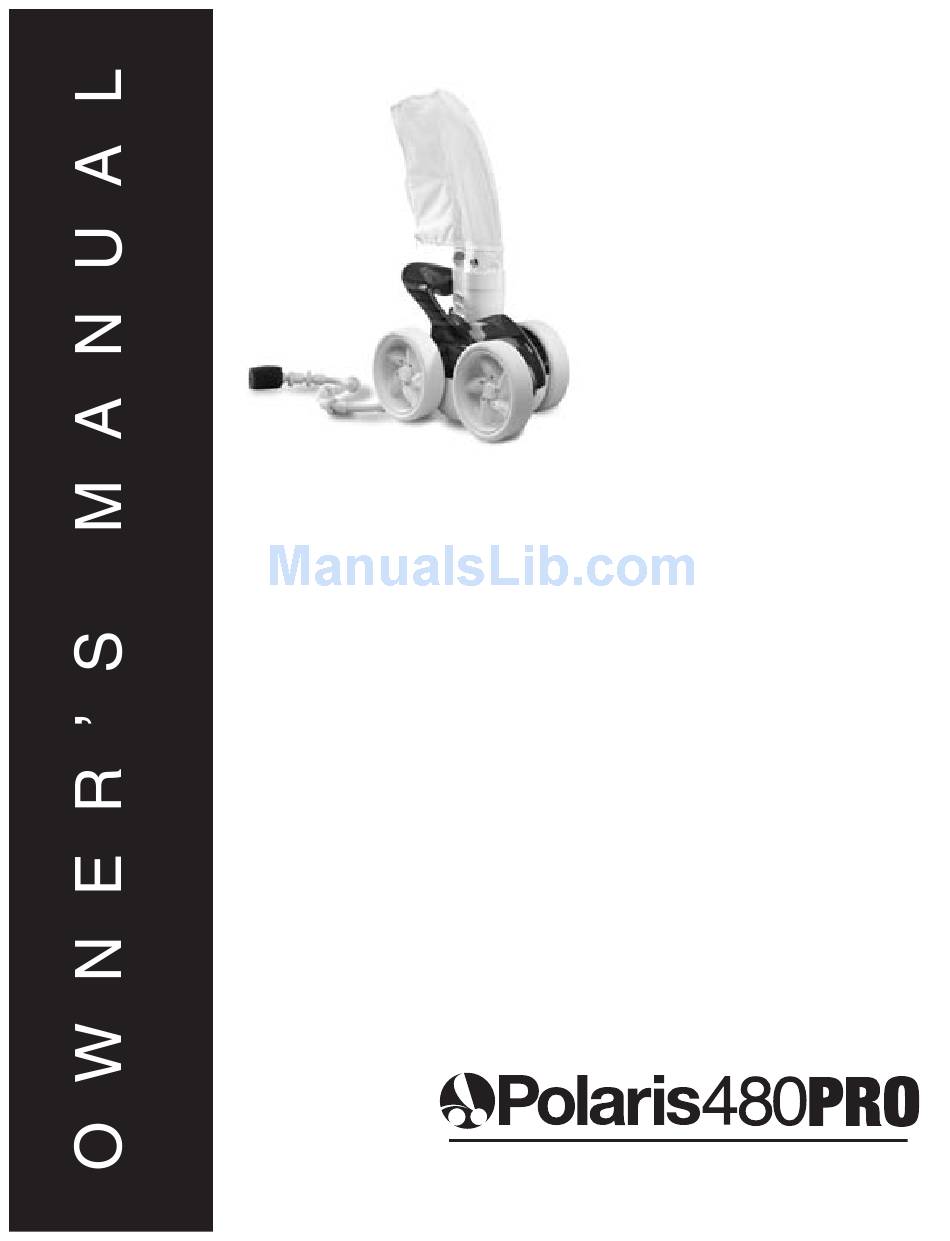

  • Page 1

    I M P O R TA N T I N F O R M AT I O N SERIAL NUMBER...

  • Page 2: Important Information

    Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Polaris is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

  • Page 3

    Polaris dealer or authorized service center. Always insist on genuine Polaris replacement parts. Non-Polaris parts are not made to our specifications. They may have an adverse effect on the operation of your Polaris or may even damage it.

  • Page 4

    Quick Installation Instructions Four quick steps to install and get maximum performance from the Polaris 480 PRO: • Install the Universal Wall Fitting (UWF) with Quick Disconnect • Adjust feed hose to fit pool length • Assemble the cleaner • Check for proper wheel RPM (revolutions per minute) Install the Universal Wall Fitting Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2”...

  • Page 5

    Check the hoses, connections and swivels for leaks that cause loss of water pressure. • If an adjustable gate valve is installed on the booster pump or the Polaris cleaner line, open it completely so water can flow freely to the Polaris.

  • Page 6: Thrust Jet Adjustment, Sweep Hose Adjustment

    The climbing ability of the Polaris depends on the pool’s shape and water pressure or flow. The Polaris climbs best in pools without sharp angles or curves in the transition from the pool floor to the pool wall.

  • Page 7: Backwashing The Pool Filter, Storage And Winterizing

    Polaris. Storage and Winterizing Never store the Polaris in direct sunlight. When storing for the winter, drain out all the water (freeze damage is not covered under the warranty). Remove the UWF from the pool wall using the UWF Removal Tool (part #10-102-00) included with the cleaner.

  • Page 8: Troubleshooting

    Troubleshooting If the Polaris cleaner regularly displays Action: Polaris doesn’t back up. the following actions, adjustments may be Solution: 1. Verify the back-up valve necessary to restore performance. Refer to is cycling. exploded parts diagram for part references. 2. Check the wheel RPM.

  • Page 9

    5. If an adjustable valve is installed, improved performance, contact the adjust it to reduce the amount of Polaris dealer who sold you the cleaner water flow to the cleaner. or call Customer Service. 6. Add a sweep hose weight (order part #B2).

  • Page 10

    Exploded Parts Diagram Pool Wall 33 34 Feed Hose Feed Hose 10-ft. 10-ft. Leader 10-foot Hose To The Polaris 16 15 No. Part# Description Qty No. Part# Description Qty No. Part# Description 48-135 All Purpose Bag* 17 48-006 Chain Kit...

  • Page 11

    Pool Wall 32 34 35 36 38 39 Feed Hose Feed Hose 10-Ft. 10-Ft. Leader 10-Foot Hose To The Polaris No. Part# Description Qty No. Part# Description Qty No. Part# Description 48-135 All Purpose Bag* 17 48-031 Wheel 34 6-505-00...
