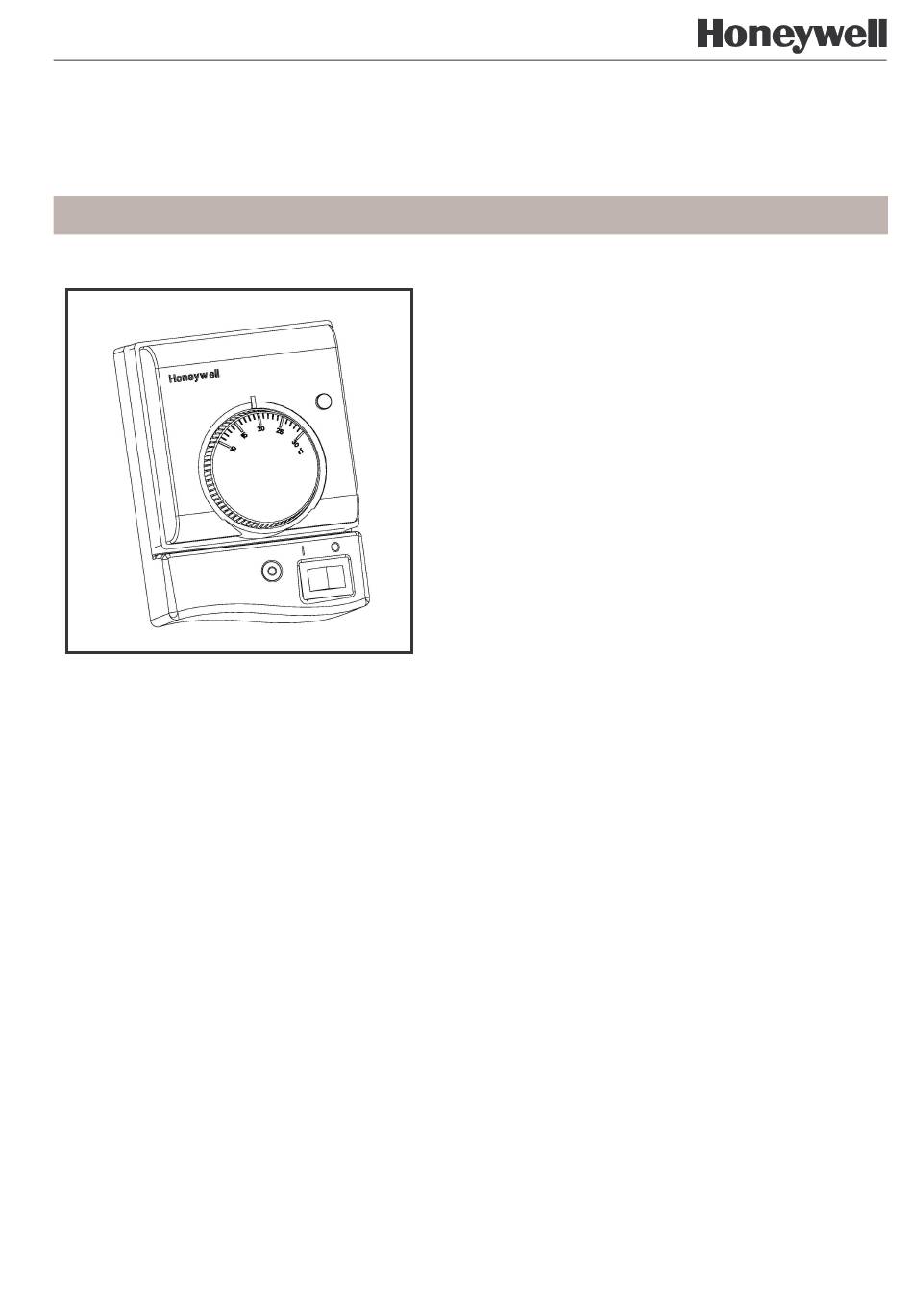

APPLICATION

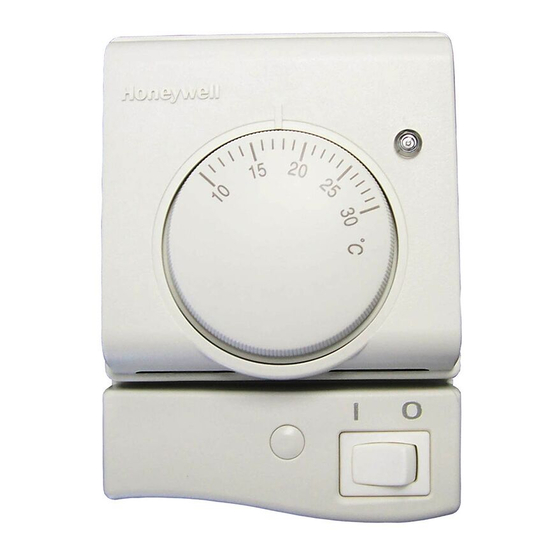

The T4360G thermostat with on/off switch
provides control of 240Vac heat only systems with
a maximum current of 16A.
The T6360D thermostat with on/off switch
provides control of 240Vac cool only systems.
The T6360E thermostats provide control of 240Vac
heat pump systems with or without fan control.
® Registered Trademark
Copyright © 2005 Honeywell Inc. • All Rights Reserved
T4360G, T6360D, T6360E
Line Voltage Thermostat

FEATURES

Models available for heat only, cool only and
heat pump systems.
Fan models for air circulation.
Three-speed fan model to improve circulation
and temperature control.
16A model available for direct switching of
high current loads.
Indicator lamp on all models.
