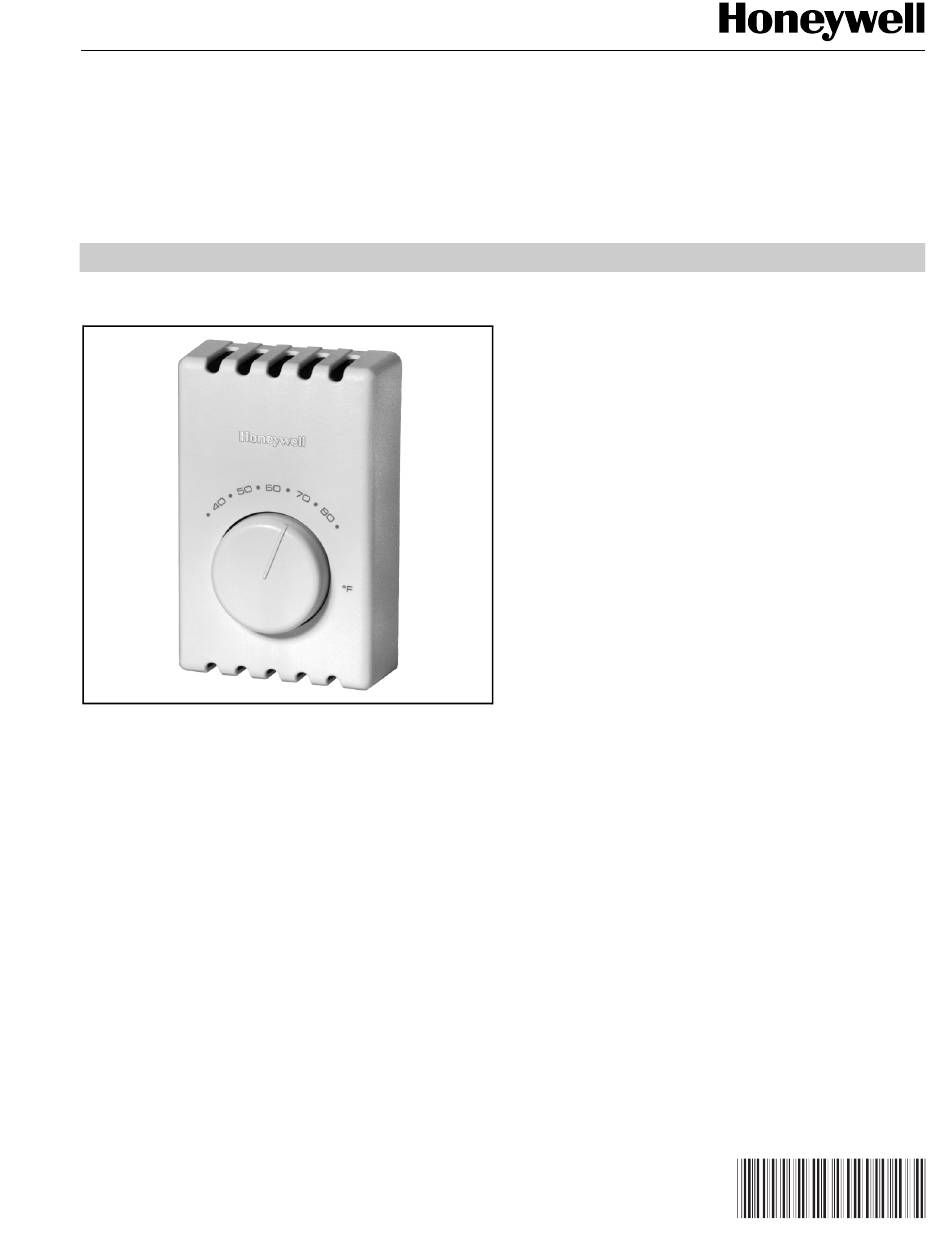

GENERAL
The T410A,B Electric Heat Thermostats provide line voltage
control of electric heating equipment. Snap-action switch
makes heating circuit on temperature fall.
SPECIFICATIONS
IMPORTANT
The Specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed specifica-
tions. Also, this product is tested and calibrated
under closely controlled conditions, and some minor
differences in performance can be expected if those
conditions are changed. For exact engineering spec-
ifications, contact your Honeywell sales representa-
tive.
® U.S. Registered Trademark
Copyright © 2001 Honeywell • All Rights Reserved
Electric Heat Thermostats
FEATURES
• Energy efficient and economical.
• UL listed up to 5 kW at 277 Vac.
• ncludes long-lasting Micro Switch™ mechanism.
• Rugged, plastic mounting base one-piece cover.
• Contemporary white finish complements any decor.
• Replaces virtually any wall-mounted electric heating
thermostat.
Models:

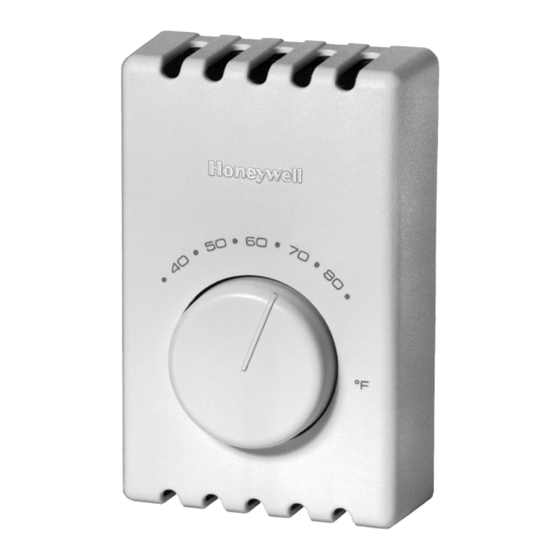

T410A Electric Heating Thermostat: Spst switching heating
circuit makes on temperature fall.
T410B Electric Heating Thermostat: Dpst switching; makes
double line break with setting dial at OFF position; heating
circuit makes on temperature fall.
Electrical Ratings (Noninductive Resistive Rating):
22A at 120/208/240 Vac; 19A at 277 Vac.
Wiring Connections:
6 in. (150 mm) copper leadwires, suitable for connecting to
aluminum wiring if approved CO/ALR solderless wire con-
nectors are used.
Sensing Element:
Bimetal.
Setpoint Adjustment:
Setting dial on the face of the thermostat.
Temperature Range:
40° to 80°F (5° to 25°C).
T410A,B
PRODUCT DATA
68-0145EF
