PWM Control
For setups without flight control and receivers that do not have CRSF capability, such as R/C cars or boats,
we have enabled a control for the button via PWM control. You can connect a PWM channel to the CRSF
RX1 port and simply move a switch from low to high to press and high to low to depress the button. The
single PWM channel is the most simple way of using a video transmitter.
The menu control is identical to using the button. Follow the instructions below to set up the video
transmitter and OSD.

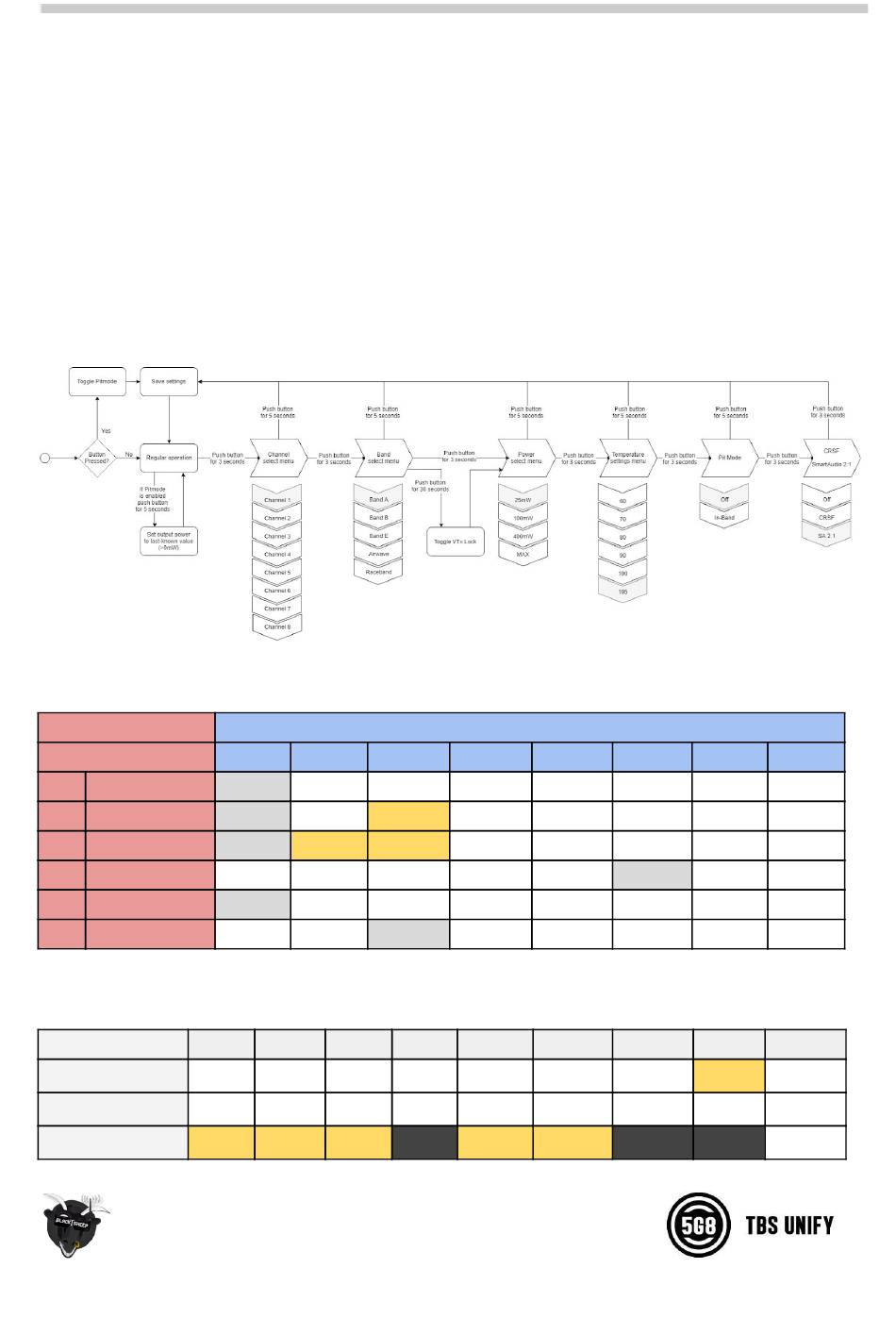

Button menu structure
Menu Table
RED LED
1x Channel
2x Band
3x Power Level
4x Limit Temp.
5x PIT Mode
6x CRSF/ SA
Frequency Table
Channel 1
Band A 5865
Band B 5733
Band E 5705
BLUE LED
1x 2x 3x
1 2 3
A B E
25mW 100mW 400mW
60 70 80
OFF IN-BAND
OFF CRSF SA
2 3
5845 5825
5752 5771
5685 5665
4x 5x
4 5
Airwave Race
90 100
4 5 6
5805 5785 5765
5790 5809 5828
5645 5885 5905
6
6x 7x 8x
6 7 8
105
7 8
5745 5725 MHz
5847 5866 MHz
5925 5945 MHz
