TBS GREENHORN 5.8GHz
25mW Video Transmitter

Introduction

For optimal operation we suggest to use this transmitter together with the TBS CORE. The TBS CORE
comes with cables that allow plug & play installation.

Installation

Installation of the transmitter is easy. It comes with a pigtail connector that you can use to make your
own cables. The pinout of the cable is according to following color scheme:
Yellow = Video
White = Audio
Black = GND
Red = 5V+

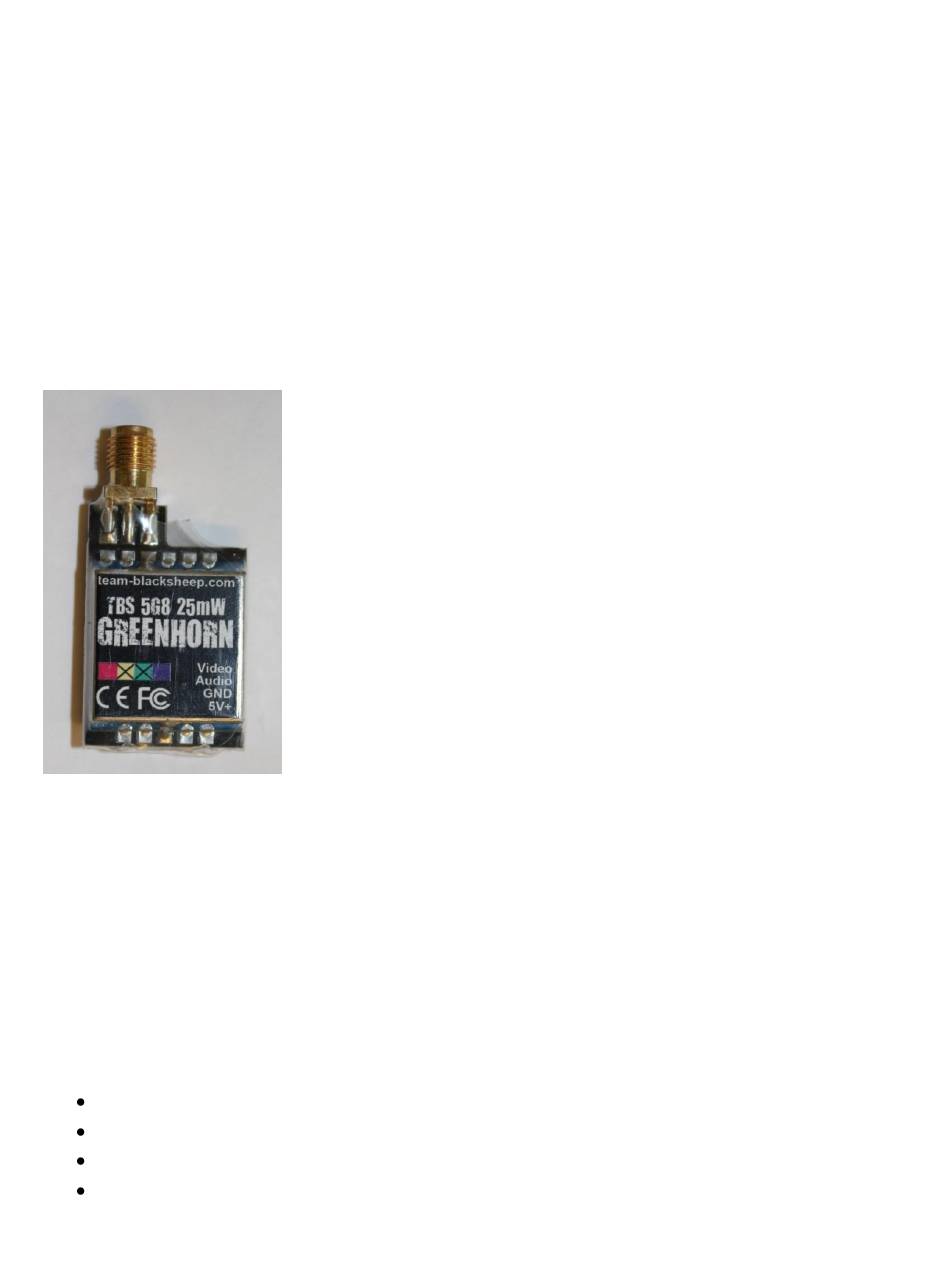

The TBS GREENHORN 5.8GHz 25mW video transmitter is aimed at
the beginner FPV pilot. It's a license-free, CE & FCC certified,
medium range video transmitter with solid video signal for up to
500m (1/2 mile) on stock antennas. Directional video receiver
antennas increase range and are available from various sources.
It operates off a 5V powersource and is compatible with all
Lawmate transmitter module pinout. This allows you to switch the
transmitter according to your planned flight requirement and
flying distance.
