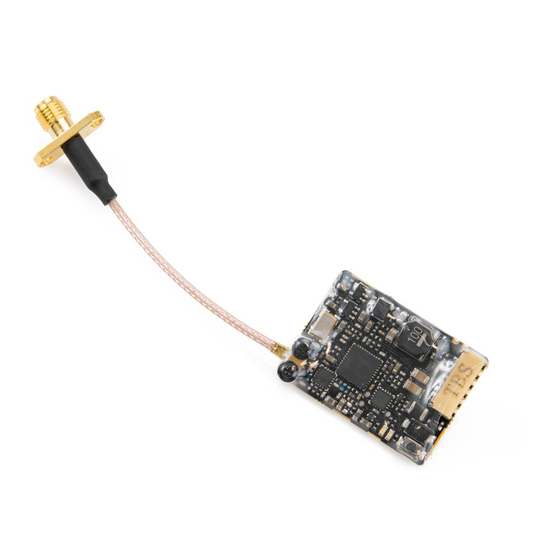

TBS UNIFY PRO 5G8 (HV) Video Tx
High quality, license‐free, ultra‐tiny, race ready
Revision 2016-03-01

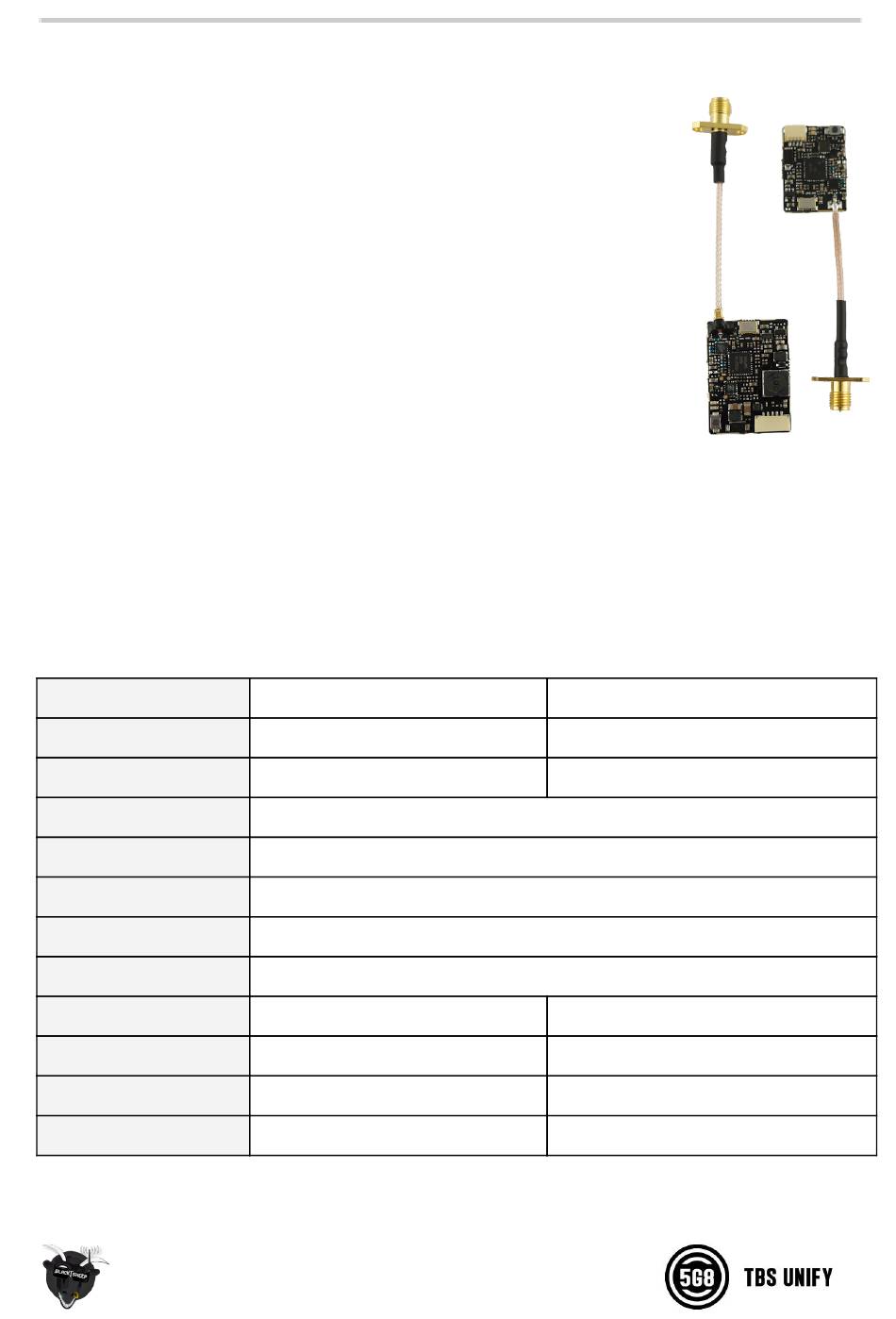

The TBS Unify is a new line of video transmitters, optimized for compatibility across
multiple "platforms" and reduced to a small form factor, completely redesigned
and tailored for FPV use. Perfect for small multi rotor platforms or in applications
where flight times are critical.
TBS UNIFY PRO 5G8 key features
World's lightest 40ch video transmitter line
Extremely powerful - with integrated Heatsink
25mW* (up to 800mW with HAM license)
One button frequency and power setup
OSD configuration using TBS Smartaudio (PNP PRO OSD)
RP-SMA connector with frame mounting holes integrated
5V input or 2-6S input with 5V output versions available
Solder-on module dimensions available on request
Specifications
Input voltage:
Extra features:
Output power:
Channels:
Power consumption
Range:
Antenna connector:
Port connector:
Dimensions:
Weight:
Kit contents:
* requires HAM license, special unlocking procedure!
TBS UNIFY PRO 5G8
Regulated 5V
SmartAudio V1.0
13dBm (25mW), 23dBm (200mW*), 27dBm (500mW*), 29dBm (800mW*)
24Ch, 5733MHz - 5866MHz and 40ch, 5658MHz - 5917MHz *
25mW: 250mA. 200mW: 320mA. 500mW: 460mA. 800mW: 600mA
Up to 4km with omnidirectional RHCP antennas
RP-SMA Female
JST-SH socket, 4 pin
17 (H) x 24 (W) x 4 (D) mm
5g excluding antenna
1x TBS Unify 5G8, 1x 5V cable
TBS UNIFY PRO 5G8 HV
6V - 26V (2S - 6S), peak max 31V
SmartAudio V2.0, CleanSwipe, PitMode
JST-GH, 6pin
22 (H) x 30 (W) x 4 (D) mm
7g excluding antenna
1x TBS Unify 5G8 HV, 1x VTx/Cam cable
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBS UNIFY PRO 5G8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Team Blacksheep TBS UNIFY PRO 5G8

  • Page 1 TBS UNIFY PRO 5G8 (HV) Video Tx High quality, license‐free, ultra‐tiny, race ready Revision 2016-03-01 The TBS Unify is a new line of video transmitters, optimized for compatibility across multiple “platforms” and reduced to a small form factor, completely redesigned and tailored for FPV use.
  • Page 2: Table Of Contents

    LED Flash Codes for Channel, Band and Power Menu Table Frequency Table Video Transmitter Pinout TBS UNIFY PRO 5G8 TBS UNIFY PRO 5G8 HV Connection to DIY drone build Connection to TBS CORE products TBS CORE PRO Control Channel, Band and Power control...
  • Page 3: Button Menu

    Button Menu There are categories in the menu, and settings. Pressing the button for 3 seconds will toggle between categories, pressing it for a short time toggles between settings. To enter the menu, hold the button for 3 seconds. LED colors will signal the state of the menu, for an overview see the table below. Channel select mode Enter menu by pressing the button for 3s.
  • Page 4: Led Flash Codes For Channel, Band And Power

    LED Flash Codes for Channel, Band and Power The TBS UNIFY PRO 5G8 signals Channel, Band and Power levels using a startup sequence of LED codes. The same sequence is also repeated in the menu to make it unified. First the red LED flashes to indicate the item being shown.
  • Page 5: Menu Table

    Menu Table RED LED BLUE LED Channel Band Airwave Race Power Level*   Frequency Table Channel Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885...
  • Page 6: Video Transmitter Pinout

    Despite being plug and play with the TBS CORE , TBS CORE PNP PRO , PNP25, PNP50 - the UNIFY PRO can also be directly soldered to cameras or custom power distribution boards. See the pinout below: TBS UNIFY PRO 5G8 HV The UNIFY PRO 5G8 HV comes with wires ready to be assembled into your own projects. Should you want to connect it to TBS products such as the TBS CORE , TBS CORE PNP PRO, PNP25/PNP50, etc, you will need to modify the camera pinout to match the VTx input socket.
  • Page 7: Tbs Core Pro Control

    TBS CORE PRO Control The TBS UNIFY PRO was built with the TBS CORE PRO in mind. Controlling your drone via the R/C joystick was a concept first introduced by the BrainFPV FC. TBS has extended this functionality to the entire PowerCube, allowing you to change not only the FC settings but also the video transmitter channels and output power.
  • Page 8: Custom Frequencies

    The video frequency does not change instantly. It will wait for you to exit the menu and then change to the new frequency as indicated in the last line. Custom frequencies The latest CORE PRO software unlocks something truly revolutionary. Finding empty channels - or ones that are not accidentally stomped upon - is nearly impossible with the big number of new FPV pilots storming into the hobby.
  • Page 9: Technology Showcase

    Technology Showcase PitMode A new feature introduced with the TBS UNIFY PRO 5G8 HV is PitMode. It allows racers to power up their video transmitters during race events without interfering with other racers. PitMode can be entered either by pushing down the button while powering up your drone, or by enabling PitMode via OSD.
  • Page 10 SmartAudio V2.0. The new version supports control for the new features (e.g. PitMode). SmartAudio is a single-wire UART protocol, running over the Audio wire. If you are a OSD or VTx developer interested in adding support for SmartAudio, please create a support ticket with us so we can supply you with the technical documentation: http://team-blacksheep.freshdesk.com/ ●...
  • Page 11: Declaration Of Conformity

    Declaration of Conformity FCC Information FCC Label Compliance Statement This device complies with ANSI C63.4 and Part 15 Subpart C Paragraph 15.249 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2.
  • Page 12: Good Practices

    Good practices We have compiled a list of all of practices which have been tried and tested in countless environments and situations by the TBS crew and other experienced FPV pilots. Follow these simple rules, even if rumors on the internet suggest otherwise, and you will have success in FPV. ●...
  • Page 13 ● Try to achieve as much separation of the VTx and R/C receiver as possible to lower the RF noise floor and EMI interference. ● Do not buy the cheapest equipment unless it is proven to work reliably (e.g. parts falling off, multitudes of bug fix firmware updates, community hacks and mods are a good indicator of poor quality and something you do NOT want to buy for a safe system).
