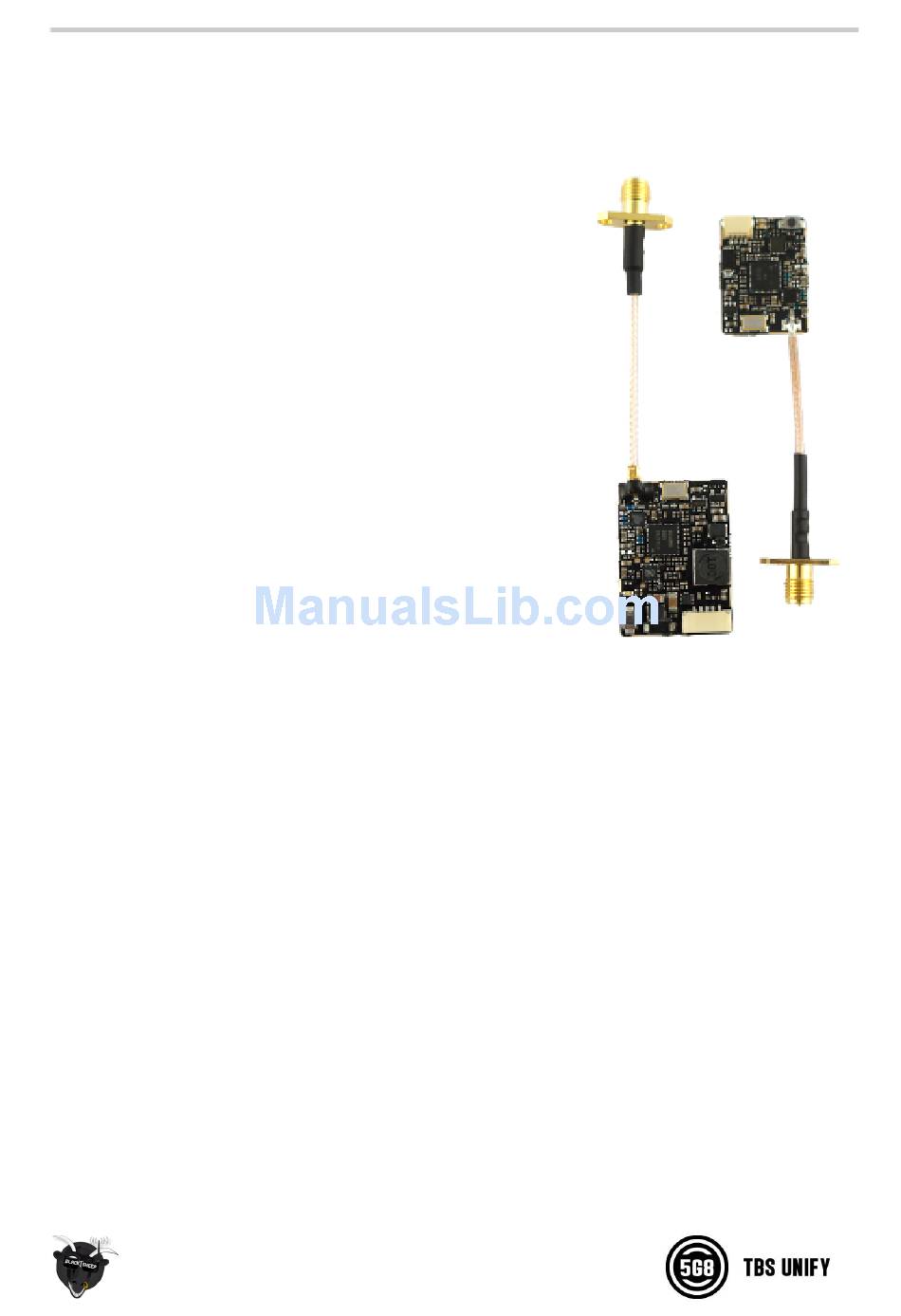

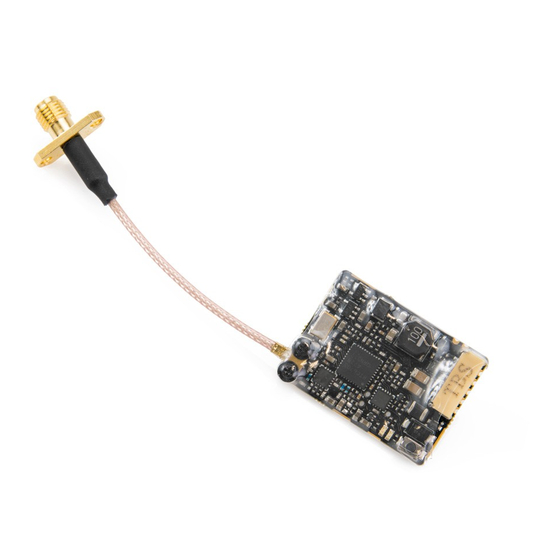

TBS UNIFY PRO 5G8 (HV) Video Tx
High quality, license-free, ultra-tiny, race ready vtx
Revision 2017-08-15
The TBS UNIFY is a new line of video transmitters, optimized for
compatibility across multiple "platforms" and reduced to a small form
factor, completely redesigned and tailored for FPV use. Perfect for
small multi rotor platforms where flight times are critical.
Key features
•
World's lightest 40/48ch video transmitter line
•
Extremely powerful - with integrated heatsink
•
25mW (up to 800mW with HAM license*)
•
One button frequency and power setup
•
OSD configuration using TBS SmartAudio (via PNP PRO OSD)
•
RP-SMA connector with frame mounting holes integrated
•
5V input or 2-6S input with 5V output versions available
•
Solder-on module dimensions available on request
•
NEW: improved noise filtering on HV version (Batch >1004)
•
NEW: optimized heat dissipation on HV version (Batch >1004)
1
Advertisement
Table of Contents
Related Manuals for Team Blacksheep TBS UNIFY PRO 5G8
Summary of Contents for Team Blacksheep TBS UNIFY PRO 5G8
- Page 1 TBS UNIFY PRO 5G8 (HV) Video Tx High quality, license-free, ultra-tiny, race ready vtx Revision 2017-08-15 The TBS UNIFY is a new line of video transmitters, optimized for compatibility across multiple “platforms” and reduced to a small form ...
-
Page 2: Specifications
Specifications TBS UNIFY PRO V2 5G8 TBS UNIFY PRO 5G8 HV TBS UNIFY PRO HV RACE Input voltage: Regulated 5V 6V to 26V (2S - 6S) VBat, peak max 31V Voltage peaks max 6.0V!!! Please connect directly to battery voltage! ... - Page 3 * requires HAM license, special unlocking procedure! ** only for RACE version where authorization has been granted 3 ...
-
Page 4: Table Of Contents
Frequency Table OSD control via CORE PRO Channel, Band and Power control Custom frequencies Video transmitter pinout TBS UNIFY PRO V2 5G8 unit TBS UNIFY PRO 5G8 HV (race) unit Technology showcase PitMode CleanSwitch SmartAudio Declaration of Conformity FCC Information ... -
Page 5: Button Menu Control
Button menu control There are categories in the menu, and settings. Pressing the button for 3 seconds will toggle between categories, pressing it for a short (1 second) press toggles between settings. To enter the menu, hold the button for 3 seconds. -
Page 6: Button Menu Structure
LED Flash Codes for Channel, Band and Power The TBS UNIFY PRO 5G8 signals selected channel, band and power levels using a startup sequence of LED codes. The same sequence is also repeated in the menu to make it unified. First the ... -
Page 7: Installation / Mounting
Installation / Mounting When installing the Unify Pro, please ensure adequate airflow and - most importantly - heat transfer. This means mounting the Unify Pro with a bit of pressure against a flat piece of carbon will give you the best results. -
Page 8: Menu Table
Menu Table RED LED BLUE LED 1x 2x 3x 4x 5x 6x 7x 8x 1x Channel 1 2 3 4 5 6 7 8 2x Band A B E Airwave Race Low Race 3x Power Level 25 ... -
Page 9: Osd Control Via Core Pro
OSD control via CORE PRO The TBS UNIFY PRO was built with the TBS CORE PRO in mind. Controlling your drone via the R/C joystick was a concept first introduced by the BrainFPV FC. TBS has extended this functionality to the entire POWERCUBE, allowing you to change not only the flight controller settings but also the UNIFY video ... -
Page 10: Custom Frequencies
The video frequency does not change instantly. It will wait for you to exit the menu and then change to the new frequency as indicated in the last line. Custom frequencies The latest CORE PRO software unlocks something truly revolutionary. Finding empty channels - or ones that are not accidentally stomped upon - is nearly impossible with the big number of new FPV pilots ... -
Page 11: Video Transmitter Pinout
See the pin-out below: TBS UNIFY PRO 5G8 HV (RACE) The UNIFY PRO 5G8 HV comes with wires ready to be assembled into your own projects. Should you want to connect it to TBS products such as the TBS CORE , TBS CORE PNP PRO, PNP25/PNP50, etc, you will need ... -
Page 12: Technology Showcase
Technology showcase PitMode A new feature introduced with the TBS UNIFY PRO 5G8 HV is PitMode. It allows racers to power up their video transmitters during race events without interfering with other racers and still having the ability to change VTX settings or do some testing. ... -
Page 13: Cleanswitch
All UNIFY PRO 5G8 video transmitters will remain in their lowest power output (25mW for UNIFY PRO 5G8, less than 0.1mW for TBS UNIFY PRO 5G8 HV) while changing channels and powering up. This ensures interruption-free racing, even with multiple video transmitters changing channels, or powering up. ... -
Page 14: Declaration Of Conformity
Declaration of Conformity FCC Information FCC Label Compliance Statement This device complies with ANSI C63.4 and Part 15 Subpart C Paragraph 15.249 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. -
Page 15: Good Practices
Good practices We have compiled a list of all of practices which have been tried and tested in countless environments and situations by the TBS crew and other experienced FPV pilots. Follow these simple rules, even if rumors on the internet suggest otherwise, and you will have success in FPV. ... - Page 16 in RF-noisy areas). More tx power causes more issues with RF on your plane. 500mW is plenty of power! Try to achieve as much separation of the VTx and R/C receiver as possible to lower the RF noise ●...
