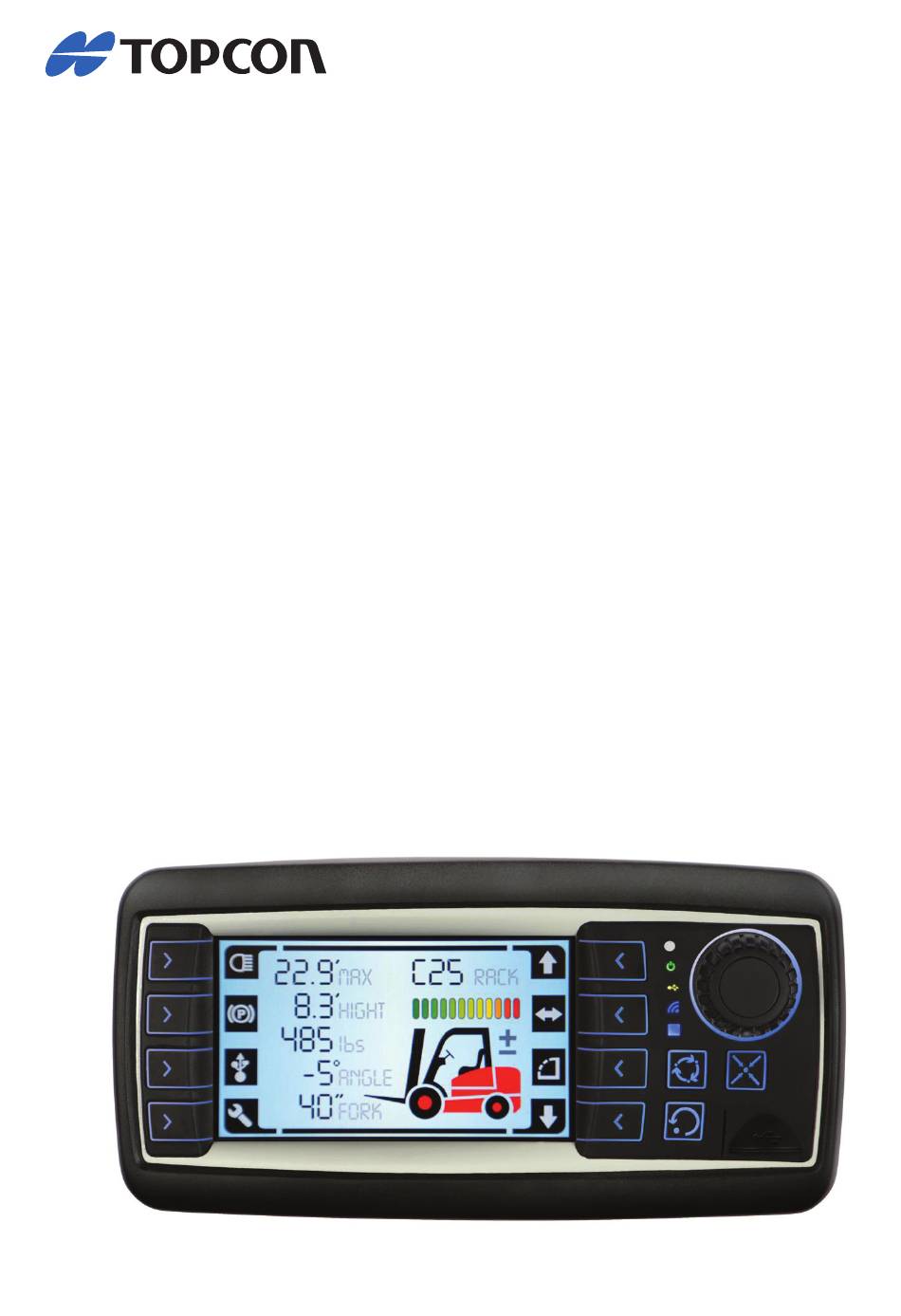

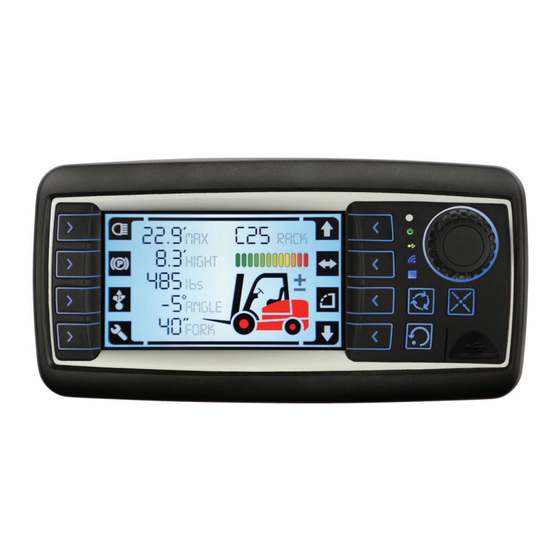

- Page 1 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com Technical Data Sheet OPUS A3 STANDARD Full 29.05.2019 Errors and technical changes excepted...
-
Page 2: General Information
3. Do not mount the device under the use of vio- tacting dl-opus-info@topcon.com. Only properly lence because it can cause damage. trained personnel with the correct qualification are 4. The device must be mounted by trained per- allowed to handle the device. - Page 3 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com Dimensions Housing Mounting Plastic housing, colored light grey (RAL 7035) • Landscape or portrait with black rubber frame. • Standalone • In-dash...
- Page 4 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com 3 Display Type: TFT Color Graphic LCD with LED Colors: 16.7 Mio. backlight Brightness: typ. 400 cd/m² Size: 4.3”, 95 mm (W) x 53 mm (H) Contrast Ratio: typ. 400:1...
- Page 5 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com 6 Interfaces CAN Bus Outputs 2 x CAN-Interfaces according to ISO 11898, CAN- 3 digital outputs specification 2.0 B active, up to 1 Mbit/s (default Short circuit protection: Up to 36 V...
- Page 6 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com 8 Software Operating System Linux Kernel 3.0.0 or higher Application Programming • OPUS Projektor • Codesys-Tools (3.X) • ISO-VT • C/C++ 9 Testing and Verification CE-Compliance Mechanical EU Directive 2014/30/EU (EMC) according to • ISO 16750-3: Road Vehicles –...
- Page 7 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com 10 Pinout Main connector pinout Pin. No. Assignment Description supply voltage +; terminal 30 Ignition Input ignition input; terminal 15 supply voltage - ;terminal 31 CarGND Car GND n. c. Not connected n. c. Not connected n. c. Not connected CAN1H...
- Page 8 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com Video connector pinout Ethernet connector pinout Round Connector, 4 pins, M12, Round Connector, 5 pins, M12 acc. To IEC 61076-2-101 VidSig+ Mirror Camera+ Camera - VidSig GND Video connector, M12, female, 5 pins, b-coded,...
- Page 9 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com Mounting kit (RAM® Mount 1,5‘‘ , adapter cover) (OPUSBERM004) 1x RAM® - 101 U 1x Adapter for RAM® mounting system 7x Cylinder head bolt M5x12 DIN 912 In-Dash mounting frame (OPUSA3ZBEB001)
- Page 10 Industriestraße 7 . 65366 Geisenheim . Germany www.topcon-electronics.de . dl-opus-info@topcon.com 26 pin connector, contact pins, dummy plugs (OPSVF26001)
