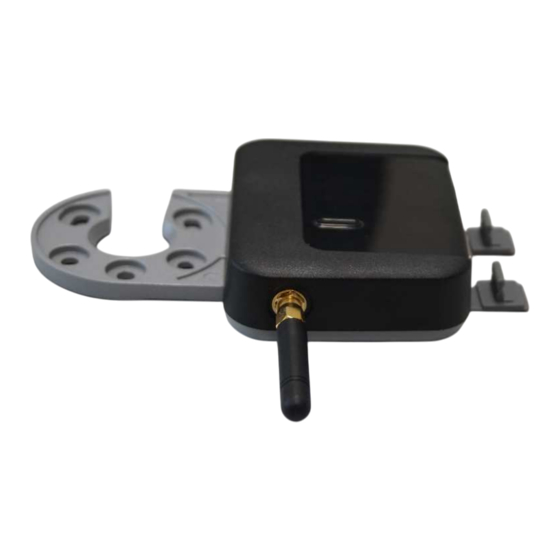

CL10 User Manual
Part Number: 1033349-01
Rev Number: A
© Copyright Topcon Precision Agriculture
All contents in this manual are copyrighted by Topcon. All rights reserved. The information contained
herein may not be used, accessed, copied, stored, displayed, sold, modified, published or distributed,
or otherwise reproduced without express written consent from Topcon.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-10 LTE EU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topcon CL-10 LTE EU

Summary of Contents for Topcon CL-10 LTE EU

  • Page 1 Rev Number: A © Copyright Topcon Precision Agriculture All contents in this manual are copyrighted by Topcon. All rights reserved. The information contained herein may not be used, accessed, copied, stored, displayed, sold, modified, published or distributed, or otherwise reproduced without express written consent from Topcon.

  • Page 2: General Information

    The CL10 adds cellular and Wi-Fi capability to the X-Family consoles. It allows access to the new Topcon Agriculture Platform (TAP), which is a cloud based integrated agronomic management platform. It also provides access to the XTEND feature in the Horizon console operating system.
  • Page 3 Figure 1 Figure 2 10333349-01 Rev A...
  • Page 4 Figure 3 Cover characteristics Back housing / aluminum carrier • Aluminum die cast • Supporting the venting membrane and the label field • Powder coating with structure, semi gloss, RAL 9006 Figure 4 10333349-01 Rev A...
  • Page 5 Plastic Front Cover • Plastic molded part, visible surfaces etched & polished, no painting • 3 overmolded or assembled LED windows • Supporting the mainboard with 2 sealed Amphenol USB-Type A slots with related rubber plugs • Supporting the internal antennas (self sticking) •...

  • Page 6: Technical Specifications

    The length of the harness connection cable is 350 mm including the plug. The 2 USB ports rubber protection caps are considered pugged. Technical Specifications Thermal characteristics Operating temperature The CLOUDLYNK 10 will be able to operate in accordance with the specification while exposed to a still air environment at a temperature range of -25 °C <...
  • Page 7 Vibration and shock The CLOUDLYNK 10, properly mounted and connected, will be able to operate in accordance with the specification while exposed to a 10 – 300 Hz 50 m/s2 24 hours 1 octave/min along each geometrical axis. Special care must be taken to protect the connection cable and the USB plug from vibration field. The CLOUDLYNK 10 will survive the application of 3 impulses 300 m/s2 11mS along each geometrical axis.
  • Page 8 OP Mode Mode Characteristics Current Consumption LTE (FDD) 3GPP Rel.9 Compliant Protocol Stack, RX-Diversity LARA-R2 Bands Local coverage: EU, US, Quad-Band LTE: Bands 2, 4, 5, 12 AUS,JAP (700, 850, 1700/2100 (AWS) and 1900 MHz) Approvals: Modem Tri-Band UMTS: Bands 5, 4, 2 (WCDMA/FDD 850, 1700/2100 (LTE Cat 1 (AWS) and 1900 MHz)
  • Page 9 OP Mode Mode Characteristics Current Consumption DES, 3DES (ECB, CBC), AES up to 256 bits RSA keys up to 2048 bits Elliptic curves support from 224 bits to 384 bits Secure element SE V1.3.1 SHA-1, SHA-256, SHA-384 bits (Gemalto-Cinterion) Asimmetric RSA according to ISO 9796-2 or PKCS#1 v2.1 Crypto Engine (PSS-OAEP)

  • Page 10: Installation & Setup

    TABLE 2 - Processor block diagram Supply voltage The CLOUDLYNK 10, properly connected, will be able to operate in accordance with the specification when the supply voltage will be in the range of 4,5 – 5,5 Vdc. The nominal supply voltage will be 5,0 Vdc (USB standard) Being all USB connectors intrinsically polarized, the power lines are not protected against the polarity inversion.

  • Page 11: User Interface

    User interface LED status The LEDs on the CL10 are currently not used. Product Warranty ELECTRONIC COMPONENTS -TPA warrants that the electronic components manufactured by TPA shall be free of defects in materials and workmanship for a period of two years from the original date of shipment to the dealer.
  • Page 12 7400 NATIONAL DRIVE, LIVERMORE, CA, USA 94550 Phone no: 925-245-8516 Email address: friodique@topcon.com 4.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 13: Rf Radiation Exposure Statement

    Street N.E., Calgary, AB T2E8W1 Canada Phone no: +1.403.450.4262 Email address: srosenegger@topcon.com 7. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
