SP815
PET IMMUNE PIR MOTION DETECTOR
The SP815 is a multifunction device with motion detector and temperature/humidity sensor. It uses
Passive Infra-Red (PIR) technology to detect movement in a protected area by sensing the changes of
thermal radiation caused by the moving body within or across the field of detection. Featuring dual PIR
sensor designed with dual lens technology, this detector is immune to presence of pets in the home
allowing your pet to move freely without causing false alarms.
This product is a Z-Wave Plus enabled device and is fully compatible with any Z-Wave enabled network.
The device can be set up in a Z-Wave network to communicate directly with other end devices such as
smartplugs, or to report directly to a Z-Wave controller (usually a gateway).
When the motion detector is triggered, an alarm signal will be emitted to the controller and the controller,
after receiving the signal, will perform certain action according to its settings.
The product has a built in digital temperature sensor and humidity sensor to report environmental
condition of the protected area to the controller.
This product supports the S2 security protocol that uses encrypted Z-Wave Plus messages to
communicate to other security-enabled Z-Wave Plus products. A security-enabled Z-Wave Plus
Controller must be used in order to fully utilize the security features of this product.

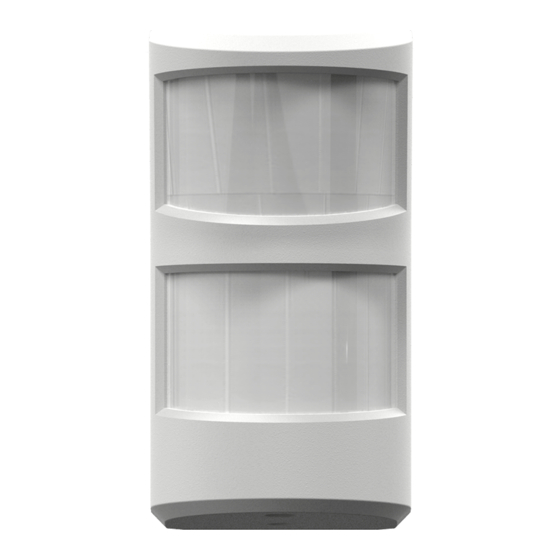

Product Overview
Front Cover
Upper Lens
Tamper button
Learn Key
LED indicator
(hidden behind lens)
Adding to Z-Wave Network
(rear cover removed)
Lower Lens
Battery Compartment
Auto Inclusion
The detector supports Auto Inclusion feature where it will automatically enter Inclusion mode when first
powered up after a factory reset.
1.
Undo and remove the fixing screw located at the bottom of the PIR detector. Then carefully open
the rear cover.
2.
Prepare the Z-wave Controller for Inclusion.
3.
Insert the battery into the battery compartment. Note the correct polarity of battery as indicated.
4.
The LED on the device will turn on. The duration of inclusion mode is 30 seconds.
5.
The Inclusion process should be completed when the LED stops blinking.
Note:
If you are connecting this unit to a Z-Wave Controller that utilizes the S2 security protocol, you may be
asked by your controller to enter a 5-digit Device Specific Key (DSK) that is unique to each unit. This can
be found in one of two places:
- on the QR code label on the back of the unit
- on the insert card inside the packaging.
If Auto Inclusion fails, refer to the Troubleshooting section regarding Manual Inclusion.
Testing
Warm-Up
It will take approximately 1 minute for the detector to warm up after the battery is inserted. During this
period the LED behind the lens will turn on. When the LED turns off, it implies warm-up procedure is
complete and the detector is ready for detection.
Note:
- This will not affect the Inclusion/Exclusion process.
- After removing batteries, wait for 5 seconds to refit batteries.
Quick Test
