EVERSPRING SP817 Manual

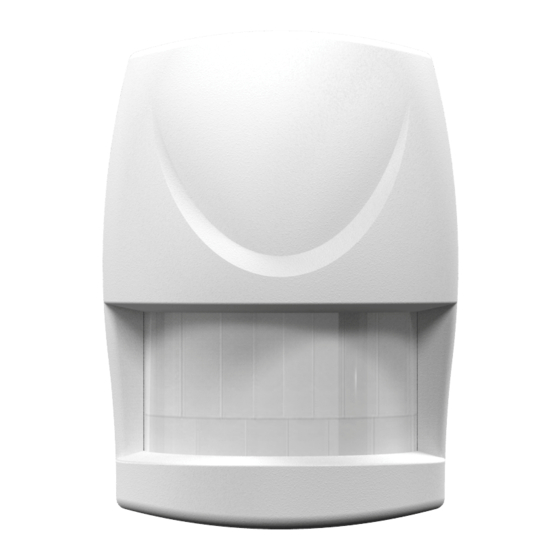

SP817 MOTION DETECTOR
TM
The SP817 Motion Detector is a Z-Wave
enabled network. The device can be set up in a Z-Wave network to communicate directly with other end
devices such as lighting controllers, or to report directly to a Z-Wave controller (usually a gateway).
This product supports the S2 security protocol that uses encrypted Z-Wave Plus messages to
communicate to other security-enabled Z-Wave Plus products. A security-enabled Z-Wave Plus
Controller must be used in order to fully utilize the security features of this product.
The Motion Detector is designed with two detecting sensors, Passive Infra-Red (PIR) sensor and light
sensor, in order to fulfill the purpose of security and home automation. When the detector is cooperated
with security appliances, it is acting as a security device by detecting changes in infra-red radiation levels.
If a person moves within or across the device field of vision, a trigger radio signal will be transmitted to
cause full alarm condition in order to frighten intruders away. Alternatively, when the detector is worked
with home automation appliances, the detector can be set to perform the role of home automation device
by detecting both changes in infra-red radiation levels and percentage of lux levels. Once night falls,
the percentage of ambient illumination is lower than preset value. If a person moves within or across the
device field of vision, a trigger radio signal will be transmitted so as to turn on the connected lightings for
better illumination.
The PIR Detector adopts a CR123 3.0V Lithium battery which under normal conditions will have typical
life in excess of 1 year. When the battery level drops to an unacceptable level,,the detector will emit
Battery report to the Z-Wave controller. When this occurs the batteries should be replaced as soon as
possible.

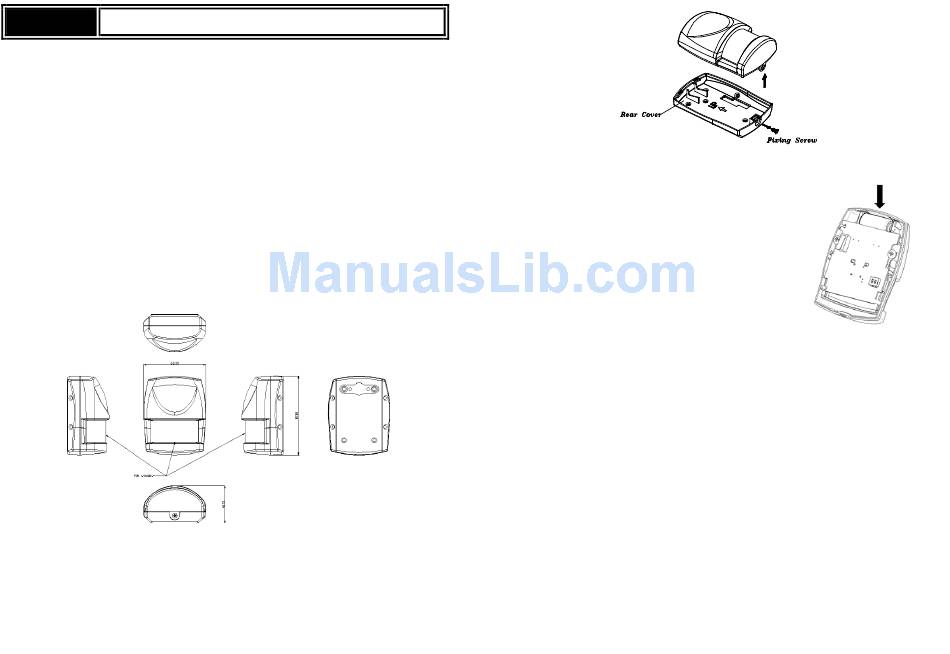

Product Overview

TM
Adding to Z-Wave Network

Auto Inclusion

The detector supports Auto Inclusion feature where it will automatically enter Inclusion mode when first
powered up after a factory reset.
1. Use a screwdriver to detach the rear cover.
enabled device which is fully compatible with any Z-Wave
TM
2. Put a Z-Wave Controller into inclusion mode.
3. Insert 1 CR123 3V batteries to the battery compartment with
the correct polarity. The LED on the device should turns ON..
4. The Inclusion process should be completed when the LED stops blinking.
5. Do not refit the rear cover yet.
Note: If Auto Inclusion fails, refer to the Troubleshooting section regarding Manual Inclusion.

Testing

Warm-Up
It will take approximately 2 minutes to warm up for the detector after battery is inserted. During this period
the LED behind the lens will turn on When the red LED turns off, it implies warm-up procedure is
completed and the detector is ready for detection.
- This will not affect the Inclusion/Exclusion process.
- After removing batteries, wait for 5 seconds to refit batteries.
Quick Test
1. With the tamper switch not being pressed after inclusion,,the unit will enters Test mode to allow the
user to test the device before it is mounted on the wall.
2. During Test mode, if movement is detected, the LED on the detector will light up once implying the
unit is working properly, and retrigger time is about 5 sec.
3. To exit the Test mode, simply press the Tamper switch for more than 10 seconds to enter Normal
mode.
4. During normal mode, when PIR is triggered, the red LED will not light up and retrigger time is based
on set up value.
