BS 217 Dimensions & Weight
Width: 19" (483 mm)
•
Height: 1RU (44.5 mm)
•
Depth: 140 mm
•
Weight: 1.75 Kg
•
0 dB is defined as 775 mV into open circuit
ASL reserves the right to alter specifications without prior notice
8.0

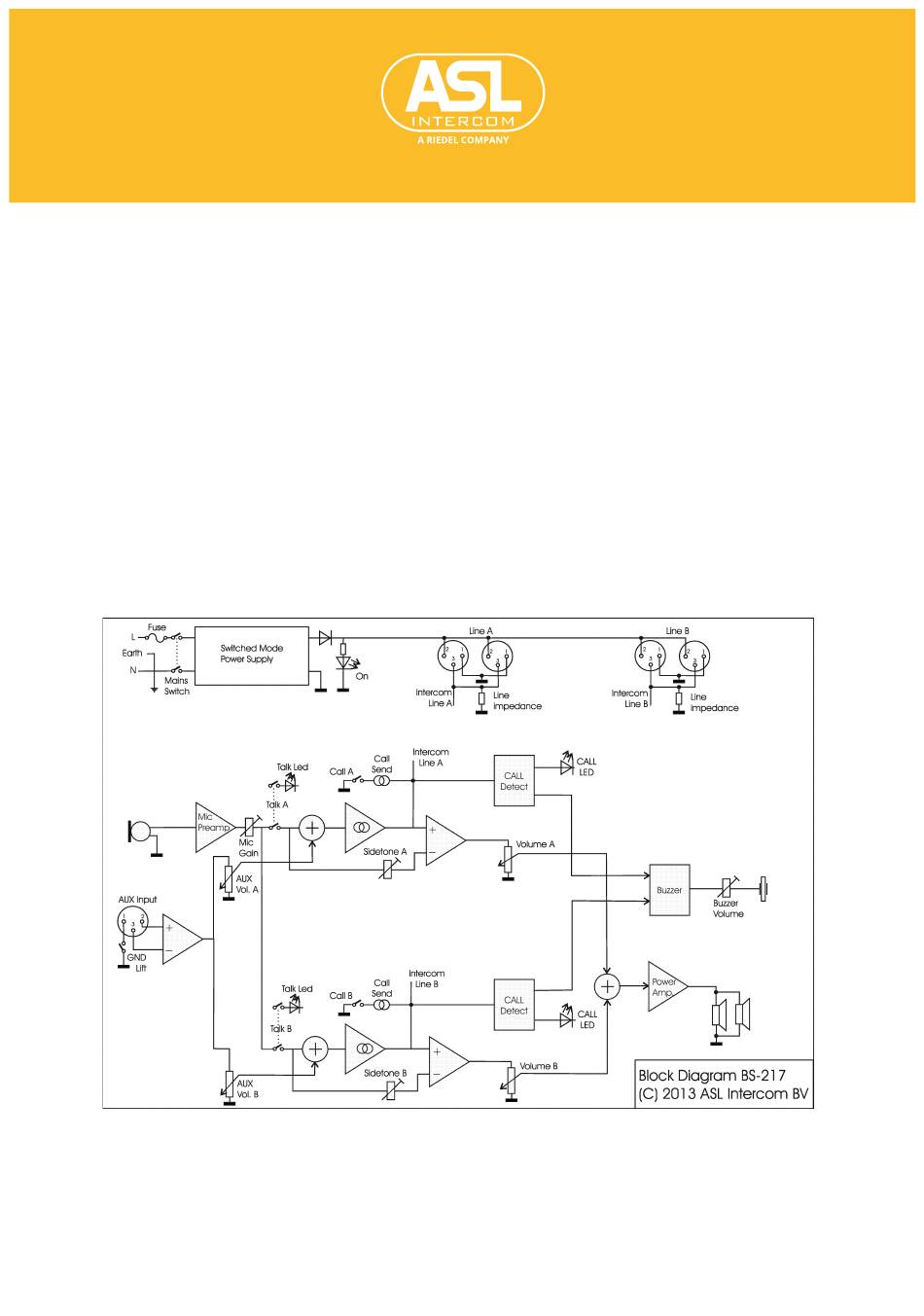

BS 217 BLOCK DIAGRAM
