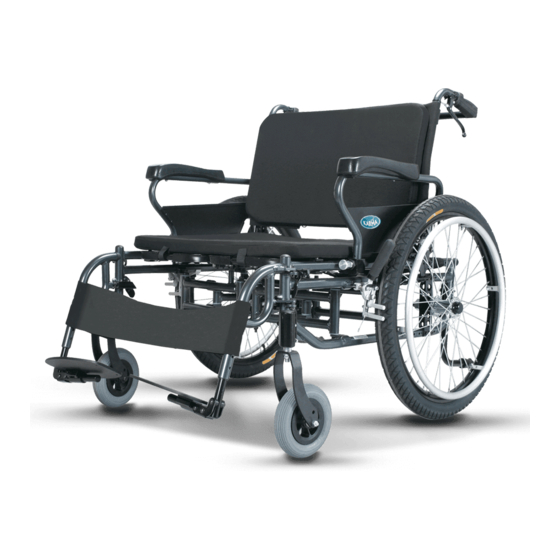

Karma KM-BT10 Owner's Manual
  1. Manuals
  2. Brands
  3. Karma Manuals
  4. Wheelchair
  5. KM-BT10
  6. Owner's manual

Karma KM-BT10 Owner's Manual

Hide thumbs Also See for KM-BT10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
E
ENGLISH

















KM-BT10




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-BT10 and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KM-BT10

Summary of Contents for Karma KM-BT10

  • Page 1 ENGLISH                                   KM-BT10      ...
  • Page 2  ...

  • Page 3: Operation Information

      Due to the change of design, some illustrations and pictures in this owners manual may correspond to the wheelchair that purchased. KARMA reserves the right to make design modifications without further notice.     WARNING:  ...
  • Page 4 YOU AND YOUR KARMA SERVICE PROVIDER l No tools are required for assembly. Your wheelchair must be installed from your authorized KARMA dealer, who is also your service provider. Unauthorized repairs, upgrades and add-ons will nullify your warranty and may lead to injury. Any adjustment for the rear wheel position should be carried out from your authorized KARMA service provider, who has the necessary service/maintenance manual for your wheelchair.
  • Page 5 KARMA guarantees, maintenance and parts you should have to pay for. l KARMA does not have an official list of service providers at this time. Please contact your authorized KARMA dealer for service. If you can’t contact your dealer, please try to find another ones.

  • Page 6: Table Of Contents

    2.3 MAXIMUM USER WEIGHT LIMIT.............4 2.4 LABELLING .......................5 3. INTENDED USE & PARTS ..................6 3.1 INTENDED USE ....................6 3.2 KM-BT10 Parts Description ...............7 4. OPERATION ......................8 4.1 Preparing For Use ..................8 4.2 Transferring In and Out................20 4.3 General Use ....................22 5.

  • Page 7: Preface

    1.3 This owner's manual is written for KARMA wheelchair: KM-BT10. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with them.

  • Page 8: Safety

    CAUTION:     l For safety, KARMA has installed the safety belts, anti-tippers to avoid any risk due to the user’s movement in the wheelchair or other environmental factors that might cause the wheelchair to tip or the person on the wheelchair to fall off (e.g. amputee). Besides, KARMA also recommends you choose additional accessories for safety enhancement.
  • Page 9       Figure 2.1 Figure 2.2     2.2.3 NAVIGATING INCLINES 2.2.3.1 Always navigate inclines with an attendant as far as possible. 2.2.3.2 When pushing a wheelchair, the attendant must go straight up a slope. If needing to go down, the attendant must walk backwards until the user is on level ground.
  • Page 10   reflecting signs on the wheelchair and/or your clothing, you will be seen more easily from drivers. 2.2.4.2 Keep away from potholes and rough terrain that might cause the castors to get stuck. (See Figure 2.5) 2.2.4.3 DO avoid huge impacts when descending a kerb.

  • Page 11: Maximum User Weight Limit

      2.3 MAXIMUM USER WEIGHT LIMIT 2.3.1 The maximum user weight limit for KM-BT10 is 250kg. For detail information, refer to section 8. SPECIFICATIONS. 2.3.2 Please note that loads exceeding maximum capacity can damage your wheelchair and cause malfunctions, which leads to a safety hazard.

  • Page 12: Labelling

      2.4 LABELLING Please carefully read all the labelling on the wheelchair before using it. DO NOT remove them and protect them for future reference.                                ...

  • Page 13: Intended Use & Parts

    (above or below knee, single or double) or other conditions easily maintain their natural centre of gravity, which could avoid tipping over backwards effectively. 3.1.8 There is a kind of armrest in the KM-BT10 for optional: Flip-back & height adjustable armrest.  ...

  • Page 14: Km-Bt10 Parts Description

      3.2 KM-BT10 Parts Description           1. Push Handle 8. Casto 2. Attend Brake 9. Backrest Cushion 3. Side Panel 10. Armrest 4. Rear Wheel 11. Seat Cushion 5. Anti-tippers 12. Calf strap 6. Brake 13. Footplate 7.

  • Page 15: Operation

    4. OPERATION 4.1 Preparing For Use   4.1.1 UNFOLDING While unfolding the KM-BT10, follow these instructions as listed below: 4.1.1.1 Stand at the side of the wheelchair as you prefer, hold the armrests and pull outwards. (See Figure 4.1) 4.1.1.2 Put your two hands on the seat pan and press it down until it is fully lowered, be careful not to get your fingers caught.
  • Page 16     4.1.2 FOLDING While folding the KM-BT10, follow these instructions as listed below: 4.1.2.1 Separate the back and seat cushions from the wheelchair. (See Figure 4.7) 4.1.2.2 Detach the calf strap.
  • Page 17       Figure 4.7 Figure 4.8 Figure 4.9                           Figure 4.10 Figure 4.11 Figure 4.12         CAUTION:   l Be careful not to get your fingers caught when folding the wheelchair.
  • Page 18     4.1.3 ADJUSTMENTS 4.1.3.1 ARMREST 4.1.3.1.1 Standard: FLIP BACK AND Detachable armrest Armrest flips back by releasing the knob bolt located at the front base of the armrest. After completing the step, you can lift the armrest backwards. (See Figures 4.13 and 4.14) .
  • Page 19 To adjust the backrest height, follow these instructions as listed below: ● Detach the armrest and backrest upholstery first. ● Use the KARMA tool provided to loosen the screws at the both bottom sides of the backrest frame. ● Adjust the backrest to the desired height.
  • Page 20 ● Remove the two rear wheels, and put the frame down gently. ● Remove the two rear wheel bases, and then use the KARMA tool provided to loosen the screws at the bottom of the seat bracket. ● Use the KARMA tool provided to loosen the screws at the bottom of the armrest base.
  • Page 21       Figure 4.21 Figure 4.22 4.1.3.4 REAR WHEEL Your wheelchair could be supplied with quick-release wheels for optional. If so, please follow these instructions as listed below. 4.1.3.4.1 REAR WHEEL REMOVAL To remove the rear wheel, follow these instructions as listed below: ●...
  • Page 22       Figure 4.23 Figure 4.24         CAUTION:   l You must make sure that the axle is fully located in the wheelchair bracket and that the ball bearings are fully open and have positively attached the wheel in the frame. l...
  • Page 23 (See Figure 4.26) 4.1.3.6.2 When you want to go down, press the release lever. (See Figure 4.27) 4.1.3.6.3 To adjust footplate height use the Karma tool provided to loosen the bolt at the side of the footrest arm.
  • Page 24          ...
  • Page 25 4.1.3.7.1 HEIGHT To adjust the footplate height, follow these instructions as listed below: ● Use the KARMA tool provided to loosen the bolt at the end of the footrest arm. ● Adjust to required height and tighten. (See Figure 4.30) ●...
  • Page 26 4.1.3.8 SAFETY BELT To adjust the safety belt, follow these instructions as listed below. 4.1.3.8.1 For KM-BT10, safety belt is the standard equipment. 4.1.3.8.2 To adjust the length of the safety belt, identify the required length. 4.1.3.8.3 Push the two parts of safety belt through the buckle to make the safety belt longer or shorter.
  • Page 27   and buckle. 4.1.3.8.7 KM-BT10 also provides the extension safety belt part to suit the user who has a large body type, just follow the previous step and you can easily attach them. (See Figure 4.36)        ...

  • Page 28: Transferring In And Out

        SUGGESTION:   l Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult with your KARMA dealer.     WARNING:     l Don't put anything on the wheelchair while it is in storage.
  • Page 29   4.2.1.2 Turn the footplates up and swing them to the side. 4.2.1.3 Lower the user into the seat, allow them to use the armrests for support. 4.2.1.4 Turn the footplates back down, so that the user can place feet on them.

  • Page 30: General Use

          Figure 4.39 Figure 4.40 Figure 4.41   4.3 General Use   4.3.1 ATTENDANT PUSHING AND SELF PROPELLING 4.3.1.1 Ensure that the brakes are always locked when the chair is not being pushed. (See Figure 4.41) 4.3.1.2 Always make sure that both feet are safely on the footplates and that clothing is safely tucked out of the way and cannot get caught in the wheels.
  • Page 31       Figure 4.44 Figure 4.45 4.3.1.6 Always be careful not to go too fast or turn too quickly and try to achieve a smooth steady ride. 4.3.1.7 Before crossing the road, please stop completely and look both ways. 4.3.1.8 Cross tracks or ruts at right angles to avoid your castors getting stuck.
  • Page 32   4.3.4.1.2 Move the wheelchair slowly and carefully forwards while tilting it back slightly. Be ready to take the weight when the rear wheels cross the kerb edge. Ensure that both rear wheels touch the ground at the same time to avoid tipping the wheelchair.
  • Page 33   CAUTION:   l As KM-BT10 is designed for people of significant size and weight, we recommend the attendant to use lift instead of going up and down by stairs.   l Never try to adjust any adjustable parts by yourself, for example, the adjustment of gravity, etc.

  • Page 34: Inspection And Maintenance

    5.1.9 Inspect brakes for proper operation. 5.1.10 The wheels and tyres should be checked periodically for cracks and wear, and should be replaced by a qualified technician. 5.1.11 A qualified technician can be found with an authorized KARMA dealer.  ...
  • Page 35   A maintenance/service fee may apply.   SUGGESTION:   l Even if you don't use the vehicle for a long time, the wheelchair should still be maintained annually.     ITEM WEEKLY MONTHLY     GENERAL   l Wheelchair rolls straight (no excessive drag or pull to one side)  ...
  • Page 36     l If pneumatic tyres, check for proper inflation.       For KM-BT10, the pneumatic tyre pressure is     35-45psi (240-310kPa)   l Check tyre tread depth is more than 1mm l Check tyre pressure; tyre pressures are located on the side of the tyre  ...

  • Page 37: Accessories

      l I.V. Pole l Oxygen Holder l Standard size attaches to the l Height adjusts from 130cm (51") back of wheelchairs. to 200cm (78"). l Attaches to all KARMA manual wheelchairs.                ...

  • Page 38: Troubleshooting

    Check castor bracket angle l Check for loose nuts and bolts Squeaks and Rattles l Check for loose nuts and bolts Looseness in Chair If you cannot solve the problem by yourself, contact your KARMA wheelchair dealer for help.  ...

  • Page 39: Specifications

        8. SPECIFICATIONS       MODEL KM-BT10   DESCRIPTION   Overall Length (mm) 1210   Overall Width (mm)   Overall Height (mm) 865-915   Total Weight (kg) 31.8 Seat Width (inch) 26 (22, 24, 28, 30)   (Adjustable)

  • Page 40: Cleaning & Recycling

        9. CLEANING & RECYCLING 9.1 CLEANING 9.1.1 In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. 9.1.2 If possible, don't use your wheelchair in the conditions as mentioned above.

  • Page 41: Warranty

    (a repair of this kind will hereafter be called warranty repair). ● Warranty repairs can be carry out by authorized KARMA wheelchair dealers only. ● KARMA is not responsible for the transportation costs for repair and replacement. ● Replaced parts will be the property of KARMA. 10.2.1.2 WARRANTY DURATION...
  • Page 42 ● Problems arising due to lack of inspection and/or maintenance as outlined in Section 5 of this owner’s manual. ● Installation or use of parts not manufactured by KARMA. ● Damage or surface corrosion from environmental factors such as airborne fallout (chemicals, tree sap, debris and so on), and...
  • Page 43   natural disasters, etc. ● Abuse or misuse not authorized by KARMA, such as addition, modification, or alteration, etc. 10.2.3 THE RESPOSIBILITIES OF THE USER The following items are the responsibility of the user: 10.2.3.1 Proper use of the wheelchair in accordance with the owner’s manual.
  • Page 44 GENDER: □Male □Female   MM/ DD/ YYYY   DATE OF BIRTH:       ADDRESS:   MODEL: KARMA KM-BT10     SERIAL NUMBER:   MM/ DD/ YYYY   DATE OF PURCHASE:       PURCHASER SIGNATURE: 10.2.8. DEALER’S DATA  ...
  • Page 45               KARMA MEDICAL PRODUCTS CO., LTD. Number 2363 section. 2 Da-Shiue Rd., Min-Hsiung Shiang, Chia-Yi, Taiwan TEL: 886-(0)5-206 6688 FAX: 886-(0)5-206 7788 28 Newfield Road, Stoubridge, West Midlands DY9 OJR U.K TEL: +44(0)1562 885097 FAX: +44(0)1562 886838 http://www.KarmaMedical.com...
  • Page 46             NATIONAL AGENT: KARMA MEDICAL PRODUCTS CO., LTD.       SOLD AND SERVICED BY: http://www.KarmaMedical.com/ E-Mail: globalsales@karma.com.tw   KARMA reserves the right to modify information herein without further notice. 104-40125 Rev.00 JAN..2011...
