As with any type of steerpoint markpoints can be
sent over the IDM - Refer to the IDM chapter in the
TO-BMS1F-16CM-34-1-1 for further information.
Markpoints are visible on the HSD page once
created as a cyan cross.
In any MARK mode manual markpoints can be
created by setting the correct MARK subpage
according to active sensor. Move the cursor to the
desired spot and move TMS up once or twice
depending on MARK mode. If previous automatic
markpoints were recorded the markpoint rotary will
increment and the next available steerpoint in the
MARK bank will be selected. Ownship markpoints
are stored in steerpoint 26 to 30. Once #30 is filled,
the next markpoint will overwrite #26 and so on.

1.3.11. FIX page (8)

1.3.12. A-CAL page (9)

1.3.13. COM1 page

NEXT/PREV ICP button to directly change the preset (note the double arrows next to the 4).
Note that the UFC UHF radio is able to listen to GUARD while transmitting and receiving on the preset
if set to BOTH. By moving the DCS to the right BOTH will be replaced by MAIN and the UHF will not
receive GUARD unless tuned to 243.0 MHz. Please refer to the BMS-Comms-Nav-book for more
information.

1.3.14. COM2 page

BMS 4.34 Dash 1
© Red Dog 2012-2019
Not implemented.
Not implemented.

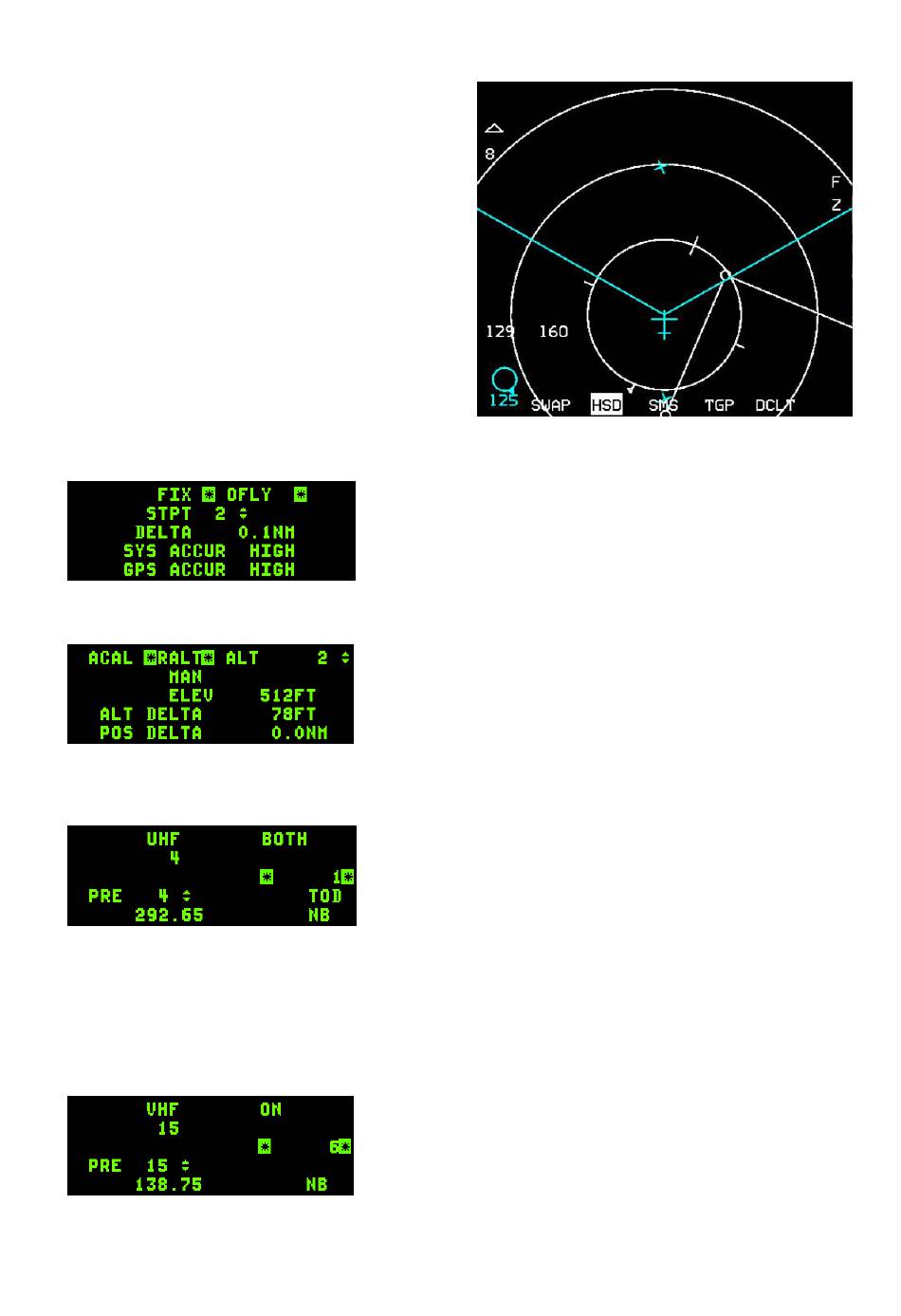

Pressing the COM1 ICP button brings up the UHF radio
page. The first line gives the status; in this case it's set to
BOTH (Preset & Guard) and the frequency is 292.650 MHz.
The scratchpad is ready to receive a new frequency or the
new preset. Presets are set in the UI.
Another way to change the UHF radio is to use the ICP
The COM 2 ICP button brings up the VHF radio page.
The first line gives the status of the radio, in this case it's ON
and the set frequency is preset 15. The UFC VHF radio
cannot listen to GUARD while on a preset. It must be tuned to
121.5 MHz.
The scratchpad is ready to receive the new frequency or the
new preset.
BMS 4.34 Change 2.00
Page: 71
