Nws Failure - BMS F-16C/D 4.34 Flight Manual

T.O. BMS1F-16CM-1

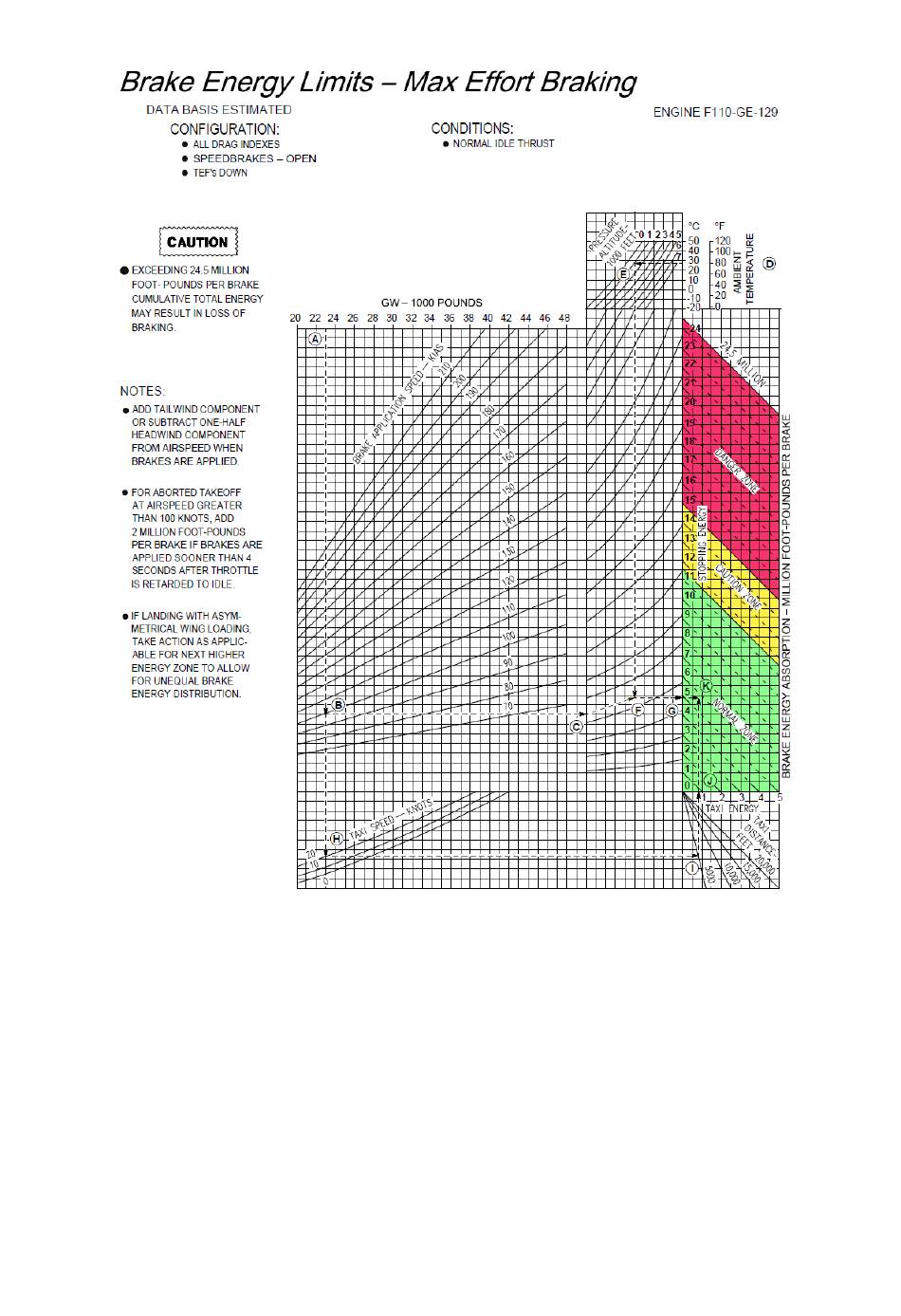

Zone 1 : Green: Normal zone - 0-11.5 million ft-lbs, nothing happens
Zone 2: Yellow: Caution zone - 11.5-15 million ft-lbs, 30% chance something bad happens
Zone 3 : Red: Danger zone - 15-24.5 million ft-lbs, 90% chance something bad happens
Zone 4 : Over 24.5 million lbs: Danger zone + immediate braking failure likely

3.5.7 NWS FAILURE

NWS failure is indicated by the NWS FAIL caution light, in which case do not engage NWS; a
malfunction may cause abrupt turns, tyre skidding or blowouts and departure from the paved surface.
Use rudder and brakes as required to steer the aircraft on the ground. Beware of increased hot brakes
risk when using differential brakes to steer the aircraft.
Remember NWS is not to be used at speeds higher than 70 knots. Doing so may cause abrupt turns,
tyre skidding or blowouts and departure from the paved surface as well.
BMS 4.34 Dash 1
© Red Dog 2012-2019
BMS 4.34 Change 2.00
Page: 209
