Once contact has been made the yellow and green lights will become active; these will help you to
adjust your position to stay connected with the boom.
If in all older versions of Falcon you remember the boom "snapping" you in the correct position no
matter what; this is no longer the case with BMS. You keep flying the aircraft. The boom will remain
connected as long as you stay within its manoeuvring envelope.
When the boom connects the blue RDY light on the right indexer shuts off and the green AR/NWS
light comes on signalling fuel transfer. If you enabled the BINGO DED page you can monitor the fuel
flowing in.

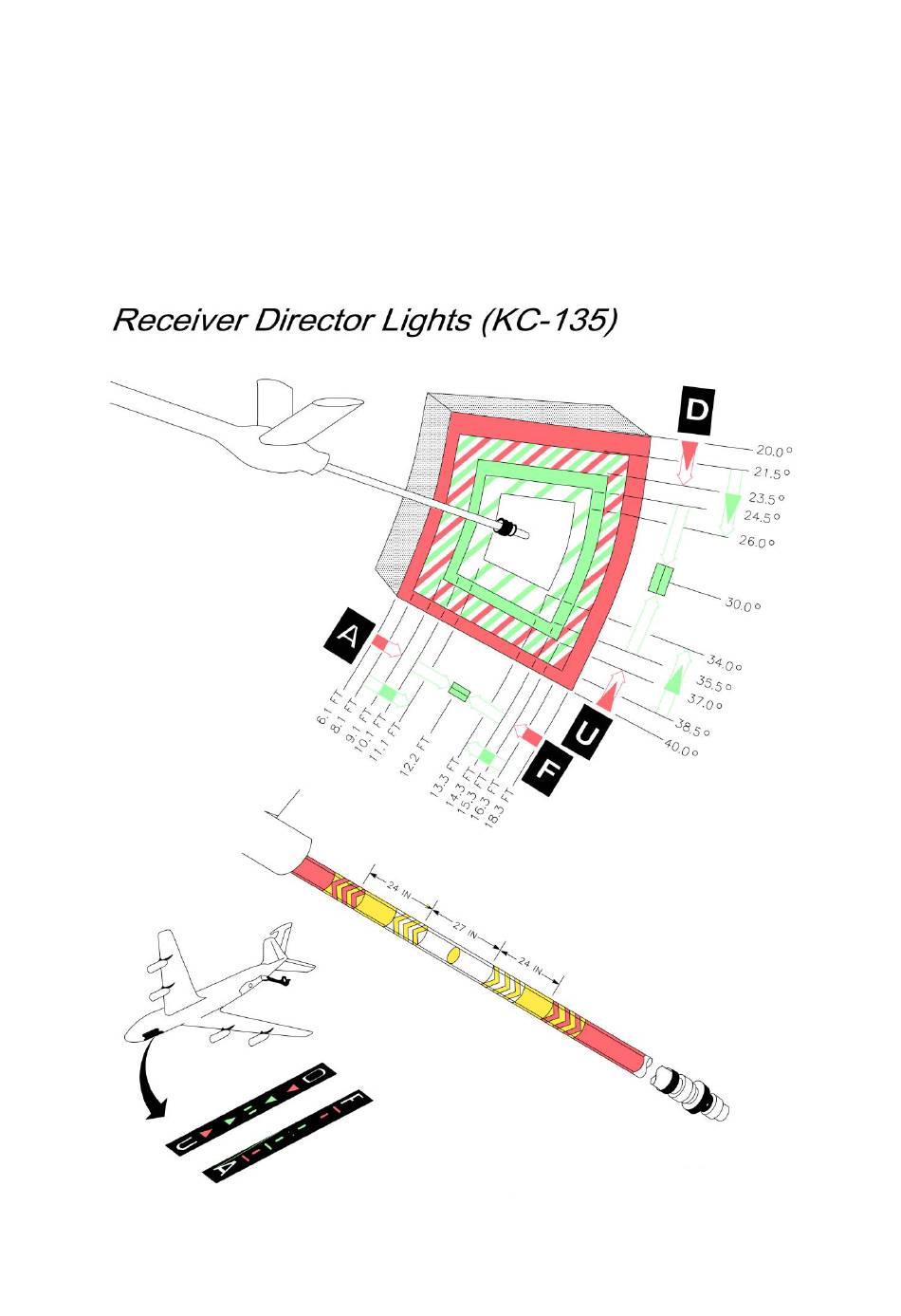

KC-135 Diagrams
