Russound MBX-AMP Installation Manual

Wi-fi streaming zone amplifier
Hide thumbs Also See for MBX-AMP:

Advertisement

Table of Contents

MBX-AMP
Wi-fi Streaming Zone Amplifier
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBX-AMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russound MBX-AMP

Summary of Contents for Russound MBX-AMP

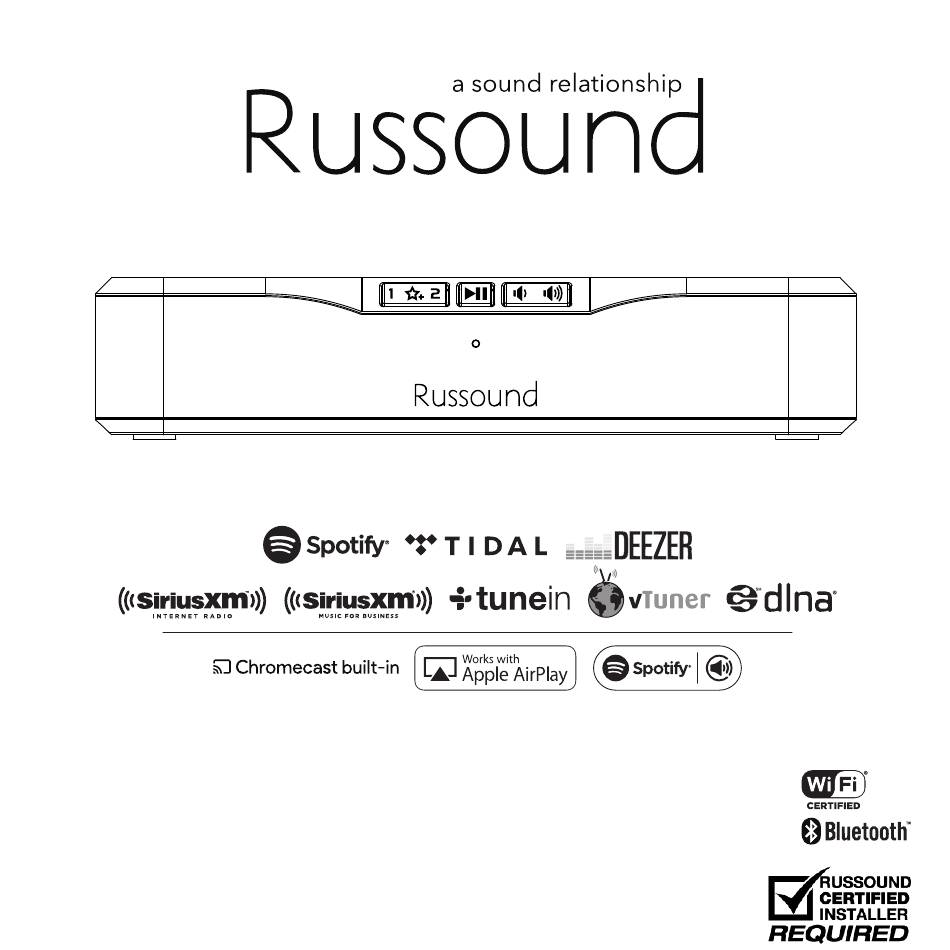

  • Page 1 MBX-AMP Wi-fi Streaming Zone Amplifier Installation Guide...
  • Page 2 Russound Sales Representative for more information. Note: If you are a Russound Certified Installer and you plan on installing this product on a job site that may not have working internet access, please configure the unit at your shop or other location where internet access is available BEFORE you take it to the job site.

  • Page 3: Table Of Contents

    Ethernet Connection and Factory Reset ........5 premium audio system. Installation Overview ................. 6 • External IR Sensor included to use the MBX-AMP with your Installation and First Time Setup ..........7-12 current remote control for Volume/Mute commands• Built- Configuration ................13-14 in AirPlay streaming with full metadata to iOS/Android apps Troubleshooting ................15...

  • Page 4: Web Configuration

    MBX-AMP Status in any web browser on a smartphone, tablet, or laptop that is connected to the same network as the MBX-AMP. Using Web Config, the MBX-AMP can be completely configured, quickly and easily, from the palm of your hand.

  • Page 5: Ethernet Connection And Factory Reset

    DHCP. A 10-second press network setting is DHCP-enabled, but the MBX-AMP can be and hold will completely reset the MBX-AMP to its factory configured with a static IP address using the Web Config default settings.

  • Page 6: Installation Overview

    Mounting Options The MBX-AMP can also be mounted into a structured wiring The MBX-AMP can be mounted on a table-top or shelf, but can. When installed, the mounting brackets have a 6" on- can also be wall-mounted using the included brackets or center separation between the mounting holes.
  • Page 7 AC wall outlet. “MBX-AMP-XXXX”, with XXXX being the last 4 digits of the MAC ID of the MBX-AMP. This is done in order to make it The MBX-AMP will take about 30 seconds to fully power easier to identify multiple MBX devices when configuring a up.
  • Page 8 MBX-AMP. You can access the network settings by navigating to Admin-Networking. It is recommended *During the setup process, the MBX-AMP will play a tone in order to confirm that you are configuring the proper device. In order to use “Automatic” as the Networking Type. Select the...

  • Page 9: Installation And First Time Setup

    First Time Setup The first selection to make is the type of network connection The first time that a user navigates to the MBX-AMP Web you would like to use. There are three possible options: Config page, Web Config will open automatically in First Time Setup mode.
  • Page 10 The name can be edited here or changed at any time in the future using Web Config. We suggest naming the MBX-AMP for the room or area of the house where it is used. For example, "Kitchen" or "Dining Room".
  • Page 11 From the drop-down menu’s select the country where the Wi-Fi networks will appear. If you would like to manually MBX-AMP is located as well as the region. This information enter an SSID and password, simply select “Enter Manual will allow the MBX-AMP to automatically keep its date and SSID”...
  • Page 12 FIRST TIME SETUP Firmware Update Lockdown Feature The MBX-AMP will automatically verify if it is running the most up-to-date firmware. If it is, you’ll see the message “Software is up to date”. Otherwise, select the update to get the latest firmware. It is ALWAYS recommended to run the most recent available firmware on your MBX-AMP and other Russound devices.

  • Page 13: Configuration

    PC. No additional information the MBX-AMP. With AirPlay, your iOS device becomes needs to be entered on the MBX-AMP. Note that the MBX- anextension of your audio system. AMP Device Name that you set in Web Config will be the same...
  • Page 14 DHCP connection by pressing and holding the Multiple Streaming Products Reset button on the rear of the MBX-AMP for 3 seconds and Note that account settings are individual settings for then releasing it. This will restore the MBX-AMP to a DHCP...

  • Page 15: Troubleshooting

    "Setup" issues. section of WebConfig. If you have the MBX-AMP configured with a static IP address and do not After the number of minutes configured remember the settings, you can reset the MBX-AMP to DHCP by pressing and in "Idle Timeout"...

  • Page 16: Audio Connection With Mca-Series Controllers

    Phone or Tablet router CAT-5 Output The MBX-AMP can be used with a Russound MCA-Series controller and supported user interfaces to access all features and provide amplification for speakers in multiple locations. Use this diagram as an example of possible wiring connections when using a Russound controller with your MBX-AMP.
  • Page 17 Note: Before connecting or disconnecting the SLM-1 IR Sensor or any other device wiring, make sure that the power cord is disconnected from the MBX-AMP first. Once all connections have been made and verified, re-connect the MBX-AMP power cord. Russound MBX-AMP Installation Guide...

  • Page 18: Ir Learning

    2. Tap random buttons on the 3rd party remote to establish the remote is there (this first step does not learn any buttons). The MBX-AMP is designed to be used with virtually all You can also do this by holding down one random remote standard remote controls such as a cable box or satellite button until the IR input picks up the signal.

  • Page 19: Ir Learning

    Russound USRC remote control. These IR commands can be used for the same buttons that are Sensor available on the front panel of the MBX-AMP: Play, Pause Favorite 1 (F1) and Favorite 2 (F2), Volume Up, Volume Down, and Mute.

  • Page 20: Network Best Practices

    Check for other options that could have Check for firmware updates available for your Russound an effect on communication: Options such as UPnP should equipment to make sure they are up-to-date in order to...

  • Page 21: Technical Specifications

    OGG Vorbis, FLAC (8, 16-bit). Music File Formats AAC, AAC+ (supports up to 24-bit/192 kHz) Power Requirements 12VDC, 1.25A Product Dimensions 8.25”W x 7”D x 1.75”H 21cm W x 17.8cm D x 4.5cm H Product Weight: 1.5 lb 0.68 kg Russound MBX-AMP Installation Guide...

  • Page 22: Safety Instructions

    Nettoyage - L'appareil doit être nettoyé uniquement tel Lisez les instructions - Toutes les instructions de sécurité et que recommandé par le fabricant. De temps en temps vous doivent être lues avant d'utiliser l'appareil. Russound MBX-AMP Installation Guide...
  • Page 23 14. Attachments - Only use attachments/accessories specified pour que les moyens d'un appareil à la terre ou polarisation by the manufacturer. ne soit pas annulée. Accessoires - N'utilisez que des fixations / accessoires spécifiés par le fabricant. Russound MBX-AMP Installation Guide...
  • Page 24 Changes or modifications not expressly approved by the party au-delà de celle qui est décrite dans le manuel d'instructions. responsible for compliance could void the user's authority to operate Toutes les réparations doivent être effectuées par un the equipment. technicien qualifié. Russound MBX-AMP Installation Guide...

  • Page 25: Limited Warranty

    Russound at the owner’s expense and with prior written permission from Russound. Accidental Before returning a unit for repair, call Russound at (603) 659- damage and shipping damage are not considered defects, 5170 for a Return Authorization number. Write this number...
  • Page 26 ©2016-2018 Russound/FMP, Inc.. All rights reserved. Russound, MBX-Series® and the Russound logo are registered trademarks of Russound/ FMP, Inc. All trademarks are the property of their respective owners. Specifications are subject to change without notice.
