V4062A,B,D HI-LO-OFF FLUID POWER GAS VALVE ACTUATOR
Mount and Adjust 7616BR Damper Crank
Arm (If Used)
The damper crank arm provides a maximum travel of
2-5/16 in. (58.7 mm) through a stroke of 52 degrees.
See Fig. 3. If the V4062 has a damper shaft return spring,
dampers go to the closed position when power is interrupted
by the programmer. Refer to the instructions packed with
the 7616BR Damper Crank Arm for complete installation
information.
52 DEGREE
ANGULAR
ROTATION
2-5/16 (58.7)
MAXIMUM
TRAVEL

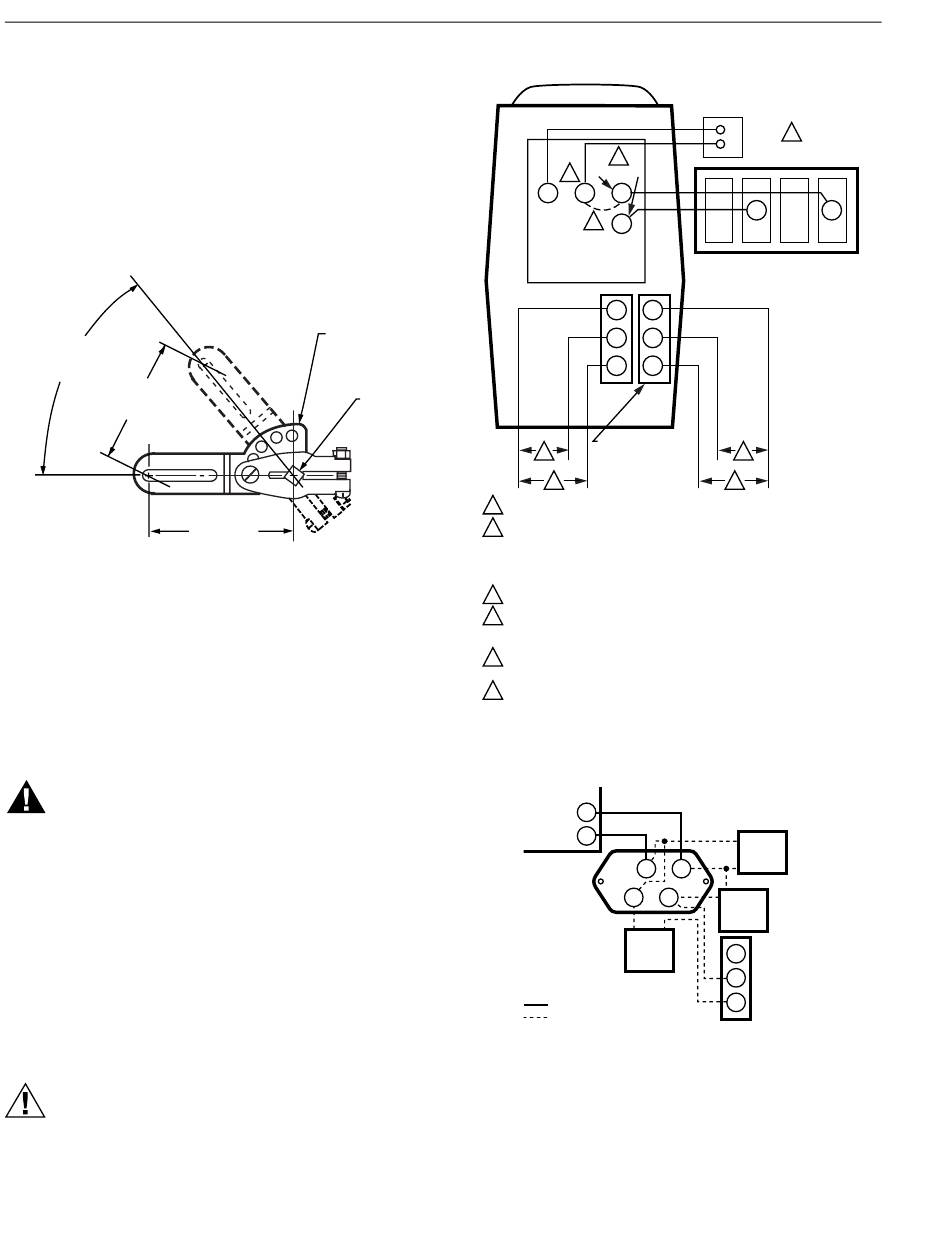

Fig. 3. 7616BR Damper Crank Arm can
be attached to actuator shaft to drive a
damper at same time valve is opened.

WIRING

Wiring must comply with all applicable electrical codes,
ordinances, and regulations. Wiring to the actuator and to
the controller must be NEC Class 1.
WARNING
Electrical Shock Hazard.
Can cause serious injury or death.
Disconnect power supply before doing any wiring.
Connect the power from the flame safeguard control to
terminals 1 and 2 on the V4062 terminal strip, and connect the
firing rate controller to terminals 3 and 4. Refer to Fig. 4 for
typical connection. Fig. 5 shows the wiring for connecting the
Max Flow Limit Switch to the actuator. For other typical
system hookups, refer to the instructions packed with the
device used to control the valve.
When all wiring connections are complete, replace the
actuator faceplate.
CAUTION
Equipment Damage Hazard.
Can cause equipment damage or improper and
dangerous operation.
Label all wires prior to disconnection when servicing
valves. Wiring errors can cause improper and
dangerous operation.
60-2099—9
7616BR
DAMPER
ARM
SHAFT
2-11/16 (68.3)
RADIUS
M7322
L1
HOT
4
3
4
3
AUXILIARY
SWITCH
5
6
1
POWER FROM FLAME SAFEGUARD CONTROL.
2
ACTUATOR OPENS TO LOW-FIRE POSITION WHEN FIRING RATE
CONTROLLER SWITCH IS OPEN AND LINE VOLTAGE IS SUPPLIED
TO TERMINALS L1 AND L2. ACTUATOR OPENS FULLY WHEN THE
FIRING RATE CONTROLLER SWITCH IS CLOSED AND POWER IS
SUPPLIED TO TERMINALS L1 AND L2.
3
INTERNAL JUMPER.
4
FOR LOW-FIRE ADJUSTMENT AFTER BURNER IS IN OPERATION.
DISCONNECT FIRING RATE CONTROLLER LEADWIRE FROM
TERMINAL 4.
5
SWITCH BETWEEN THESE TWO LEADS IS CLOSED WHEN VALVE IS
SHUT (DE-ENERGIZED).
6
SWITCH BETWEEN THESE TWO LEADS IS OPEN WHEN VALVE IS
SHUT (DE-ENERGIZED).
Fig. 4. Typical hookup for V4062 Actuator.
7800 SERIES
RELAY
L2
MODULE
9
FIELD WIRING
INTERNAL WIRING
Fig. 5. Connecting Max Flow Limit Switch to the actuator.
6
FIRING
RATE
CONTROLLER
1
L2
1
L2
2
FLAME SAFEGUARD
PROGRAMMER–MAIN
VALVE CONNECTIONS
C
C
NC
NC
NO
NO
PROOF-OF-
CLOSURE SWITCH
5
6
PUMP
VALVE
1
2
3
4
PUMP
MOTOR
TRAVEL
ADJUSTABLE
LIMIT
NO
MAX
SWITCH
FLOW
LIMIT
NC
SWITCH
C
2
M7339
M12798
