Graco Hopper 24B250 Instructions

Instructions
Hopper Kit 24B250 for
FinishPro™ 290 Sprayer
- This manual contains kit installation instructions only -
Important Safety Instructions
For detailed sprayer information and warnings,
see Operation manual 313316 included with
FinishPro 290 Sprayer.
Pressure Relief Procedure
To help prevent injection injuries, follow this procedure
when you stop spraying and before you service or
clean the sprayer, remove parts, or repair leaks.
1. Turn Power switch OFF. Unplug sprayer.
2. Turn Spray/Prime valve to PRIME to relieve pres-
sure. Turn pressure control knob left (counterclock-
wise) to minimize pressure.
3. Trigger gun.
4. Put trigger safety in safety ON position.
NOTE: Leave Spray/Prime valve in the PRIME position
until you are ready to spray again.
If you suspect that the spray tip or hose is completely
clogged or that pressure has not been fully relieved after
following the steps above, VERY SLOWLY loosen the tip
guard retaining nut or hose end coupling to relieve pres-
sure gradually. Then loosen it completely. Clear the tip or
hose obstruction.
5
7
8

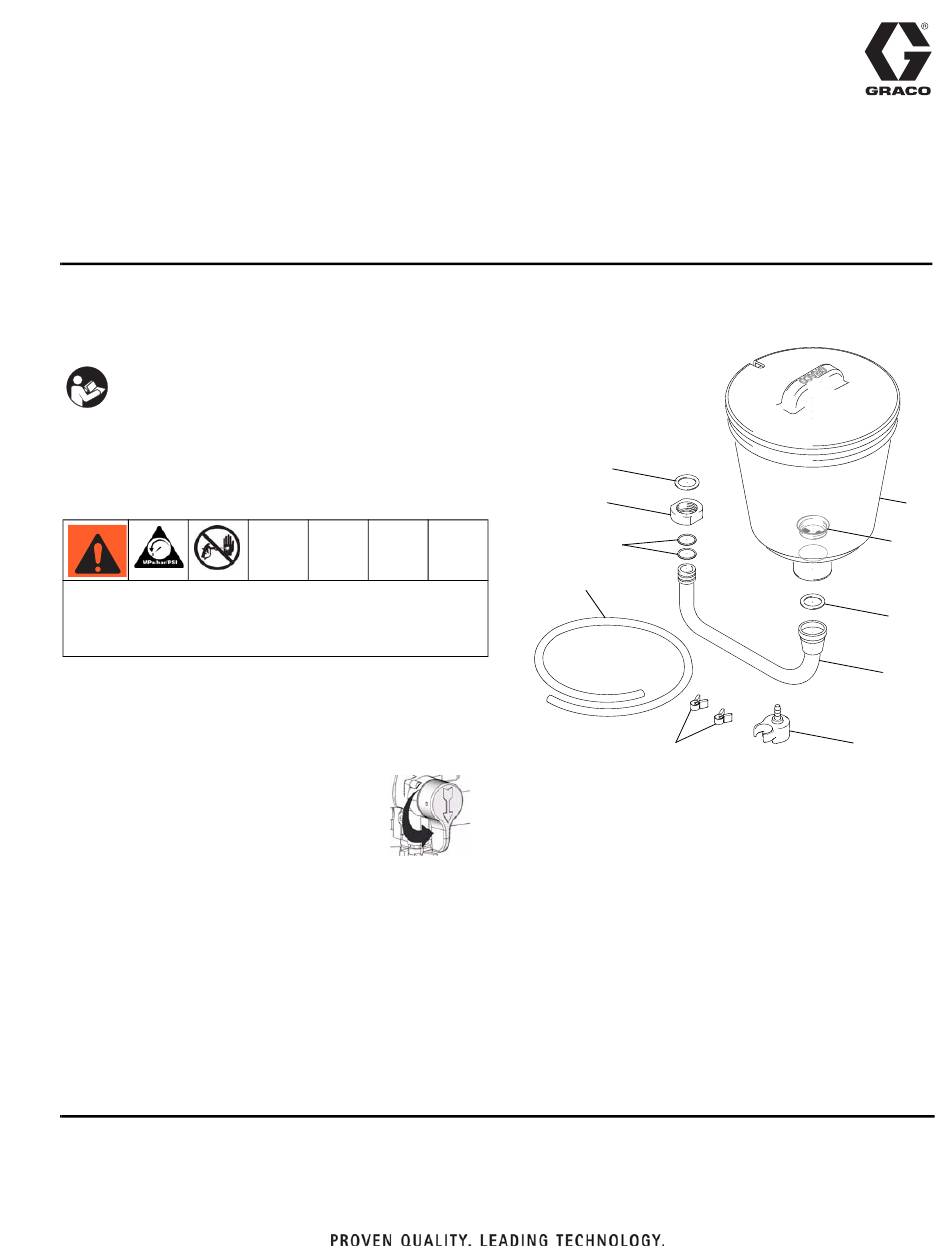

ti13684a
Ref. Part
1 188787 HOPPER, 1.5 gallon
2 112133 SCREEN, hopper
3 104938 PACKING, o-ring
ti11868a 4 257518 TUBE, inlet hopper
5 15B652 WASHER, suction
6 117559 O-RING
7 15E813 NUT, jam
8 15Y587 TUBE, drain, hopper kit
9 115489 CLAMP, drain tube
10 244035 DEFLECTOR, barbed
6
9
Description
313606A
1
2
3
4
10
Qty.
1
1
1
1
1
2
1
1
2
1
