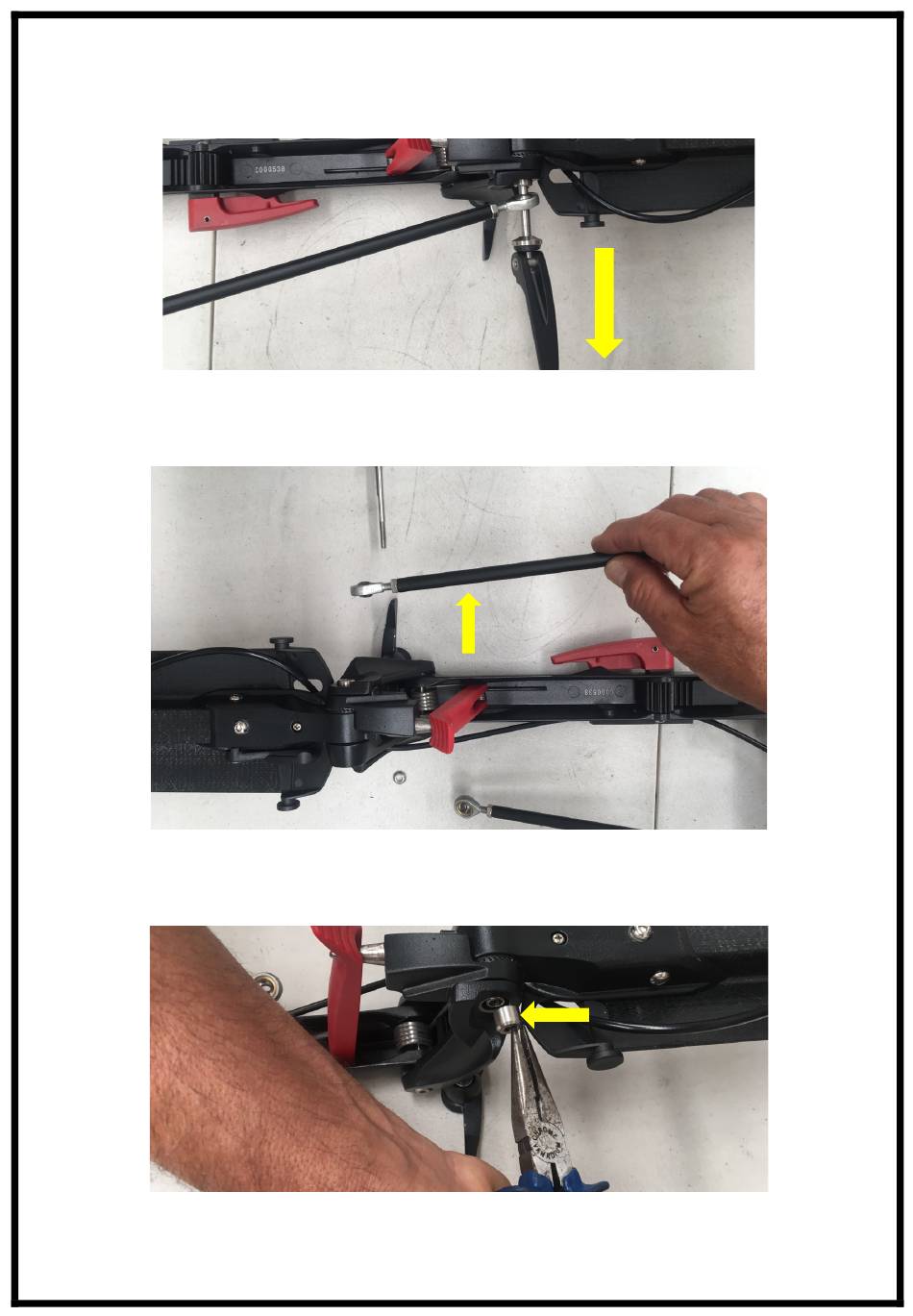

6. Begin to pull out black Camlock Lever and shaft from housing. (See image below)
7. Once Camlock Lever is removed, strut on the opposite side will disengage. (See
image below)
8. Remove the small silver sleeve indicated by the arrow. Then pull out long silver
tubular sleeve which is located inside housing. (See images below)
