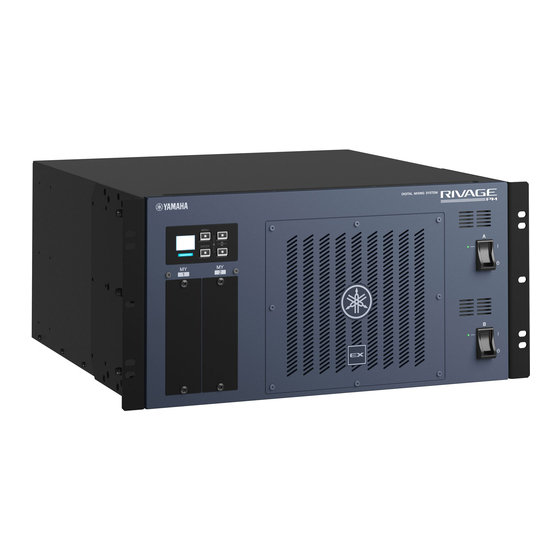

- Page 1 V3 Supplemental Manual...
-
Page 2: Table Of Contents
DSP latency display ..................24 Improved RTA display ..................24 Flashing ON buttons ..................25 [ON] KEYS FUNCTION DURING SOF ............. 25 A new [SHIFT] key function ................26 Improved keyboard input ................26 Improved RIVAGE PM Editor .................27 RIVAGE PM series V3 Supplemental Manual... -
Page 3: Port Name
Slot Port You can select the type of label to be displayed via the PREFERENCES settings or USER DEFINED keys. CS1/2 OMNI IN OMNI OUT SCREEN SETTINGS tab on the PREFERENCES popup window AES/EBU RIVAGE PM series V3 Supplemental Manual... - Page 4 Press a slot label to enter the slot name. Port list Press a port label to enter the port name. List select knob Use the corresponding screen encoder or the [TOUCH AND TURN] knob to select a slot or port. RIVAGE PM series V3 Supplemental Manual...
- Page 5 When pressing the key, the channel name is CHANNEL NAME displayed. When pressing the key, the port name is SWITCH TO ... PORT NAME displayed. When pressing the key, the address is PORT ADDRESS displayed. RIVAGE PM series V3 Supplemental Manual...
-
Page 6: Improved Ch Copy Operation
(located in the lower right corner in this section) to specify parameters that will be copied when you press the [PASTE] key in the Selected Channel section on the top panel. NOTE Preset data will be stored in the USER SETUP library. RIVAGE PM series V3 Supplemental Manual... - Page 7 WITH SENDS button Turn on this button to include in the copy source all the SEND settings (on/off, level, PAN, etc.) for the bus (output channel). OUTPUT CH COPY PRESET popup window RIVAGE PM series V3 Supplemental Manual...
- Page 8 Clear the insert module patch on the copy destination channel. (The DSP allocation used on the copy destination will be retained.) *1 The GEQ link settings on the copy destination will not be changed. *2 Excluding Dual type and Stereo type RIVAGE PM series V3 Supplemental Manual...
- Page 9 Clear the insert module patch on the copy destination channel. (The DSP allocation used on the copy destination will be retained.) *1 The GEQ link settings on the copy destination will not be changed. *2 Excluding a Dual type and Stereo type RIVAGE PM series V3 Supplemental Manual...
-
Page 10: More Metering Points Available
* For QL series units, the latter half of the channels will be patched (i.e., Ch17 - Ch32 for QL1; Ch33 - Ch64 for QL5). ■ PRE GC. And PRE D.GAIN for the INPUT METER • PRE GC ......Immediately before GAIN COMPENSATION • PRE D.GAIN....Immediately before DIGITAL GAIN RIVAGE PM series V3 Supplemental Manual... -
Page 11: Danse
Adjusts the release time. Turning the knob to the right produces a faster release time. THRESHOLD Adjusts the threshold for all bands. LINK knob Simultaneously adjusts the GAIN 1–6 values relatively. GAIN 1–6 Adjusts the maximum gain reduction amount for BANDs 1–6. RIVAGE PM series V3 Supplemental Manual... -
Page 12: Mix To Input
OUTPUT PATCH popup window Displays the input ports for the input sources. SUB IN ATT button Press this button to access the SUB IN ATT popup window, in which you can adjust the input levels. RIVAGE PM series V3 Supplemental Manual... -
Page 13: Improved Channel Name Indicators
INPUT PATCH [PLUG-IN] screen Press one of the tabs to select the output channel type, and then use the knobs to adjust the gain for each channel. RIVAGE PM series V3 Supplemental Manual... - Page 14 CONTENTS Improved channel name indicators Meter screen PLUGIN screen USB RECORDER screen BUS SETUP screen Touch the label indicator beneath each fader to switch to the channel name indicator. RIVAGE PM series V3 Supplemental Manual...
-
Page 15: Set By Sel
PLUG-IN/GEQ popup window: All buttons for plug-ins A and B are the target. Switch all settings on or off, including the PLUG-IN/GEQ tab and BUS/OTHERS tab settings. BUS/OTHERS popup window: All buttons, excluding the SCENE FOCUS button for Global Paste, are the target. RIVAGE PM series V3 Supplemental Manual... - Page 16 NAME EDIT popup window. DESTINATION SCENE This section now indicates the scene selected most recently in the paste destination for each BAY. This will be erased once the unit is powered off. RIVAGE PM series V3 Supplemental Manual...
-
Page 17: Improved Dca Operations
If this button is on, channels assigned to the selected DCA will be turned on when you assign the channels using the [SEL] keys or recall a library. Channels unassigned from the DCA will be turned off. This button is also effective when you recall a DCA library or preset. RIVAGE PM series V3 Supplemental Manual... -
Page 18: Improved Setting Operations In The Custom Fader Bank Popup Window
Select the position to which you wish to assign a custom fader. Press the selected fader assign button again to access the CH SELECT screen, in which you can select a channel to assign. These buttons also indicate the assigned channels. RIVAGE PM series V3 Supplemental Manual... -
Page 19: Improved Sync Operations
Also, you can now set multiple data sync directions simultaneously. DEVICE SYNC screen Sync direction buttons Press one of these buttons to set multiple data sync directions simultaneously. CLEAR ALL button Press this button to clear the data sync direction. RIVAGE PM series V3 Supplemental Manual... -
Page 20: Warning Against Loading A Conflicting System Configuration
WITH RECALL settings.) • Network settings (HY slot and RIVAGE PM StageMix) • +48V MASTER LOAD SELECT screen DETAILS button Press this button to access the SYSTEM CONFLICT DETAILS popup window to view the conflicting items. RIVAGE PM series V3 Supplemental Manual... -
Page 21: Improved Eq Functions
The EQ type is now displayed in the graph. Type Indicator Precise Aggressive Smooth Legacy While pressing and holding down the [SHIFT] key, press the TO ST A/B button to access the PARAMETER SET (TO ST) popup window. RIVAGE PM series V3 Supplemental Manual... -
Page 22: Parameter
PARAMETER SET (BANK LINK) popup window. Select a range of channel numbers to which to apply the parameter value. SELECT ALL button Selects all channels as the copy destination. REVERT button Cancels the SELECT ALL button setting. RIVAGE PM series V3 Supplemental Manual... -
Page 23: Parameter
Destination select knobs Select a range of channel numbers to which to apply the parameter value. SELECT ALL button Selects all channels as the copy destination. REVERT button Cancels the SELECT ALL button setting. RIVAGE PM series V3 Supplemental Manual... -
Page 24: Dsp Latency Display
The values also vary depending on the Fs (sampling frequencies). MIX ......Latency from INPUT to MIX OUT STEREO......Latency from INPUT to STEREO OUT MATRIX .....Latency from INPUT to MATRIX OUT These values do not include the A→D, D→A or network latency. RIVAGE PM series V3 Supplemental Manual... -
Page 25: Flashing On Buttons
• CHANNEL.....Use the [ON] key to switch the channel on or off. This is useful if a monitoring engineer wants to control channel on/ off all the time, even during SENDS ON FADER mode. RIVAGE PM series V3 Supplemental Manual... -
Page 26: A New [Shift] Key Function
• INDIVIDUAL ....Effective only on the corresponding BAY If multiple operators are controlling the unit, each of them can use the respective [SHIFT] key without interfering with the controls of other operators. • LINK .......Effective on all BAY RIVAGE PM series V3 Supplemental Manual... -
Page 27: Improved Rivage Pm Editor
Enables you to select the number of screens to be displayed simultaneously (1–3). The screens correspond to the following bays: • 1st screen: BAY R • 2nd screen: BAY C • 3rd screen: BAY L RIVAGE PM series V3 Supplemental Manual... -
Page 28: Bay All
BAY C on/off. * The BAY LINK setting configured on the control surface will not affect PM Editor, but does affect the SEL LINK setting. CUE OPERATION MODE is a dedicated PM Editor setting. RIVAGE PM series V3 Supplemental Manual... -
Page 29: Matrix
*2 Beginning with version 3, the BAY ALL parameter that supports all bays has been added. VSC ON Turning the [Fn] keys on or off will switch each channel’s Virtual Sound Check on or off. RIVAGE PM series V3 Supplemental Manual... -
Page 30: Description
This message appears after the unit updates a scene without displaying the SCENE #x.xx confirmation message. The word clock for the Dante audio network is not properly configured. Access Word Clock Sync Error! the WORD CLOCK screen and check the setting. RIVAGE PM series V3 Supplemental Manual... - Page 31 CONTENTS New messages Yamaha Pro Audio global website http://www.yamahaproaudio.com/ Yamaha Downloads https://download.yamaha.com/ Manual Development Group © 2019 Yamaha Corporation Published 01/2019 IP-A1 RIVAGE PM series V3 Supplemental Manual...
