Summary of Contents for Teltonika RUT950
-
Page 2: Legal Notice
LEGAL NOTICE Copyright © 2019 TELTONIKA Ltd. all rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited. The manufac- turer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Front View

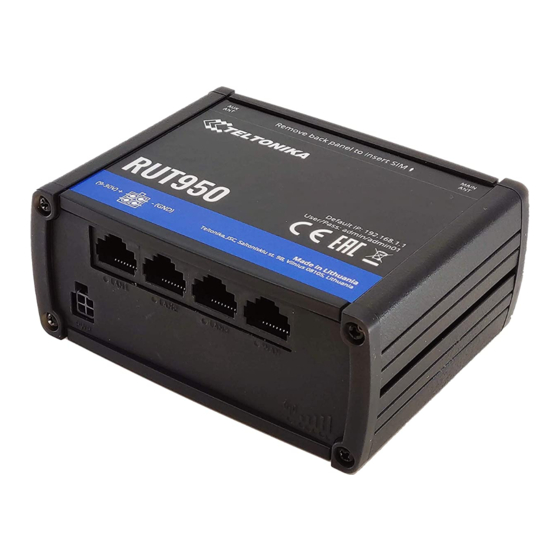

FRONT VIEW LAN Ethernet ports WAN Ethernet port LAN LEDs WAN LED Power socket Mobile signal strength indication LEDs Power LED Mobile connection status LED BACK VIEW Mobile AUX antenna connector Mobile MAIN antenna connector WiFi antenna connectors Reset button... -
Page 4: Hardware Installation
POWER SOCKET PINOUT HARDWARE INSTALLATION 1. Push the SIM holder button with the SIM needle. 2. Pull out the SIM holder. 3. Insert your SIM card into the SIM holder. 4. Slide the SIM holder back into the router. 5. Attach LTE and WiFi antennas (max torque 0.9 Nm 8.0 in-lbs). 6. -
Page 5: Login To Device
LED INDICATIONS SIGNAL STRENGTH LEDS - Constant blinking (~ 2Hz) – router is turning on. - LED turned off – no 4G data connection, LED turned on – 4G data connection. - Green and red blinking alternatively ever 500 ms: no SIM or bad PIN. - Green, red and yellow blinking alternatively every 500 ms: connecting to GSM. -
Page 6: Specifications
In order to comply with the terms of the GPL, Teltonika, where applicable, offers a mail in service of a machine readable source code of the software subject to the GPL, on an optical media (CD-ROM) upon request by mail or email. Further information is provided with the relevant products or the software. -
Page 7: Technical Information
TECHNICAL INFORMATION Radio specifications RF technologies GSM, GPRS, EDGE, UMTS/HSPA+, LTE, GNSS, WiFi Max RF power 33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE, 20 dBm@WiFi Bundled antennas specifications* 698~960/1710~2690 MHz, 50 Ω, VSWR<3, gain** 3 dBi, omnidirectional, SMA male connector GSM/WCDMA/LTE antenna 2400~2483.5 MHz, 50 Ω, VSWR<2, gain** 5 dBi, omnidirectional, RP-SMA male connector WiFi antenna *Order code dependent. -
Page 8: Safety Information
SAFETY INFORMATION RUT950 router must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. Hereby, TELTONIKA declares that this RUT950 is in compliance with the essential requirements and other relevant provisions of [EN] English Directive CE/RED. - Page 9 [SE] Instruktionsmanual: Anslut nätadap tern för att slå på enheten. Öppna 192.168.1.1 i en webbläsare för att konfigurera produkten. Mer information på https://wiki.teltonika.lt [SI] Navodila: Priključite napajalnik za vklop naprave. Odprite 192.168.1.1 v spletnem brskalniku nastaviti izdelek. Več informacij v https://wiki.teltonika.lt [SK] NávoZd na použitie: Pripojte napájací adaptér k zapnutiu prístroja. Otvorte 192.168.1.1 vo webovom prehliadači pre konfiguráciu produktu. Viac informácií...
