Summary of Contents for Teltonika RUT955

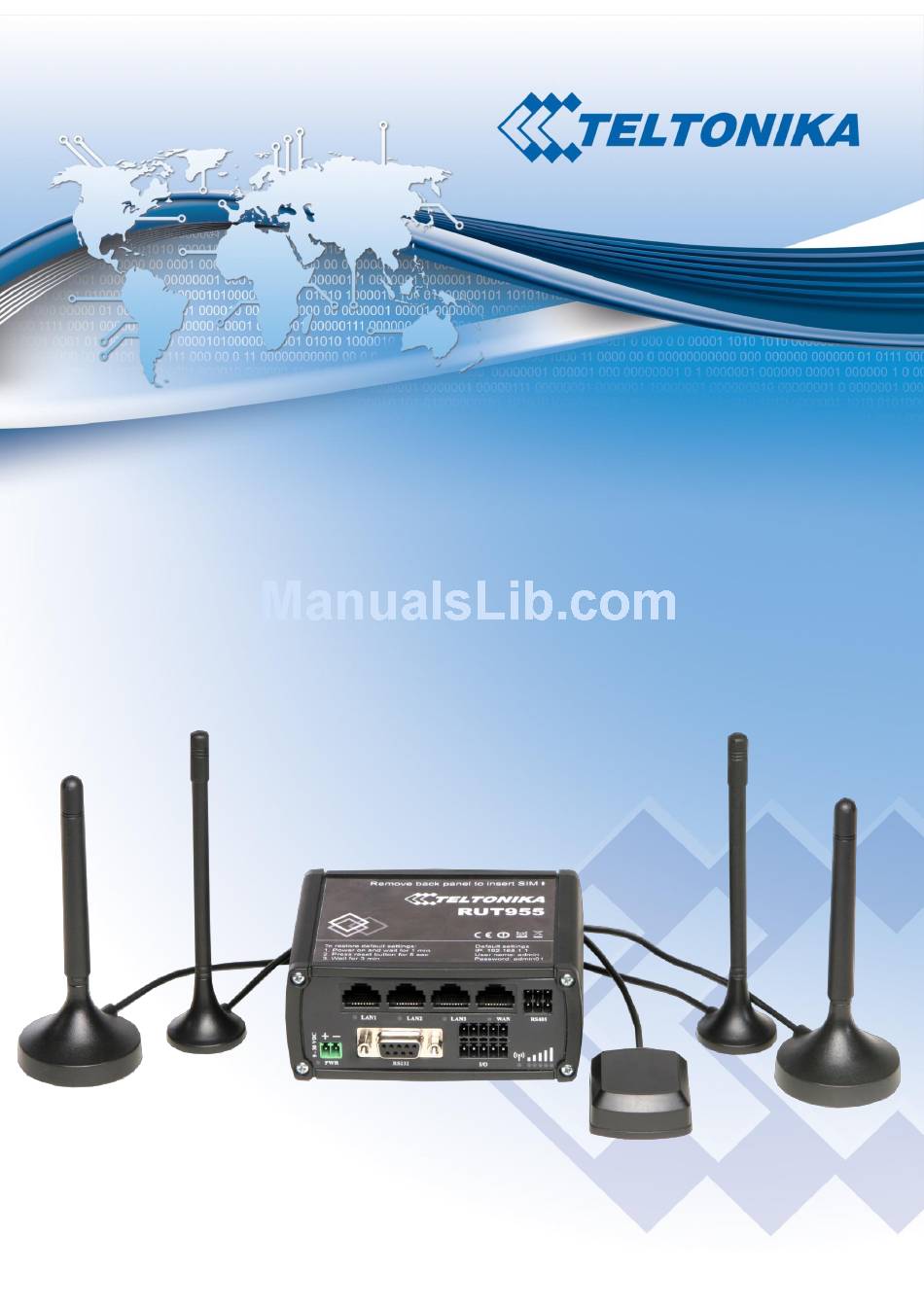

- Page 1 USER MANUAL RUT955 LTE Router...
-
Page 2: Legal Notice
TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Safety Information
Safety information The RUT955 router must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. You have to be familiar with the safety requirements before using the device! - Page 4 To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these safety requirements: The device is intended for supply from a Limited Power Source (LPS) that power consumption should not exceed 15VA and current rating of over current protective device should not exceed 2A.
-
Page 5: Hardware Installation
Introduction Thank you for purchasing a RUT955 LTE router! RUT955 is part of the RUT9xx series of compact mobile routers with high speed wireless and Ethernet connections. This router is ideal for people who„d like to share their internet on the go, as it is not restricted by a cumbersome cable connection. - Page 6 Front and back panels Front view LAN Ethernet ports WAN Ethernet port LAN LEDs WAN LED RS485 Power socket RS232 interface Input/output connector Power LED Mobile connection status LED Mobile signal strength indication LEDs Back view LTE antenna connectors GPS antenna connectors USB connector WiFi antenna connectors Reset button...
- Page 7 Configure your computer (Windows) Enable the wireless network connection (go to Start > Control Panel > Network and Internet > Network and Sharing Center. In the left panel click Change adapter settings link. Right click on Wireless Network Connection and select Enable). Setup the wireless network adapter on your computer (right click on Wireless Network Connection...
-
Page 8: Login To Device
Login to device To enter the routers Web interface type http://192.168.1.1 into your internet browser„s URL field. Use the following parameters when prompted for authentication: Configuration Wizard will start after logging in. It is necessary to complete Configuration Wizard to setup the router to the correct mode. You can leave default settings but it is strongly recommended that you change the default password and enable Wireless Security. -
Page 9: Led Indications
LED indications Constant blinking (~ 2Hz) – router is turning on LED turned off – no 4G data connection LED turned on – 4G data connection Connection status LED indication Green and red blinking alternatively ever 500 ms: no SIM or bad PIN ... -
Page 10: Specifications
Specifications Ethernet IEEE 802.3, IEEE 802.3u standards 3 x LAN 10/100Mbps Ethernet ports 1 x WAN 10/100Mbps Ethernet port Supports Auto MDI/MDIX Wi-Fi IEEE 802.11b/g/n WiFi standards 2x2 MIMO AP and STA modes ... - Page 11 General Public License (“LGPL”) version 2.1 and other open source licenses. In order to comply with the terms of the GPL, Teltonika, where applicable, offers a mail in service of a machine readable source code of the software subject to the GPL, on an optical media (CD-ROM) upon request by mail or email.
-
Page 12: Ce Declaration Of Conformity
[GR] Greek με ηιρ οδηγίερ: 2014/53/ΕΕ [ES] Spanish Por la presente, Teltonika declara que el equipo de radio tipo RUT955 cumple con las Directivas: 2014/53/UE Con la presente, Teltonika dichiara che l'apparecchiatura radio tipo RUT955 è conforme alle [IT] Italian direttive 2014/53/UE Ar šo Teltonika paziņo, ka radioiekārtas RUT955 tips atbilst direktīvām: 2014/53/ES...
