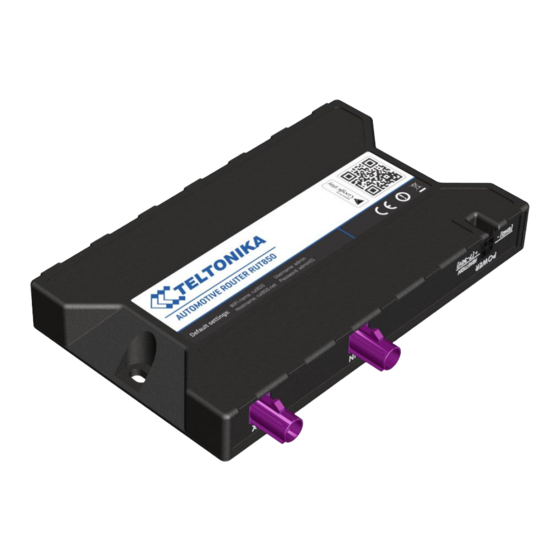

Teltonika RUT850 User Manual

Lte router
Hide thumbs Also See for RUT850:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

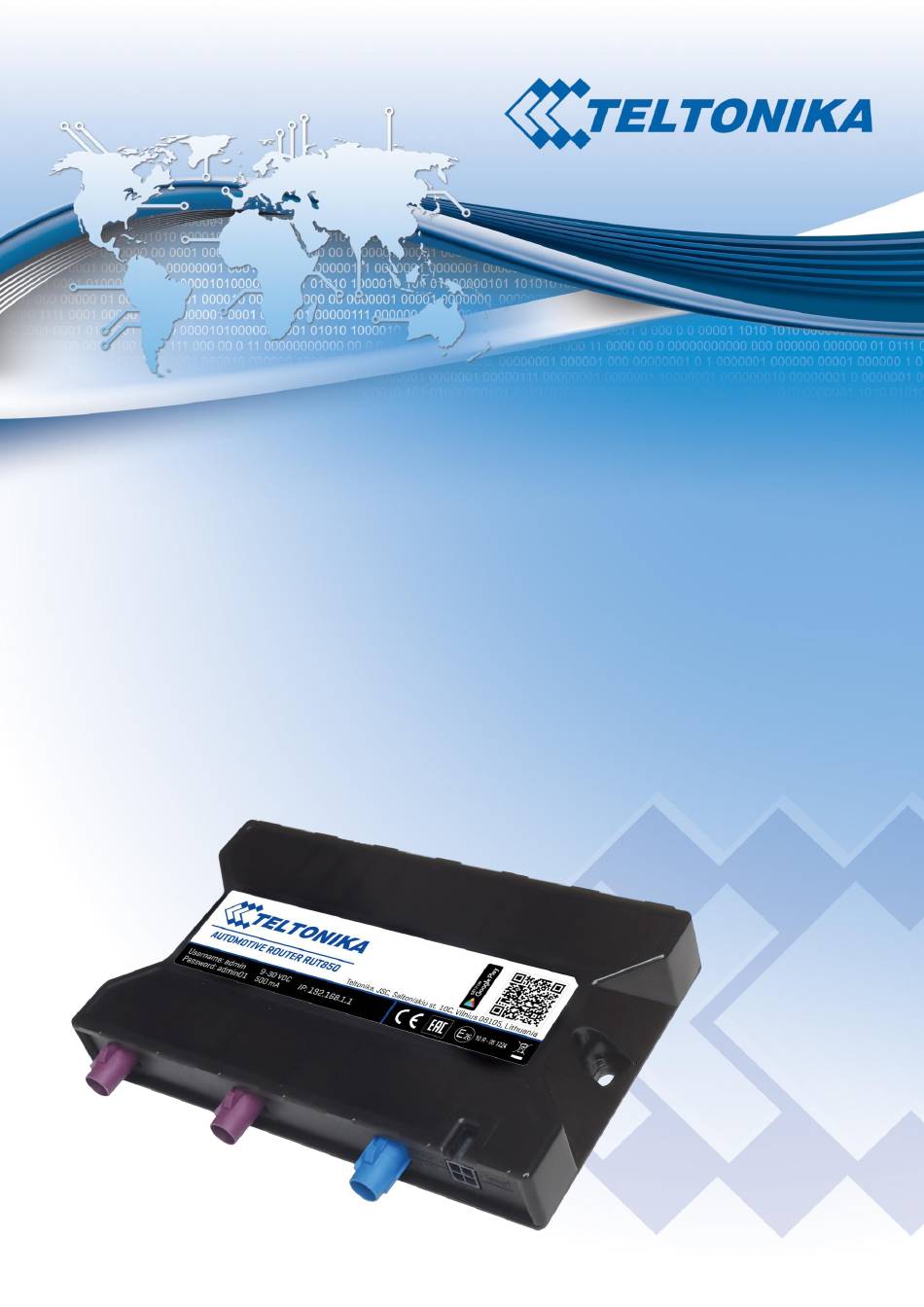

USER MANUAL
RUT850 LTE Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUT850 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika RUT850

Summary of Contents for Teltonika RUT850

  • Page 1 USER MANUAL RUT850 LTE Router...

  • Page 2: Legal Notice

    TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice.

  • Page 3: Safety Information

    Safety information The RUT850 router must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. You have to be familiar with the safety requirements before using the device!
  • Page 4 To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these safety requirements: The device is intended for supply from a Limited Power Source (LPS) that power consumption should not exceed 15VA and current rating of over current protective device should not exceed 2A.

  • Page 5: Hardware Installation

    Introduction Thank you for purchasing a RUT850 automotive LTE router! RUT850 is a compact mobile router with a high speed wireless connection. This router is ideal for people who„d like to share their internet on the go or in a vehicle, as it is not restricted by a cumbersome cable connection.
  • Page 6 Front and back panels Front view Power LED SIM holder Reset button WiFi LED Mobile network type LEDs Mobile signal strength indication LEDs Back view Power socket GPS antenna connector LTE antenna connectors...
  • Page 7 Configure your computer (Windows) Enable the wireless network connection (go to Start > Control Panel > Network and Internet > Network and Sharing Center. In the left panel click Change adapter settings link. Right click on Wireless Network Connection and select Enable). Setup the wireless network adapter on your computer (right click on Wireless Network Connection...

  • Page 8: Login To Device

    Login to device To enter the routers Web interface type http://192.168.1.1 into your internet browser„s URL field. Use the following parameters when prompted for authentication: Configuration Wizard will start after logging in. It is necessary to complete Configuration Wizard to setup the router to the correct mode. You can leave default settings but it is strongly recommended that you change the default password and enable Wireless Security.

  • Page 9: Led Indications

    LED indications  Signal strength status LED‟s constant blinking every 500 ms: Router is turning on  Wi-Fi LED turned ON/OFF: Wi-Fi Enabled/Disabled;  2G, 3G and 4G LEDs constant blinking every 1 sec: No SIM or bad PIN  One of 2G, 3G or 4G LEDs blinking every 1 sec: Connected to 2G, 3G or 4G respectively but no data session established ...

  • Page 10: Specifications

    Specifications Wi-Fi  IEEE 802.11b/g/n WiFi standards  AP and STA modes  WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation  2.401 – 2.495GHz Wi-Fi frequency range*  20dBm max WiFi TX power  SSID stealth mode and access control based on MAC address Hardware ...
  • Page 11 General Public License (“LGPL”) version 2.1 and other open source licenses. In order to comply with the terms of the GPL, Teltonika, where applicable, offers a mail in service of a machine readable source code of the software subject to the GPL, on an optical media (CD-ROM) upon request by mail or email.

  • Page 12: Ce Declaration Of Conformity

    [GR] Greek με ηιρ οδηγίερ: 2014/53/ΕΕ [ES] Spanish Por la presente, Teltonika declara que el equipo de radio tipo RUT850 cumple con las Directivas: 2014/53/UE Con la presente, Teltonika dichiara che l'apparecchiatura radio tipo RUT850 è conforme alle [IT] Italian direttive 2014/53/UE Ar šo Teltonika paziņo, ka radioiekārtas RUT850 tips atbilst direktīvām: 2014/53/ES...
