Machine Compartment; Cabinet Top Component Locator; Water System - GE Monogram ZIPS360NHSS Technical Service Manual

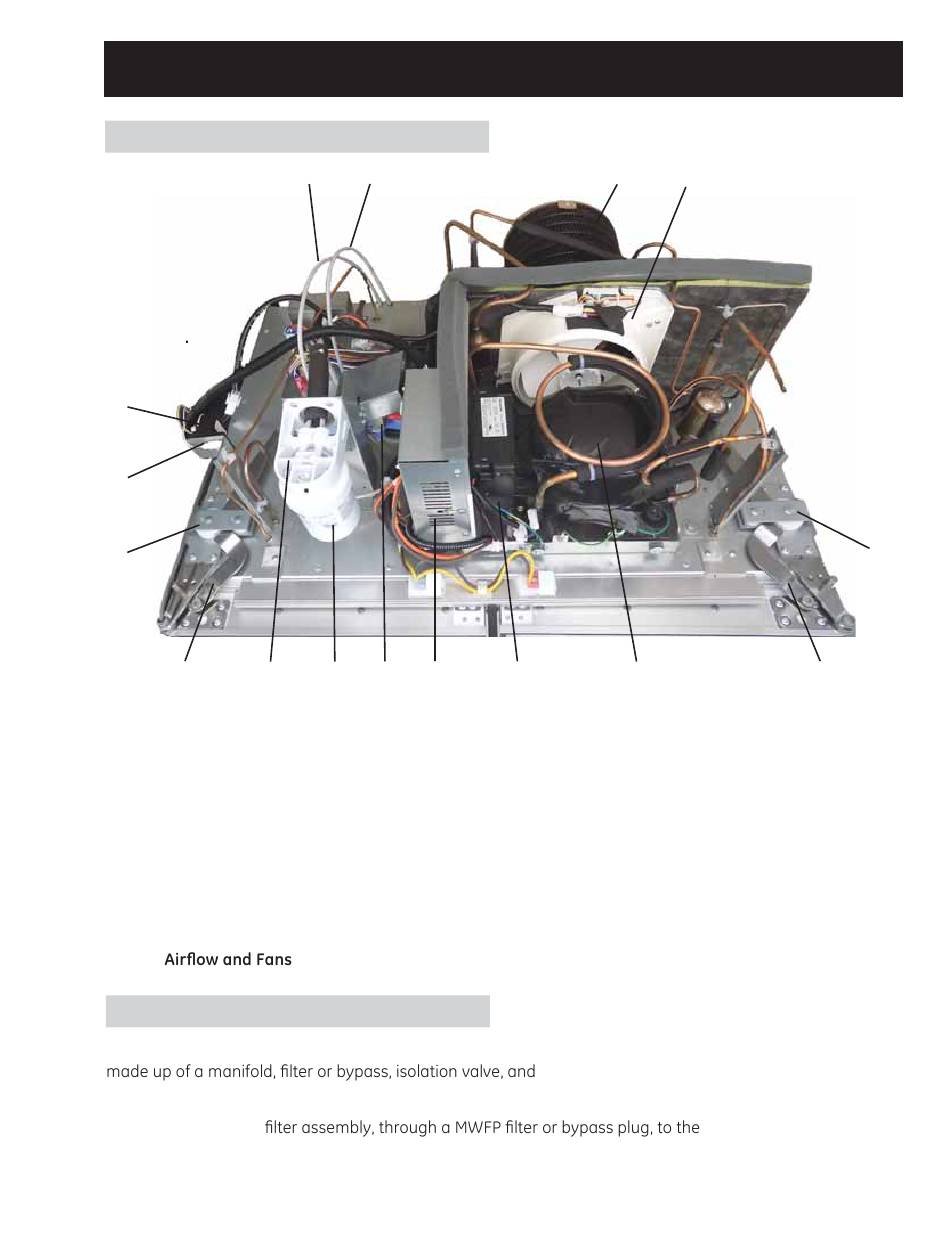

Cabinet Top Component Locator

4
3
1
2 5
1. Fresh Food Door Closures
2. Actuator Arms
3. Ambient Sensor
4. Humidity Sensor
5. Filter Head Assembly
6. Water Filter
7. Water Valve Assembly
See the

Water System

Water components for the icemaker are located in the left side of the machine compartment. The system is
When the icemaker calls for water, water will travel through the supply line (built into the cabinet), to the
isolation valve, to the
the icemaker supply line (also built into the cabinet), then to the icemaker.

Machine Compartment

8 9
6 10
7
section for more information on the condenser fan.
13
11 12
8. Water Supply Tube
9. Icemaker supply line
10. Main Board Enclosure
11. Inverter
12. Compressor
13. Condenser Coil
14. Condenser Fan
icemaker valve.
– 43 –
14
2
icemaker valve, through
1
