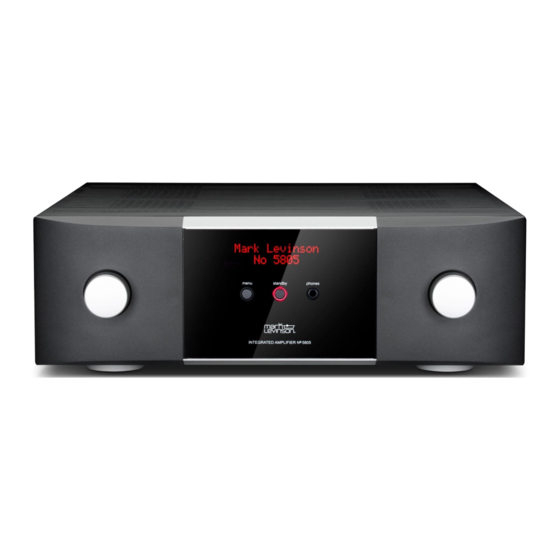

Mark Levinson 5805 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

N
0
N
0
INTEGRATED AMPLIFIER
5805
5802
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mark Levinson 5805

Summary of Contents for Mark Levinson 5805

  • Page 1 5805 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 3: Table Of Contents

    Control Front-panel overview Remote control overview Remote control operation Browser Setup Panel Setup Setup navigation Input setup Volume setup Power setup Display setup Advanced setup SSP (surround processor integration) setup Troubleshooting Specifications 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 4: Overview

    4 and 2 ohm loads. Variable line-level RCA outputs allow system expansion and flexibility. The iconic Mark Levinson hourglass knobs are redefined - Control machined with a gently curved profile transitioning into a rounded front, with feet to match.
  • Page 5 Digital Inputs • 1 x USB 2.0, 1 x coaxial S/PDIF, and 2 x optical S/PDIF (№ 5805) • 1 x USB 2.0, 2 x coaxial S/PDIF, 2 x optical S/PDIF, and 1 x AES/EBU (№ 5802) • 384kHz/32 bit PCM and DSD 11.2MHz capability •...

  • Page 6: Installation

    Make sure that all of the items listed below are included. If • Select a dry, well-ventilated location that is out of direct any are missing, contact your authorized Mark Levinson sunlight. dealer. • DO NOT expose the N...

  • Page 7: Power Requirements, Operating States

    INSTALLATION POWER REQUIREMENTS OPERATING STATES The N 5805 is configured at the factory for 100, 115, or 230 The N 5805 / N 5802 has three operating states: VAC power operation at 50Hz or 60Hz. Before operating the Off: The AC mains power is disconnected by removing the power amplifier, ensure that the power label on the rear panel near cord from the rear panel.

  • Page 8: Connections

    Line Out • 2 x Optical (Variable) • 2 x Coax USB A for IR In Trigger Speaker Terminals Updates In and Out Positioned for a Ethernet RS232 Variety of Connector Types DB9F 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 9: External Component Connections

    Use 16-gauge or larger speaker wire to ensure the highest fidelity performance. Connect the speaker’s positive Balanced (+) terminal to the N 5805’s positive (+) red binding post, and Input Connector (female XLR) the speaker’s negative (–) terminal to the N 5805’s negative (–)
  • Page 10 MC inputs. You may connect only one turntable re-setting the DIP switches. to the N 5805. If the turntable is equipped with a ground wire, CAUTION: Do not use the phono inputs for any source connect it to the ground screw.
  • Page 11 CONNECTIONS Digital inputs (N 5805): The N IR input connector: This connector accepts IR (infrared) control 5805 has four digital audio input º connectors: an asynchronous USB-B (labeled with a USB icon signals from other equipment. See www.marklevinson.com for ), two optical (TOSLINK) S/PDIF connections (labeled T1 IR code data.
  • Page 12 CONNECTIONS Balanced Single-Ended Analog Source Analog Source Component Component Computer To USB Port Digital Source Component Left Right Speaker Speaker 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 13: Quick Listen

    5. Begin playing the selected source device. 6. Sit back, relax and delight in the incredible realism of your Mark Levinson high-performance audio system. 7. For more information on how to get the best performance and convenience from your new amplifier, read on. You will be glad you did.

  • Page 14: Front-Panel Overview

    Volume/Scroll/Enter Menu button: Press this button to display the Setup menu, The N 5805 / N 5802 was designed for elegant simplicity and ergonomics. Therefore the knobs perform a variety of functions which you can use to customize the N...

  • Page 15: Remote Control Overview

    Menu: Press this button to display the Setup menu, which you While in Balance mode other controls will not operate. To exit can use to customize the N 5805 / N 5802 to suit your system the Balance mode, push the Balance button a second time.

  • Page 16: Remote Control Operation

    CONTROL REMOTE CONTROL OPERATION Battery Installation Your N 5805 / N 5802 remote control comes with two AAA alkaline batteries. To install the batteries, use the included hex tool to remove the battery cover, insert the batteries and replace the battery cover and hex screw. Be sure to observe proper battery polarity.

  • Page 17: Browser Setup Panel

    • Open a browser in a PC or tablet that is connected to your home LAN. • Enter the IP address of your unit in the address line. • The amplifier’s Browser Setup Panel Home page will appear on the screen. 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 18: Setup

    Browser Setup Page (BSP) Operation Connect your Mark Levinson integrated amplifier to a PC or tablet via your home network and open a browser. Simply type in your units IP address into a major browser connected to the...

  • Page 19: Input Setup

    SETUP INPUT SETUP (5805) Setup Menu Input Setup Set Input X Input B1 [analog XLR] Name=XXX Available for all inputs Volume S1 (analog RCA) Offset=XXX Power S2 (analog RCA) SSP=On/Off Available for analog inputs Display Phono (analog) PCM Filter=XXX Available for digital and...
  • Page 20 Custom ) from the next drop down menu and push OK to save. If you selected Custom , you can type the custom name in the text box and press OK to save. 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...
  • Page 21 However, the advanced up-sampling frequency “aliased” signals. However, they exhibit more ringing algorithm in the N 5805 / N 5802 is able to approximate these on signal transients. additional data points very well, and with most program material it offers a noticeable subjective improvement.
  • Page 22 -3dB to +3dB in 0.5 dB steps. NOTE: After connecting all source components to the 5805 / N 5802, we suggest using the Setup menu to set the names of all inputs that are not being used to “Disabled.”...

  • Page 23: Volume Setup

    CAUTION: Setting the Turn On parameter to “Last” can result in louder-than-expected power-up volume if the N 5805 5802 was set to a high volume level setting when last powered down. 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 24: Power Setup

    When set to On, the display will turn off Green: This mode removes power from almost all of the after 3, 5 or 10 seconds. 5805 / N 5802’s circuits, allowing the unit to be activated Timer: The timer determines when the display turns off, after only via an IR control signal, a 5V –...

  • Page 25: Advanced Setup

    Select the Advanced Update tab on the Browser Setup Page, and push the Go FTP Site button near the bottom of the page to view a list of available downloads. Click each of the txt files to see the version number of each type of software. 5805 / N 5802 INTEGRATED AMPLIFIER...
  • Page 26 5805 / N 5802 will read the USB drive. (The display a home network. The unit will access the Mark Levinson will show “Check Update” while the drive is being read.) server and download the latest firmware. The download and 4.
  • Page 27 FTP server, a USB drive or your PC’s hard drive. It is highly unlikely an end user will need to use this page. This page should be accessed by trained installers or service professionals. 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...
  • Page 28 Standby mode that the unit waits to pass Name: Displays your N 5805’s network name in this format a trigger signal to the trigger output jack. The choices are N5805XXXX (the X’s represent the last four characters of the 0 - 10 seconds, with 0 being the default.

  • Page 29: Ssp (Surround Processor Integration) Setup

    Sound Processor to control the volume of the Left and Right component is a Blu-ray disc player, connect it to the speakers powered by the N 5805 in unison with the rest of the appropriate input connectors on the surround sound system. Room correction EQ and level calibrations performed in processor.
  • Page 30 INTEGRATED AMPLIFIER To Front Left & Right Speakers CENTER & balanced balanced balanced SURROUND POWER AMPLIFIER inputs inputs inputs single ended single ended single ended outputs outputs outputs To Center & Surround Speakers 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...

  • Page 31: Troubleshooting

    DC on the output, which can damage speakers. power source. Wait 10 seconds and reattach the power cord. If the error message does not clear call your Mark Levinson dealer or Mark Levinson customer service. WARNING: OVER TEMP [LEFT/ RIGHT] Indicates the amplifier channel has exceeded Wait 10 to 15 minutes to let the unit cool.
  • Page 32 Check the mains fuse accessible on the rear panel mains outlet. Examine the electrical circuit breaker to ensure that power is being supplied to the electrical outlet to which the N 5805 / N 5802 is connected. 5802 is not in Standby mode. The front-panel standby LED illuminates fully and continually when the N...
  • Page 33 5802 by unplugging the power cord, waiting at least 10 seconds and reconnecting the power cord. Restore factory-default settings (see Setup/Advanced/Config/Restore on page 26). Contact your authorized Mark Levinson dealer. Contact Mark Levinson Customer Service at 888-691-4171 or www.marklevinson.com. 5805 / N 5802 INTEGRATED AMPLIFIER...

  • Page 34: Specifications

    SPECIFICATIONS SPECIFICATIONS ANALOG LINE STAGE (№5805 ONLY) Line Input Impedance: Balanced (XLR): 20kΩ; Single-ended (RCA): 10kΩ Volume Control: Balanced; voltage mode; digitally-controlled resistor network Gain: 8.5dB maximum Output Impedance: 55Ω Output Overload: >4.5V RMS Frequency Response: 20Hz to 20kHz, ±0.03dB; <2Hz to 210kHz, +0.1/–3dB (At unity gain volume setting) Total Harmonic Distortion: <0.01%,1kHz;...
  • Page 35 >3.3V RMS, 30Ω load Signal-To-Noise Ratio: >91dB (20Hz to 20kHz, A-weighted, referred to 2V RMS output); >87dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output Output Impedance: <2.5Ω, 20Hz to 20kHz 5805 / N 5802 INTEGRATED AMPLIFIER OWNER’S MANUAL...
  • Page 36 100VAC, 115VAC, or 230VAC, factory set Power Consumption: Standby , “Green” mode: <0.4W; Standby , “Power Save” mode: 7W; №5805: Standby , “Normal” mode: 70W; №5802: Standby , “Normal” mode: 45W; №5805: Power on, quiescent: 120W; №5802: Power on, quiescent: 95W; №5805: Power on, both channels at ⅛ rated power: 240W;...
  • Page 38 Northridge, CA 91329 USA © 2019 HARMAN International Industries, Incorporated. All rights reserved. Mark Levinson is a registered trademark of HARMAN International Industries, Incorporated. Other company and product names may be trademarks of the respective companies with which they are associated.
