TallyGenicom 6605 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
TallyGenicom
6600 Series Printers
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6605 and is the answer not in the manual?

Questions and answers

Related Manuals for TallyGenicom 6605

Summary of Contents for TallyGenicom 6605

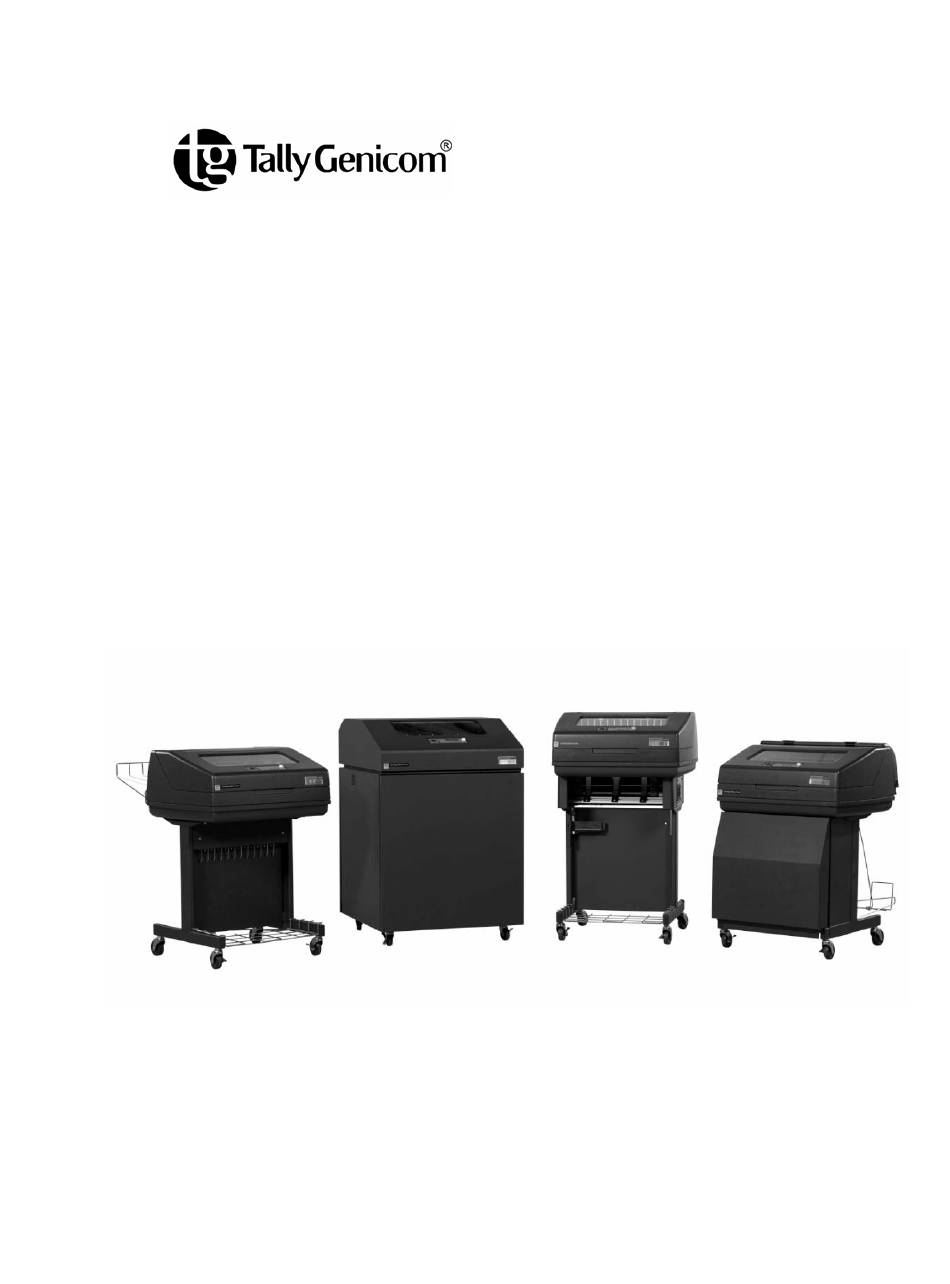

  • Page 1 ® TallyGenicom 6600 Series Printers User’s Manual...
  • Page 2 TallyGenicom disassemble the Software. or by TallyGenicom. If you fail to comply with the terms of this You agree to keep confidential and use your best License and such failure is not corrected within thirty (30) days efforts to prevent and protect the contents of the after notice.
  • Page 3 User’s Manual ® TallyGenicom 6600 Series Printers...
  • Page 4 TallyGenicom makes no representations or warranties of any kind regarding this material, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose. TallyGenicom shall not be held responsible for errors contained herein or any omissions from this...

  • Page 5: Table Of Contents

    Table of Contents 1 Introduction............. 9 Printer Overview ..................9 TallyGenicom 6600 Cartridge Ribbon Printers (CRP) Series.....9 Consumable Monitoring With PrintNet Enterprise ........11 Taking Care Of Your Printer ..............11 Conventions In This Manual ..............11 Warnings And Special Information ............11 Related Documents ................12 Contact Information ................12...
  • Page 6 Table of Contents 4 Configuration Menus..........43 Configuration Overview ................43 Changing Parameter Settings ............43 Saving Parameter Settings .............. 44 Default And Custom Configurations ..........44 Navigating The Menus ..............44 Changing Parameters Example ............45 Auto Save Configuration ..............47 Saving Your New Configuration ............
  • Page 7 Table of Contents 5 Interfaces............105 Overview....................105 Centronics Parallel Interface..............106 Centronics Parallel Interface Signals ..........107 IEEE 1284 Parallel Interface..............108 Compatibility Mode.................108 Nibble Mode ...................108 Byte Mode ..................108 Signals ...................109 Terminating Resistor Configurations ..........111 RS-232 Serial Interface ................112 RS-232 ...................113 6 Reprogramming the Security Key....... 115 Reprogramming The Security Key............115 How To Program The Security Key..........115 7 Troubleshooting..........
  • Page 8 E PTX_SETUP Option ........... 177 Overview....................177 The PTX_SETUP Commands .............. 177 Commands ..................178 F Customer Support ..........185 TallyGenicom Customer Support Center..........185 TallyGenicom Supplies Department ............. 185 Corporate Offices.................. 186 G Communication Notices ........187 Notices....................187 Energy Star...................

  • Page 9: Introduction

    TallyGenicom® is pleased to announce the new TallyGenicom 6600™ Series Line Matrix printers. This is the latest generation product from a long heritage of high quality extending over 30 years. TallyGenicom® is a global leader for design and manufacturing with the ability to deliver unsurpassed service and support.

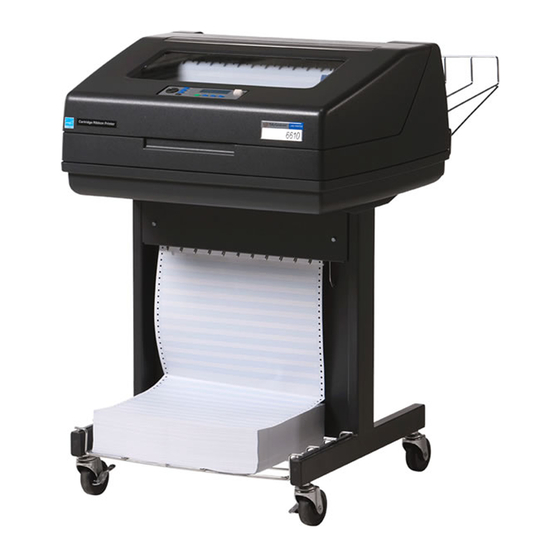

  • Page 10 Chapter Printer Overview There are four printer configurations: Enclosed Cabinet (66XXQ) • The enclosed cabinet models provide for near silent operation, making these printers perfectly suitable for use in the quietest of office environments. • Provides the best paper handling for large print runs. All paper input and output is contained inside the cabinet and protected from bumping and contamination.

  • Page 11: Consumable Monitoring With Printnet Enterprise

    TallyGenicom 6600 Cartridge Ribbon Printers (CRP) Series Consumable Monitoring With PrintNet Enterprise The Integrated Print Management System works with PrintNet Enterprise (PNE). PNE allows a system administrator to remotely view the current consumable status of all printers. PNE can be configured to deliver alerts on all consumable warnings.

  • Page 12: Related Documents

    IG graphics languages. • Integrated Network Interface Card User’s Manual — Information about network protocols, configuration, and operation. Contact Information TallyGenicom Customer Support Center IMPORTANT Please have the following information available prior to calling the TallyGenicom Customer Support Center: •...

  • Page 13: Tallygenicom Supplies Department

    TallyGenicom Supplies Department TallyGenicom Supplies Department Contact the TallyGenicom Supplies Department for genuine TallyGenicom supplies. Americas (800) 733-1900 Europe, Middle East, and Africa 33 (0) 1 46 25 19 07 Asia Pacific (65) 6548 4116 or (65) 6548 4182 China (86) 400-886-5598 http://www.tallygenicom.com/supplies/default.aspx...
  • Page 14 Chapter Contact Information...

  • Page 15: Setting Up The Printer

    Setting Up The Printer Before You Begin Read this chapter carefully before installing and operating the printer. The printer is easy to install. However, for your safety and to protect valuable equipment, perform all the procedures in this chapter in the order presented. Power Requirements The printer must be connected to a power outlet that supplies 88 to 270 volts AC.

  • Page 16: Printer Dimensions

    Chapter Printer Dimensions Table 1. Maximum Interface Connection Cable Length Interface Type Maximum Cable Length Centronics Parallel 5 meters (15 feet) IEEE 1284 Parallel 10 meters (32 feet) Serial RS-232 15 meters (50 feet) Ethernet 10/100Base-T 100 meters (328 feet) Printer Dimensions 41.0 in 57.5 in...
  • Page 17 59.0 in (149.9 cm) 42.5 in (107.8 cm) 27.0 in (68.6 cm) 32.5 in 83.0 in 27.0 in (82.6 cm) (210.8 cm) (68.6 cm) 27.0 in 32.0 in (68.6 cm) (81.3 cm) Figure 2. Printer Dimensions - Cabinet Model with Paper Stacker...
  • Page 18 Chapter Printer Dimensions 25 in. (63.5 cm) 10.5 in. (26.67 cm.) 48.0 in. (122 cm) 30 in. (76.2 cm.) 24.6 in. (62.48 cm) Figure 3. Printer Dimensions - Pedestal Model...
  • Page 19 Printer Component Locations 25 in. (63.5 cm) 10.5 in. (26.67 cm.) 48.0 in. (122 cm) 30 in. (76.2 cm.) 24.6 in. (62.48 cm) 34.1 in. (86.6 cm.) Figure 4. Printer Dimensions - Quiet Pedestal Model...

  • Page 20: Printer Component Locations

    Chapter Printer Component Locations Printer Component Locations Ribbon Ribbon Cartridge Tab (2) Ribbon Tension Knob Tractor (2) Blue Tractor Lock (2) Splined Shaft Hammer Bank Cover and Paper Ribbon Mask Support (2) Slot (2) Vertical Position Knob Platen Lever Platen Stop Ribbon Cartridge Interface 183871 REV A...

  • Page 21: Operating The Printer

    Operating The Printer Powering On The Printer When you power on the printer, it executes a self-test. The default power-up state is offline. When the self-test completes and the software has initialized successfully, the status indicator light is off, indicating the printer is offline. When the printer is online, the default emulation type you have installed appears in the upper-right corner of the display.

  • Page 22: The Control Panel

    Chapter The Control Panel The Control Panel Figure 6 shows the keys, displays, and indicators as they appear on the control panel. The following section provides the descriptions, and functions of the control panel keys. Key combinations are indicated with the plus (+) sign. For example, “Press ”...
  • Page 23 Control Panel Keys VIEW When the printer is online or offline, pressing this key executes the view or eject function. A short press of the View key performs the view function. If the key is held down for more than one second, the eject function is performed. If online with data in the printer buffer, the data prints and the key functions as described below.
  • Page 24 Chapter The Control Panel Sets the top-of-form on the printer. This key is active only when the printer is offline. The paper moves down to the print position and aligns to the top-of- form. Refer to the Quick Setup Guide for complete instructions on how to set the top-of-form.

  • Page 25: Cancel A Print Job

    Cancel A Print Job Current Config/Ribbon Life Indicator Depending on the panel display menu, the second line of the LCD displays the name of the current configuration or the life of the installed ribbon. Cancel A Print Job The procedure to cancel a print job depends on the printer emulation and your application software.

  • Page 26: Operational Procedures

    Chapter Operational Procedures Operational Procedures This section contains routine printer operating procedures on how to: • reload paper • unload paper. Reload Paper Do this procedure when “LOAD PAPER” displays. (This message occurs when the last sheet of paper passes through the paper slot.) This procedure reloads paper without removing the last sheet of the old paper supply, while retaining the current top-of-form setting.
  • Page 27 Reload Paper 1. Raise the printer cover. Raise the platen lever as far as it will go. (See Figure 5 on page 20 for the location of the lever.) NOTE: Do not open the tractor doors or remove the existing paper. 2.
  • Page 28 Chapter Operational Procedures Vertical Position Knob Paper Thickness Indicator Platen Stop Platen Lever Platen Stop Knob 183444 REV B Figure 9. Setting the Platen Lever 8. Turn the platen stop knob clockwise or counterclockwise to match the paper thickness. (The A-B-C scale corresponds approximately to 1-, 3-, and 6-part paper thickness).
  • Page 29 Reload Paper Wire Guide (2) Paper Paper Slot Slot Metal Paper Guide (6620Q) Cabinet Model Pedestal Model 183439 REV B 183440 REV B Figure 10. Paper Slots on the Printers NOTE: Perform steps 14 to 31 only if you are unable to load the new paper over the existing paper.
  • Page 30 Chapter Operational Procedures Left Tractor Door Paper Left Tractor Lock Figure 11. Loading Paper on the Left Tractor 17. Pull the paper above and behind the ribbon mask. See Figure 5 on page 20 for the ribbon mask location. 18. Load the paper on the left tractor. 19.
  • Page 31 Reload Paper Tractor Paper Tractor Splined Shaft Tractor Lock Paper Scale Figure 12. Positioning the Left Tractor to Avoid Damage CAUTION To avoid damage to the printer caused by printing on the platen, always position the left tractor unit directly to the left of the “1” mark on the paper scale.
  • Page 32 Chapter Operational Procedures Tractor Door Tractor Lock Figure 13. Loading Paper onto the Sprockets 21. Unlock the right tractor. 22. Load the paper onto the sprockets and close the tractor door. If necessary, slide the right tractor to remove paper slack or to adjust for various paper widths.
  • Page 33 Reload Paper 23. Pedestal models: Using the vertical position knob to move the paper up, guide the paper over the upper paper guide and through the slot to the rear of the top cover. For pedestal models with the Quick Access Cover, refer to the Quick Setup Guide for paper exiting options.
  • Page 34 Chapter Operational Procedures Vertical Position Knob Paper Thickness Indicator Platen Stop Platen Lever Platen Stop Knob 183444 REV B Figure 16. Adjusting the Platen Lever 27. Turn the platen stop knob clockwise or counterclockwise to match the paper thickness. (The A-B-C scale corresponds approximately to 1-, 3-, and 6-part paper thickness.

  • Page 35: Unload Paper

    Unload Paper Unload Paper 1. Press ONLINE to place the printer in offline mode and open the printer cover. 2. For cabinet models, open the cabinet rear door. For models with the power stacker installed, press the STACKER UP key on the rear control panel.
  • Page 36 Chapter Operational Procedures Paper Power Stacker Figure 18. Removing Stacked Paper from the Printer 6. For cabinet models, remove the stacked paper from the rear cabinet floor. For cabinet models with the power stacker installed, remove the paper from the wire paper tent and press the STACKER DOWN key to lower the stacker mechanism.
  • Page 37 Unload Paper Tractor Door Platen Lever Figure 19. Completely Removing the Paper 8. To completely remove the paper from the printer: a. Raise the platen lever as far as it will go and open both tractor doors. CAUTION Be careful when pulling any paper backward through the paper path, especially when using a label stock.

  • Page 38: Integrated Print Management System

    Chapter Integrated Print Management System Integrated Print Management System The 6600 CRP has a new feature that automatically monitors and communicates the status of the ribbon life to help the operator know when to change ribbons. Using an ink delivery system called the Cartridge Ribbon System (CRS), the printer can automatically detect when a new or used ribbon is loaded, and all ribbon properties.

  • Page 39: Loading A Used Ribbon Cartridge

    Loading a Used Ribbon Cartridge Loading a Used Ribbon Cartridge You can take the ribbon cartridge off the printer and reload it at a later time. The ribbon life gauge automatically updates to reflect the correct remaining capacity. NOTE: Since the ribbon usage information is stored on the ribbon cartridge, you can reload a partially used cartridge onto a different printer.

  • Page 40: Changing Ribbon Cartridge

    Chapter Integrated Print Management System Changing Ribbon Cartridge Before changing the ribbon cartridge, determine whether at the end of ribbon life, you want to make the print lighter (extend the ribbon life) or darker (shorten the ribbon life). If you want to make the print lighter or darker, go to “Ribbon End Point”...
  • Page 41 Changing Ribbon Cartridge Ribbon Tab (2) Ribbon Cartridge Ribbon Tension Knob Tab Slot (2) Air Shroud Assembly Figure 21. Installing the Ribbon Cartridge 5. Remove the ribbon slack on the new ribbon cartridge by turning the ribbon tension knob clockwise. CAUTION Do not turn the ribbon tension knob counterclockwise.
  • Page 42 Chapter Integrated Print Management System Ribbon Cartridge Ribbon Mask Hammerbank Cover Ribbon Ribbon Tension Knob Ribbon Cartridge Figure 22. The Ribbon Cartridge Snapped in Place 7. Rock the cartridge downward, making sure that the ribbon goes between the guide and the mask (see Figure 22). You will feel it snap into place. CAUTION Make sure that the ribbon does not twist or fold over.

  • Page 43: Configuration Menus

    Configuration Menus Configuration Overview To print data, the printer must respond correctly to signals and commands received from the host computer. Configuration is the process of matching the printer's operating characteristics to those of the host computer and to specific tasks, such as printing labels or printing on different sizes of paper. The characteristics which define the printer's response to signals and commands received from the host computer are called configuration parameters.

  • Page 44: Saving Parameter Settings

    Chapter Configuration Overview Saving Parameter Settings The parameter settings that you have changed can be permanently stored in the printer’s memory as a configuration. See “Auto Save Configuration” on page 47. and “Saving Your New Configuration” on page 47. You may also save your new configurations using the PTX_SETUP command host control code.

  • Page 45: Changing Parameters Example

    Changing Parameters Example Press to confirm selection. MENU/ENTER Press simultaneously to lock and unlock the ENTER key. Lock or Unlock settings of the ENTER key at power is defined in the Panel Lock Menu. The ENTER key is unlocked by default. To experiment with navigating the menus, use the example on the next page as a tutorial.
  • Page 46 Chapter Configuration Overview Step Press Notes Make sure the printer is on. OFFLINE ONLINE OFFLINE Press to enter Menu mode. MENU/ENTER QUICK SETUP OFFLINE OPERATOR MENU UNTIL OPERATOR MENU FONT OPERATOR MENU FORMS UNTIL FORMS Length (Lines) Length (Lines) The * indicates this choice is active. Length (Lines) Press until the desired selection or value displays.

  • Page 47: Auto Save Configuration

    Auto Save Configuration Step Press Notes 12B. ONLINE Places the printer online without ONLINE CONFIG 1 permanently saving the configuration changes. The printer is ready for operation. Auto Save Configuration After any changes are made to the configuration menu items, you will be prompted to save the changes to “Config #”...
  • Page 48 Chapter Configuration Overview Example 1 This example shows how to save a configuration as a numbered configuration, then later print it. Step Press Notes Make sure the printer is on. OFFLINE ONLINE OFFLINE Press to enter Menu mode. MENU/ENTER QUICK SETUP OFFLINE CONFIG MENU UNTIL...
  • Page 49 Saving Your New Configuration Step Press Notes CONFIGURATIONS Save Config. CONFIG MENU CONFIGURATIONS CONFIG MENU PRINTER UNTIL PRINTER Ser/Par Emul PRINTER Report Report Current Short* Report Current Full Report The selected configuration is printed. MENU/ENTER Current Full* ONLINE ONLINE CONFIG 1 If you printed out the configuration, store it in a safe place.
  • Page 50 Chapter Configuration Overview Example 2 This example shows how to save a configuration as a named configuration. Step Press Notes Make sure the printer is on. OFFLINE ONLINE OFFLINE Press to enter MENU mode. MENU/ENTER QUICK SETUP OFFLINE CONFIG MENU UNTIL CONFIG MENU PRINTER...
  • Page 51 Saving Your New Configuration Step Press Notes CONFIG 2 Cycle through the choices until “T” displays. TONFIG 2 UNTIL CONFIG 2 Saves the first character. T_NFIG 2 CONFIG 2 Cycle through the choices until “E” displays. TENFIG 2 UNTIL CONFIG 2 Saves the second character.
  • Page 52 Chapter Configuration Overview Step Press Notes CONFIGURATIONS Name Config. CONFIGURATIONS Save Config. UNTIL Save Config. CONFIG 1* Save Config. TEST 2 now appears as one of the TEST 2 configuration choices. Saving Configuration MENU/ENTER Save Config. Your configuration is saved as TEST 2. TEST 2* ONLINE ONLINE...

  • Page 53: 6600 Crp Main Menu

    Saving Your New Configuration 6600 CRP Main Menu If Ethernet is installed OFFLINE Available to ZTP models Quick Operator Config TCP/IP Setup Menu Menu Menu Menu page 54 page 167 page 57 page 70 page 96 Host Interface ZTP Data Time Font Printer Ethernet Address...

  • Page 54: Quick Setup

    Chapter Quick Setup Quick Setup * = Factory Default If Ethernet is installed Quick Setup (from page 53) Ribbon Configuration Host Ethernet Emulation Interface Address Ribbon End Point Save Active Host IP Address Ser/Par Emul Darker +6 CONFIG 1 to Auto Switching* Subnet Mask Tally ANSI...
  • Page 55 Saving Your New Configuration Host Interface The Host Interface menu enables you to select and configure interfaces between the printer and your host computer. Options include: • Auto Switching (default). See page 85. • Centronics • Serial • IEEE 1284 •...
  • Page 56 Chapter Quick Setup Genicom Parameter Tally ANSI P5000 P6000 P600 ANSI Character Set Latin 1 Code Pg 437 Code Pg 437 Latin1 Latin1 OCR-A ANSI ANSI ANSI ANSI ANSI OCR-B ANSI ANSI ANSI ANSI ANSI Auto CR Line Wrap Wrap LF Code 7F FILL FILL...

  • Page 57: Ztp Menu

    Saving Your New Configuration Ribbon • Ribbon End Point. This parameter adjusts the point at which the system will declare the ribbon as being expended. The life count is from 100% to 0%, but if a darker setting is selected, 0% will be reached more quickly. If a lighter setting is selected, the system will extend the time it takes to reach 0%.

  • Page 58: Font Submenu

    Chapter Operator Menu Font Submenu This submenu contains parameters that control how print looks on a page and the display language. The Level 2 headings are as follows: FONT * = Factory Default (from page 57) Ser/Par Ser/Par Matrix OCRA Ser/Par Language Character Set...
  • Page 59 Font Submenu Ser/Par Language This option allows you to select the language used by emulations attached to the Parallel, Serial, and LAN ports. The language selection defines the character substitutions in Hex locations 23, 24, 40, 5B, 5C, 5D, 5E, 60, 7B, 7C, 7D, and 7E.
  • Page 60 Chapter Operator Menu Refer to the 6600 Applications Manual for details on character sets. The possible selections are: Latin1 8859-1 Latin2 8859-2 Latin9 8859-15 Cyrillic 8859-5 Greek 8859-7 turkish 8859-9 Code Page 437 Code Page 850 Code Page 851 Code Page 852 Code Page 855 Code Page 857 Code Page 863...
  • Page 61 Font Submenu OCRA Density This parameter sets the density for the OCRA font. There are three options: • Standard (default). Prints at 85 DPI vertical. • Enhanced. This option causes the OCR-A font to print at 96 DPI vertical. • High.
  • Page 62 Chapter Operator Menu Zero As an aid in distinguishing zeros from the uppercase letter O, you can choose to have your zeros slashed (Ø). Default is open (non-slashed) zeros. Compressed 8 Use this option for higher lines per inch settings to decrease the space between the dot-rows of the printed characters.

  • Page 63: Forms Submenu

    Forms Submenu Forms Submenu This submenu is used for setting form specifics. The Level 2 headings are as follows: * = Factory Default FORMS If installed 2000 lpm printer only (from page 57) Length Length Top Margin Bottom Margin Left (Lines) (Inches) Margin...
  • Page 64 Chapter Operator Menu Length (Lines) To define the length of your form in lines, select a form length from 1 to 255. The default option is 66. Length (Inches) To define the length of your form in inches, select a form length from 0.1 to 25.5 inches.
  • Page 65 Forms Submenu Right Margin You can place the right margin at any column number across the page. Similar to the Left Margin parameter, the range of this value depends on the CPI. Column 136 is the Default selection. The right margin must be greater than or equal to the left margin.
  • Page 66 Chapter Operator Menu Ribbon End Point This parameter adjusts the point at which the system will declare the ribbon as being expended. The life count will always be from 100% to 0%, but if a darker setting is selected, 0% will be reached more quickly. If a lighter setting is selected, the system will extend the time it takes to reach 0%.
  • Page 67 Forms Submenu RBN End Action This menu allows the user to override the normal ribbon low warning and ribbon out conditions. • Stop At RBN End (default). When this factory default option is selected, the printer displays a warning message when a ribbon low condition is reached, and displays a ribbon out fault when ribbon life reaches 0%.
  • Page 68 Chapter Operator Menu Unidirectional The Unidirectional feature affects both print quality and printing speed. By setting this feature, you can configure the printer to print in both directions of the shuttle sweep (bidirectional), or to print in one direction only (unidirectional).

  • Page 69: Vertical Format Units (Vfu) Submenu

    Vertical Format Units (VFU) Submenu Vertical Format Units (VFU) Submenu This submenu is used for setting VFU specifics. The Level 2 headings are as follows: * = Factory Default (from page 57) Skip Enable Channel When Disable* Before* Enable 1-12 After Unused VFU Enable...

  • Page 70: Config Menu

    Chapter Config Menu Config Menu Config * = Factory Default Menu (from page 53) Printer Codes Graphics Configurations Host Parallel Serial Interface Hotport Hotport (see below) (see page 73) (see page 78) (see page 83) (see page 85) (see page 86) (see page 86) Ethernet Serial I/O...
  • Page 71 Printer Submenu Ser/Par Emul This parameter allows you to define which set of printer control commands will be emulated for data received on the Serial and Parallel ports. The emulation settings are automatically saved in the Powerup Configuration. Tally ANSI is the default selection. When a new emulation setting is entered through the Printer Control Panel, emulation dependent parameters in the Current and Powerup configurations are changed to match the default settings for the elected emulation.
  • Page 72 Chapter Config Menu LAN Emul (LAN Interface only) Used to select the emulation attached to the Ethernet port when using the Ethernet interface. Possible selections are the same as the Ser/Par Emul option (page 71). Powerup This parameter sets the printer either Online or Offline when the power switch is turned on.

  • Page 73: Codes Submenu

    Codes Submenu • Power up. This produces a complete printed report of the power-up printer configuration. The report contains a header which identifies the installed software and interface, and any options that are installed. • All. This produces a complete printed report of all saved printer configurations.
  • Page 74 Chapter Config Menu Auto LF (Line Feed) Auto LF causes the printer to perform a Line Feed each time it receives a Carriage Return Control Code. This parameter is available for host systems that cannot send a Line Feed Control Code. Some computers automatically generate a Line Feed of their own at the right margin.
  • Page 75 Codes Submenu For example, the application may embolden the word "bold" in the following sentence by sending: This is bold<CR> bold<CR><LF> "Double Strike" corresponds to the previous POCR=ON setting. With "Double Strike" selected, bolding is accomplished by re-striking the characters at the same dot positions.
  • Page 76 Chapter Config Menu Code 7F This parameter allows you to dictate how the printer will react when it receives a Hexadecimal code 7F. The default value depends on the emulation. (See the Emulation Parameter, page 54.). • Ignore. The code is ignored. •...
  • Page 77 Codes Submenu PTX ALS Defines the single line Alternate Line Spacing used by the ACK (Hex 06) command in the Printronix P5000 emulation. The possible selections are 8 or 10.3 which define the line density. The default value is 8. NOTE: The PTX SFCC and PTX ALS options will only appear if the Printronix P5000 emulation is selected with the Ser/Par Emul control panel option.

  • Page 78: Graphics Submenu

    Chapter Config Menu Graphics Submenu This submenu allows you to configure certain aspects of the Graphic Processing Options on your printer. The Level 2 headings are as follows: * = Factory Default GRAPHICS If MTPL emulation is selected If Genicom ANSI emulation is selected (from page 70) Code V Smooth...
  • Page 79 Graphics Submenu Code V Cmd Char This parameter allows you to change the CVCC. The Default for this parameter is the ASCII caret ( ^ , Decimal 94, HEX 5E) character. Smooth Size This parameter controls the size at which block characters are smoothed. The default is 3, which means that size 3 block characters will be smoothed, but size 2 block characters will not.
  • Page 80 Chapter Config Menu Modplot This parameter eliminates the need to send an Align to Line Boundary Command (Tally ANSI) or an extra Line Feed (LF) Control Code (Printronix) when exiting Plot Mode. Whenever you are using Plot Mode in these emulations, set this parameter to ON to avoid graphic and text alignment problems.
  • Page 81 Graphics Submenu Zero As an aid in distinguishing zeros from the uppercase letter O you can choose to have your zeros slashed (Ø). Slashed is the default selection. This parameter is used by Code V and PGL. SFCC This parameter allows you to change the Special Function Command Character.
  • Page 82 Chapter Config Menu MTPL Bar Setting this parameter will print out barcodes for MTPL. Otherwise, the sequences will be printed as text only. The selections are ON and OFF, with the default being OFF. This parameter only affects the MTPL emulation. MTPL Secured In secured mode (ON), normal text characters can be printed to the right or left of barcodes.

  • Page 83: Configurations Submenu

    Configurations Submenu Code V Grph Den This parameter allows for graphic items in Code V to be printed in either single density (Normal) or double density (High). The default is Normal. Configurations Submenu Your printer can save up to eight personalized configurations, so you don't have to recreate configurations you use frequently.
  • Page 84 Chapter Config Menu Power-Up Config. You can specify which of the nine configurations (Factory or CONFIG 1 - CONFIG 8) will be the power-up configuration. Name Configs You may specify a 15-character name which can be used to refer to a configuration.

  • Page 85: Host Interface Submenu

    Host Interface Submenu Host Interface Submenu HOST * = Factory Default INTERFACE If Ethernet is installed (from page 70) Active Host Auto Switching* Centronics Serial IEEE 1284 Ethernet The Host Interface Submenu enables you to select one of many types of interfaces between the printer and your host computer.

  • Page 86: Parallel/Serial/Ethernet Hotport Submenu

    Chapter Config Menu Parallel/Serial/Ethernet Hotport Submenu * = Factory Default CONFIG If Ethernet is installed MENU (from page 70) Parallel Serial Ethernet Hotport Hotport Hotport Port Type Timeout Port Type RS 232* 30 sec* Centronics* IEEE 1284 Disable (10-60) Disable Trickle Time Switch Out On Auto Trickle...
  • Page 87 Parallel/Serial/Ethernet Hotport Submenu Trickle Time When the printer is printing data from a host and a second job is received by the printer from a different host, Trickle Time prevents the second host from timing out while it is waiting for its data to be printed. To support this feature, the port has to be able to accept data from the host and store it for future use.

  • Page 88: Serial I/O Submenu

    Chapter Config Menu Serial I/O Submenu * = Factory Default Serial I/O (from page 70) Baud Data Stop Parity 8th Bit Protocol Bits Bits 8 Bits* None* Data* Ready/Busy* 1 Bits* 1200 7 Bits 2 Bits Unused Xon/Xoff 2400 Even Enq/Ack 4800 Etx/Ack...
  • Page 89 Serial I/O Submenu Stop Bits Sets the number of stop bits in the serial data word. Either one or two stop bits can be selected. The setting must match the corresponding stop bit setting in the host computer. The default is one stop bit. Parity Set for odd parity, even parity, or no parity.
  • Page 90 Chapter Config Menu The bit pattern is as follows: Table 2. Status Enquiry Bit Pattern Meaning/Value Parity if 7 bit data and parity enabled (MSB) Always a 1 1 if Data Overrun Always a 0 1 if Parity Error 1 if Paper System Error or Platen Open 1 if Offline 1 If Busy (fault or buffer full) (LSB) The Status Enquiry feature is slightly different when the current emulation is...
  • Page 91 Serial I/O Submenu DTR Function This parameter allows the user to change the operation of the Data Terminal Ready (DTR) line on the printer interface. The DTR line is used to indicate printer status to the host computer. • Busy (default). In this mode the DTR line is used to signal the host to stop sending data because the printer buffer is 85% full.

  • Page 92: Parallel I/O Submenu

    Chapter Config Menu Unsolicit Rpt This option enables or disables Printer Device Status Reports to be sent to the host when a reportable status or error condition has occurred. • No (default). Disables all unsolicited status reports from the printer. •...
  • Page 93 Parallel I/O Submenu Resp. Polarity The Resp. Polarity parameter must be set to match the response polarity of your host computer. • Standard (default). Does not invert the response signal. • Inverted. Inverts the response signal sent to the host computer. Busy On Strobe •...

  • Page 94: Intellifilter Submenu

    Enable Enable Delete Intellifilter is a programmable feature, standard on TallyGenicom line printers. Without having to touch a well-working host system, Intellifilter permits users to free their systems from hard coded dependence on a specific printer that is no longer maintainable, or able to meet the demands of the application.

  • Page 95: File Management Submenu

    File Management Submenu File Management Submenu * = Factory Default File Management (from page 70) Overwrite View File Delete Flash Optimize Print Files List Files Avail. & Reboot File List Enable* Disable Overwrite Files • Enable (default). Allows files to be overwritten. •...

  • Page 96: Cst/Paa Submenu

    Chapter TCP/IP Menu CST/PAA Submenu Refer to the PrintNet Enterprise Suite User’s Manual. PTX Setup Option Submenu * = Factory Default PTX Setup Option (from page 70) Setup Setup SFCC Parse Enable* 21h* Ignore (1-FF hex) Disable Selects the Special Function Control Code for the PTX_SETUP command and functions.

  • Page 97: Ethernet Address

    ETHERNET ADDRESS ETHERNET ADDRESS * = Factory Default ETHERNET ADDRESS (from page 96) IP Address Subnet Gateway DHCP Mask Address Address xxx.xxx.xxx.xxx xxx.xxx.xxx.xxx xxx.xxx.xxx.xxx hhhhhhhhhhhh Disable* Enable IP Address A numeric address such as 123.45.61.23 which identifies a printer or server in a LAN or WAN.

  • Page 98: Ethernet Params

    Chapter TCP/IP Menu ETHERNET PARAMS ETHERNET * = Factory Default PARAMS (from page 96) NetBIOS ASCII Keep Alive Ethernet Job Control Protocol Data Port Timer Speed Enable* 9100* Standard* 3 Minutes* Auto Select* Disable 1023 - 65535 2 - 10 Minutes 10 Half Duplex Enhanced 10 Full Duplex...
  • Page 99 ETHERNET PARAMS Ethernet Speed This menu option only appears if a 10/100Base-T network interface card (NIC) is installed. The Ethernet Speed menu allows compatibility with different systems and networks. The factory default is Auto Select. • Auto Select. (default) This setting tells the 10/100Base-T NIC to perform an auto detection scheme and configure itself to be 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex.

  • Page 100: Test Menu

    Chapter Test Menu Test Menu * = Factory Default Test Menu (from page 53) Fault Pattern Diag Override Paper Shuttle Panel Panel Motion Lock Display Enable* 5 Seconds* Off* Configuration* Disable 1 to 60 Seconds Ribbon Life Printer Tests Test Width Paper Out System Print...

  • Page 101: Pattern Submenu

    Pattern Submenu Pattern Submenu The Pattern Submenu has a series of printer self-tests which have predefined patterns used to test the basic printer functions. Printer Tests These tests are used to check the print quality and operation of the printer. NOTE: Your authorized service representative will typically run the tests.
  • Page 102 Chapter Test Menu • Dice 5. Pattern used to measure print density. • Prnt Ribbon Log. Prints log of cartridge installed in the printer. • Checker. For factory use. This pattern helps identify marginal printhead elements, quality of edge sharpness, and uneven print quality. •...

  • Page 103: Fault Override Submenu

    Fault Override Submenu Fault Override Submenu This submenu deals with the configuration of fault information from the engine. Paper Motion This parameter controls paper motion fault reporting status. This setting is saved in NVRAM so that it does not need to be set up on powerup each time. Shuttle Off The amount of time the shuttle continues moving after no data is received.

  • Page 104: 6600 Crp Clear Menu

    Chapter 6600 CRP Clear Menu 6600 CRP Clear Menu Clear Menu Buffers All Configs Current Reset Config Buffers Clears all buffers. It also resets the application task to its initial state. All Configs Copies the Factory Configuration settings into all saved configurations. Any parameters not listed on the Configuration Report, such as special characters downloaded from the host computer, are unaffected.

  • Page 105: Interfaces

    Interfaces Overview This chapter describes the host interfaces provided with the printer. The printer interface is the point where the data line from the host computer plugs into the printer. The interface processes all communications signals and data to and from the host computer. Plus, with the Auto Switching feature, you can configure the printer to accept several interfaces at the same time (see “Auto Switching”...

  • Page 106: Centronics Parallel Interface

    Chapter Centronics Parallel Interface Optional Host Interfaces: • Ethernet 10/100BaseT In addition to descriptions for the multi-line interfaces, this chapter also provides instructions for configuration of terminating resistors for the parallel interfaces. Centronics Parallel Interface Table 4. Centronics Interface Connector Pin Assignments Input Signals Output Signals Miscellaneous...

  • Page 107: Centronics Parallel Interface Signals

    Centronics Parallel Interface Signals Centronics Parallel Interface Signals Data Lines 1 through 8. Provides eight standard or inverted levels from the host that specify character data, plot data, or a control code. Data Line 8 allows access to the extended ASCII character set. You may enable or disable this line via the Data Bit 8 parameter on the Centronics submenu.

  • Page 108: Ieee 1284 Parallel Interface

    Chapter IEEE 1284 Parallel Interface IEEE 1284 Parallel Interface The 1284 supports three operating modes, which are determined by negotiation between the printer and the host. Compatibility Mode This mode provides compatibility with Centronics-like host I/O (see Table 5). Data is transferred from the host to the printer in 8-bit bytes over the data lines.

  • Page 109: Signals

    Signals Signals Table 5 lists each of the signals associated with the corresponding pins on the 1284 interface. Descriptions of the signals follow. Table 5. 1284 Signals Type of Mode Source of Data Compatible Nibble Byte Host nStrobe HostClk Host/Clk Host/Printer Data 1 (LSB) Host/Printer...
  • Page 110 Chapter IEEE 1284 Parallel Interface Table 5. 1284 Signals (continued) Type of Mode Source of Data Compatible Nibble Byte Signal Ground (Data 7) Signal Ground (Data 8) Signal Ground (PError, Select, nAck) Signal Ground (Busy, nFault) Signal Ground (nAutoFd, nSelectIn, nInit) Host nInit Printer...

  • Page 111: Terminating Resistor Configurations

    Terminating Resistor Configurations nData Available / nPeripheral Request. Driven by the printer. Indicates the printer has encountered an error. (Data bits 1 and 5 in Nibble mode.) 1284 Active / nAStrobe. Driven by the host. A peripheral device is selected. Host Logic High—Driven by the host.

  • Page 112: Rs-232 Serial Interface

    Chapter RS-232 Serial Interface RP1 and RP2 Default: 470/1K Ohm Alt: 220/330 Ohm Figure 24. Terminating Resistors, V6 Controller Board Removal And Installation The procedure for removing and installing terminating resistors is provided in your Maintenance Manual. CAUTION This is an involved maintenance procedure. To avoid damage to the equipment, only a trained technician should perform this procedure.
  • Page 113 RS-232 RS-232 Table 6. Standard 500, 1000, 1500, and 2000 lpm Models RS-232 Serial Interface Connector Pin Assignments Input Signals Output Signals Miscellaneous Signal Signal Signal Receive Data (RD) Transmit Status & Control Chassis Ground Data (TD) Clear To Send (CTS) Request To Send (RTS) Signal Ground Data Set Ready (DSR)
  • Page 114 Chapter RS-232 Serial Interface...

  • Page 115: Reprogramming The Security Key

    Reprogramming the Security Key Reprogramming The Security Key The security key on the PSA3 controller board can be reprogrammed with a Software Program Exchange (SPX) module. The SPX is an intelligent module that plugs into the debug port on the back of printers equipped with the PSA3 “Hurricane”...
  • Page 116 Chapter Reprogramming The Security Key Debug Port Figure 25. Inserting The SPX into the Debug Port 4. Power on the printer. The printer will begin its boot-up sequence. 5. When the printer detects a valid SPX, the control panel displays: “NEW SPX DETECTED PRESS ENTER”...

  • Page 117: Troubleshooting

    Troubleshooting Cleaning Requirements Clean the printer every six months or after every 1000 hours of operation, whichever occurs first. If the printer is located in a dusty area or is used for heavy duty printing, clean it more often. WARNING Disconnect the power source before cleaning the printer.

  • Page 118: Interior Cleaning

    Chapter Cleaning Requirements Interior Cleaning Over time, particles of paper and ink accumulate inside the printer. This is normal. Paper dust and ink build-up must be periodically removed to avoid degraded print quality. Most paper dust accumulates around the ends of the platen and ribbon path.
  • Page 119 Interior Cleaning To clean the interior of the printer perform the following steps. 1. Power off the printer and unplug the printer power cord. 2. Open the printer cover. 3. Fully raise the platen lever. 4. Unload the paper. 5. Remove the ribbon catridge. 6.

  • Page 120: Diagnosing Problems

    Chapter Diagnosing Problems Diagnosing Problems This section is designed to help you fix problems which may arise with normal printer operation. Bar Code Verification The most important consideration when printing a bar code is to ensure that the bar code will be scanned properly. Incorporating a bar code quality procedure in the printing process is the best way to ensure that bar codes are being printed correctly.

  • Page 121: Printing A Hex Dump

    Printing A Hex Dump Printing A Hex Dump A hex code printout (or hex dump) is a translation of all host interface data to its hexadecimal equivalent, listing all ASCII character data received from the host computer with their corresponding two-digit hexadecimal codes. Hex dumps are used to troubleshoot printer data reception problems.

  • Page 122: Fault Messages

    Chapter Diagnosing Problems Fault Messages If a fault condition occurs in the printer, the status indicator on the control panel flashes on and off, and the message display indicates the specific fault. Fault messages are summarized in Table 8. Displayed faults fall into one of two categories: •...
  • Page 123 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? 48V CIRCUIT* Either the power supply is Contact your authorized service See User Manual not generating a proper representative. 48 Volts or the controller board is not detecting a 48 Volt output from the power supply board.
  • Page 124 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? B19 ERROR: DC The message indicates Cycle power to see if the message RETURNED* an incorrectly assembled clears, if not, contact your and tested machine. authorized service representative.
  • Page 125 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? B42 ERROR: SDRAM Printer boot initialization Cycle power to see if the message ROWS NOT tests detect incorrect clears, if not, contact your ALLOWED* SDRAM. authorized service representative.
  • Page 126 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? B54 ERROR: SDA The SDRAM or a PCI Cycle power to see if the message LINE STUCK LOW card is shorting out the clears, if not, contact your serial data bus on the authorized service representative.
  • Page 127 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? CRTG NOT SETx The ribbon cartridge is Make sure a ribbon cartridge is Re-install RBN not properly positioned. installed in the printer. Make sure the ribbon cartridge is seated properly.
  • Page 128 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? DRVR CIR BAD* Driver Circuit Bad. The Contact your authorized service hammer coil count test representative. failed. E00 EXE @ ADDR0 An illegal or unsupported Cycle Power.
  • Page 129 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E03A DSI HASH L An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 130 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E03F DSI CXOWX An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 131 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E04C ISI PROTEC An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 132 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E13 TRACE INT An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 133 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E20 SYS MANAGE An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 134 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E31D EVENT 3 BP An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 135 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E32A CND 0 BP An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 136 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E32F CND 5 BP An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 137 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? E99 UNKNOWN INT An illegal or unsupported Cycle Power. Run the print job See User Manual instruction was attempted again. If the message appears, in the application load the latest emulation program.
  • Page 138 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? ERROR: LOCKED nnnnnnnnnnnnnnnnnnnn Contact your authorized service SN=nnnnnnnnnnnnnnn n is the serial number of representative. nnnnnn the printer’s security key. The SPX serial number does not match the printer’s serial number and cannot be used with...
  • Page 139 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? ERROR: WRONG The SPX inserted in the Contact your authorized service debug port is not representative. intended for this model printer or this OEM. ERROR: WRONG The SPX inserted in the Contact your authorized service PRINTER TYPE...
  • Page 140 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? FRAMING ERROR The printed output may Make a configuation printout. Set contain random ! printer serial interface parameters to (exclamation point) match host configuration settings characters.
  • Page 141 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? <Online, etc...> Status message: The No action is required. If the Half Speed Mode controller samples the message appears often, contact operating temperature of your authorized service key components of the representative.
  • Page 142 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? ILLGL OPR ACCSS* Illegal Operand Contact your authorized service Accessed. Firmware representative. error on controller board. INCOMPAT E-NET Incompatible network Install a compatible NIC to the Remove NIC interface card (NIC) is printer then reboot.
  • Page 143 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? NEW SPX DETECTED The printer detects an Contact your authorized service PRESS ENTER SPX installed at the representative. debug port and the SPX is valid for the printer. NON VOLATILE Large emulations reduce Contact your authorized service...
  • Page 144 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? PAP INVLD PARM* Paper Invalid Parameter. Contact your authorized service Firmware error on representative. controller board. PAP NOT SCHED* Paper Not Scheduled. Contact your authorized service The paper feed process representative.
  • Page 145 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? PRINTER HOT This message indicates Check printer environment. If hot or internal temperatures dusty, relocate printer. Contact your over 60° Celsius (140° authorized service representative if Fahrenheit).
  • Page 146 Chapter Diagnosing Problems Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? RIBBON DRIVE The controller board does Contact your authorized service not detect a ribbon drive representative. motor. RIBBON STALL The controller board does Check the ribbon path for jams. not detect ribbon Turn the Ribbon Tension Knob movement.
  • Page 147 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? SHUTL INV PARM* Shuttle Invalid Contact your authorized service Parameter. Firmware representative. error on controller board. SHUTL OVR SPEED* The shuttle is oscillating Contact your authorized service too rapidly.
  • Page 148 Contact your authorized service Corrupted. Firmware representative. error on controller board. TCP PORT BUSY Error message reported Refer to the TallyGenicom 6600 by the Printer Manager Maintenance Manual. when ethernet interface option is installed. The network address given in the printer properties was reached, but the printer port is busy.
  • Page 149 Fault Messages Table 8. LCD Message Troubleshooting Table Can User Displayed Message Explanation Solution Correct? WELD NOT DETECT The cartridge weld was Contact your authorized service See User Manual not detected. representative. WELD RESET ERROR The cartridge weld Contact your authorized service See User Manual circuitry lost power.
  • Page 150 Chapter Diagnosing Problems...

  • Page 151: A Printer Specifications

    Printer Specifications Ribbon Cartridge Specifications Europe, North & South America Brazil & Middle East, excluding Brazil India & Africa 255670 Extended Life ASCII (-401) 4-Pack (-402) 4-Pack (-403) 4-Pack (-101) 1-Pack (-102) 1-Pack (-103) 1-Pack NOTE: Ribbon cartridge (P/N 255670) does not work with the 500 lpm printer. 255661 Standard Life ASCII (-101) 1-Pack (-102) 1-Pack...

  • Page 152: Paper Specifications

    Appendix A Paper Specifications Paper Specifications Type: Edge-perforated, fan-fold, 3 to 17 inches (7.62 to 43.18 cm) wide, 2 to 12 inches (5.08 to 30.48 cm) long. SureStak Power Stacker option works with forms 5 to 12 inches (12.7 to 30.48 cm) long and up to 16 inches (41 cm) wide with- out the paper tent or 15.5 inches (39.5 cm) wide with the paper tent installed.

  • Page 153: Labels

    Labels On Backing: One-part continuous perforated fanfold back form. Labels must be placed at least 1/6 inch (0.42 cm) from the fan-fold perforation. Backing adhesive must not be squeezed out during printing. Sheet Size: 3 to 17 inches (7.62 to 43.18 cm) wide, including the two standard perforated tractor feed strips.

  • Page 154: Acoustic Noise Level

    Appendix A Acoustic Noise Level Acoustic Noise Level Acoustic Noise Levels Pedestal Enclosed Cabinet Models per ISO 9296 Models Pedestal Models Printing 50 dB (500 lpm/1000 lpm) 65 dB 58 dB (500 lpm) 52 dB (1500 lpm) 65 dB 60 dB (1000 lpm) 55 dB (2000 lpm) 63 dB (1500 lpm) 6.8 Bel...

  • Page 155: Electrical Characteristics

    Electrical Characteristics Voltage (+/-10%) Freq (+/-10%) Amps Watts BTU/Hr 6605 AC 100-120V 50-60 Hz 275W AC 200-240V 50-60 Hz 1.5A 275W 6610 AC 100-120V 50-60 Hz 3.5V 300W 1025 AC 200-240V 50-60 Hz 1.6A 300W 1025 6615 AC 100-120V 50-60 Hz 4.5A...

  • Page 156: Printing Rates

    Appendix A Printing Rates Printing Rates The printing speed of text is measured in lines per minute (lpm) and is a function of the selected font and the vertical dot density. Printing speed is independent of the number of characters configured in the character set repertoire.

  • Page 157: B Ascii Character Set

    ASCII Character Set B7 B6 BITS OCTAL equivalent DECIMAL equivalent 1 0 1 1 HEX equivalent ASCII Character Name BITS COLUMN (XON) 0 0 1 0 " 0 0 1 1 (XOFF) 0 1 0 0 0 1 0 1 0 1 1 0 &...
  • Page 158 Appendix B...

  • Page 159: C Zero Tear Printer

    Zero Tear Printer Overview The 6600 Zero Tear (ZT) printer can print a form and present it for tear off without losing a form between print jobs. The printer automatically presents the current print line to the tear bar when it finishes printing and no data are being sent to the printer.

  • Page 160: Operation

    Appendix C Operation Operation Position The Paper Input And Adjust The Paper Guides Outer Paper Center Paper Guide Leaf (2) Guide Leaf Front Paper Guide Leaf (3) Paper Guide Knob (3) Figure 28. Adjusting The Paper Guides NOTE: Ensure that the paper guides are not damaged. 1.
  • Page 161 Position The Paper Input And Adjust The Paper Guides Center Paper Guide Leaf Outer Paper Guide Leaf (2) Paper Tractor (2) Outboard Mount Center Mount Block (2) Block Figure 29. Adjusting Paper Guide Leaves 4. Slide the left outboard mount block so that the left outer paper guide leaf is .5 inches from the left tractor.

  • Page 162: Load Paper

    Appendix C Operation Load Paper Outer Paper Guide Leaf (2) Tractor Door Center Paper Guide Leaf Front Paper Guide Leaf (3) Paper Paper Out Sensor Edge Paper Label Paper 183486 REV B Paper Supply Figure 30. Loading Paper Onto The Printer 1.
  • Page 163 Load Paper Paper Tractor (2) Tractor Lock (2) Figure 31. Adjusting the Horizontal Paper Tension 5. Adjust the paper web tightness by sliding the right tractor to remove slack or to adjust for various paper widths. (See Figure 31.) 6. Lock the tractors in position by pressing down on the tractor locks. Paper Tear Bar Figure 32.

  • Page 164: Position The Paper Out Sensor

    Appendix C Operation Position The Paper Out Sensor At least 2 inches Sensor Knob Paper Out Sensor Paper Figure 33. The Paper Out Sensor The paper out sensor indicates when the printer runs out of paper. (The sensor does not work with black backed forms.) Unlike the standard pedestal printer, the ZT printer requires you to load the paper through the paper out sensor slot (Figure 30 and Figure 33).

  • Page 165: Set The Tear Bar Distance

    Set The Tear Bar Distance Set The Tear Bar Distance To set the tear bar distance, do the following steps: 1. Make sure the printer is offline. 2. Press MENU/ENTER key to enter the menu. 3. Press the right arrow until “OFFLINE/ZTP Menu”...

  • Page 166: Set The Top Of Form

    Appendix C Operation Set The Top Of Form Paper Tear Bar Form Advance Knob Figure 35. Setting The Tear Off Position The ZT printer uses the tear bar as the reference point for setting the tear off position. To set the position of the forms perforation to the tear bar, use the TOF button as follows: 1.

  • Page 167: Ztp Menu

    Set The Top Of Form ZTP Menu The ZTP menu includes the ability to enable and disable features unique to the Zero Tear printer (ZTP), set the tear bar distance, set the auto present data time, and set the auto present wait time. This section defines these options.

  • Page 168: Performance Limitations

    Appendix C Performance Limitations ZTP Function This option enables or disables all unique ZTP functions. The default is Enable. NOTE: When the ZTP Function is enabled, the View and Eject keys are disabled and Slow Paper Slew is enabled. Performance Limitations Forms Type The paper feed tractors on the ZT printer push the paper up through the print station instead of pulling it through, as in the standard pedestal printer.
  • Page 169 Set The Top Of Form Paper Jams Printer jams can occur if you tear off the form incorrectly. If you experience two or more paper jams per box of forms, follow these guidelines to help reduce jams: • Position the lower paper guides properly •...
  • Page 170 Appendix C Performance Limitations...

  • Page 171: D Surestak™ Power Stacker

    SureStak Power Stacker ™ Introduction The SureStak Power Stacker is a factory-installed option that augments the paper feed system of cabinet model printers. It is designed to work with forms 5 to 12 inches long (12.7 to 30.5 cm) and up to 16 inches (41 cm) wide without the paper tent installed or up to 15.5 inches (39.5 cm) wide with the paper tent installed.
  • Page 172 Appendix D Stacker Operation Setting Up The Power Stacker 1. Set the printer power switch to | (On). 2. If necessary, press the ONLINE key on the front panel or rear control panel to take the printer offline. (Figure 37.) 3.
  • Page 173 4. If the paper you will use is not wider than 15.5 inches (39.5 cm) pull out the paper tray and install the wireform paper tent. (Figure 38.) If the paper is wider than 15.5 inches (39.5 cm) leave the paper tent out of the printer. Paper Tent Paper Tray Note the positions of...
  • Page 174 Appendix D Stacker Operation 5. Push or pull the paddle shaft toward the front or the rear of the printer to set the desired paper length. Align the indicator notch on the bearing bracket with the paper length indicator. The power stacker can handle paper or forms from 5 to 12 inches (12.7 to 30.5 cm) long.
  • Page 175 Loading And Starting The Power Stacker 1. Press the PAPER ADVANCE key and hand feed the paper down into the paper throat of the stacker. Continue to advance the paper until it reaches the paper tent (if installed) and feed three to five extra sheets into the stacker.
  • Page 176 Appendix D Stacker Operation...

  • Page 177: E Ptx_Setup Option

    PTX_SETUP Option Overview The PTX_SETUP commands are a superset of commands which allow the printer to perform several tasks by parsing commands either stored in flash or sent to the printer by the host. Commands range from printer configuration operations to file system operations. This appendix describes the PTX_SETUP commands.

  • Page 178: Commands

    Appendix E The PTX_SETUP Commands Commands This section provides a general description of how commands are formed. Each emulation has modes in which the PTX_SETUP commands could get missed. For this reason, it is highly recommended that all PTX_SETUP commands be placed between print jobs, rather than attempting to imbed them within jobs.
  • Page 179 Commands Table 10. PTX_SETUP Commands (Non-Platform Specific) Command Sub-Command Parameter Description CONFIG LOAD Cfg can be 0-8. The PTX_SETUP will load configuration Cfg. If configuration Cfg was not previously saved, the operator panel will display an error message and the current configuration will be kept.
  • Page 180 Appendix E The PTX_SETUP Commands Table 10. PTX_SETUP Commands (Non-Platform Specific) (continued) Command Sub-Command Parameter Description CONFIG OVERLAY This command overlays the configuration data that follows on existing configuration Cfg. Cfg must be 1-8 (or END). If Cfg does not exist then command is treated the same as DOWNLOAD.
  • Page 181 Commands Table 10. PTX_SETUP Commands (Non-Platform Specific) (continued) Command Sub-Command Parameter Description CONFIG PANEL LOCK This command locks the operator out of the printer’s configuration menu. UNLOCK This command unlocks the printer’s configuration menu and allows the operator access to the menus. By default, the menu is unlocked.
  • Page 182 Appendix E The PTX_SETUP Commands Table 10. PTX_SETUP Commands (Non-Platform Specific) (continued) Command Sub-Command Parameter Description FILE_IO RUNFILE File;Prop The RUNFILE command will open (DISK_IO) the file named File for printing. After the PTX_END command is processed, the contents of File will get printed before any more data is read from the host.
  • Page 183 Commands Summary of the CONFIG Command The UPLOAD and DOWNLOAD command can be used for uploading and downloading complete printer configurations. If a customer needs to configure 50 printers identically, the customer needs only configure one printer and UPLOAD the configurations. The UPLOADed configurations may then be DOWNLOADed to other printers eliminating the necessity for the operator to configure each printer manually.
  • Page 184 Appendix E The PTX_SETUP Commands Three things can limit the ability to save a file: insufficient RAM, insufficient Flash, and lack of empty file system entries. Flash can only be written once before it needs to be “optimized”. As a result, the maximum file size is limited to the largest unwritten block of Flash.

  • Page 185: F Customer Support

    (31) 24 6489 311 Asia Pacific (65) 6548 4114 China (86) 800-999-6836 http://www.tallygenicom.com/service/default.aspx TallyGenicom Supplies Department Contact the TallyGenicom Supplies Department for genuine TallyGenicom supplies. Americas (800) 733-1900 Europe, Middle East, and Africa 33 (0) 1 46 25 19 07 Asia Pacific...

  • Page 186: Corporate Offices

    Phone: (65) 6542 0110 Fax: (65) 6546 1588 Printronix Commercial (Shanghai) Co. Ltd 22F, Eton Building East No.555, Pudong Av. Shanghai City, 200120, P R China Phone: (86) 400 886 5598 Fax: (86-21) 5138 0564 Visit the web site at www.tallygenicom.com...

  • Page 187: G Communication Notices

    Any reference to an TallyGenicom product, program, or service is not intended to state or imply that only that TallyGenicom product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any TallyGenicom intellectual property rights may be used instead.
  • Page 188 Web sites. The materials at those Web sites are not part of the materials for this TallyGenicom product and use of those Web sites is at your own risk.

  • Page 189: Energy Star

    TallyGenicom participates in this program by introducing printers that reduce ® power consumption when they are not being used. As an E...

  • Page 190: Communication Statements

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. TallyGenicom is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 191 Properly shielded and grounded cables and connectors must be used in order to reduce the potential for causing interference to radio and TV communications and to other electrical or electronic equipment. TallyGenicom cannot accept responsibility for any interference caused by using other than recommended cables and connectors.
  • Page 192 Störquelle zu öergrvßern. Anmerkung: Um die Einhaltung des EMVG sicherzustellen sind die Geräte, wie in den TallyGenicom Handbüchern angegeben, zu installieren und zu betreiben. China Declaration: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may need to perform practical actions.

  • Page 193: Software License Agreement

    2. Source Code A source code version of eCos Software is available under the terms of the Red Hat eCos Public License v1.1 at www.printronix.com. TallyGenicom grants no rights whatsoever in the source code for the TallyGenicom Software. 3. No Warranty THE EMBEDDED SOFTWARE IS PROVIDED UNDER THIS LICENSE ON AN “AS IS”...
  • Page 194 You agree that this Agreement provides you no more rights with regards to warranty, support, indemnity or liability terms with respect to Red Hat, Inc., TallyGenicom Inc, or any contributor to the Embedded Software than that provided by the Red Hat eCos Public License v.1.1 or any express warranty that may be made by TallyGenicom, Inc.
  • Page 195 8. Red Hat Statement With Regards to eCos Software Part of the software embedded in this product is eCos - Embedded Configurable Operating System, a trademark of Red Hat. Portions created by Red Hat are Copyright (C) 1998, 1999, 2000 Red Hat, Inc. (http://www.redhat.com).
  • Page 196 Appendix G Software License Agreement...
  • Page 197 Index Buffers, 104 Busy On Strobe, 93 A TO D OVERUN * message, 123 Busy Polarity, 91 ACCESS NULL PTR * message, 123 Busy, Centronics Parallel Interface Signals, 107 Acknowledge, Centronics Parallel Interface Byte Mode, IEEE 1284 Parallel Interface, 108 Signals, 107 B00 STATUS SDRAM DETECTION 166MHZ Acoustic noise level, 154...
  • Page 198 B46 ERROR SDRAM HAS MIXED SIZES* CLOSE PLATEN message, 126 message, 125 Code V Cmd Char, 79 B47 ERROR SDRAM LARGER THAN 256M* Code V Grph Den, 83 message, 125 Code V Language, 81 B49 ERROR SDRAM # LOGICAL BANKS* Code 7F, 76 message, 125 Codes submenu, 73...
  • Page 199 Config menu, 70 UP + DOWN, 24 Codes submenu, 73 VIEW key, 23 Configurations submenu, 83 Conventions, manual, 11 CST/PAA submenu, 96 CPI, 61 Ethernet Hotport submenu, 86 CRTG COMM ERR message, 126 File Management submenu, 95 CRTG MISSING message, 126 Graphics submenu, 78 CRTG NOT SETx message, 127 Host Interface submenu, 85...
  • Page 200 DTR Polarity, 91 ERROR WRONG PRINTER TYPE message, 139 Dump Mode, 72 ESC, 75 D50 STATUS%XX Clearing Flash message, 127 Ethernet Address, 55, 97 D50 STATUS%XX Programming, 127 DHCP, 97 D55 STATUS Send Program to EC, 127 Gateway Address, 97 IP Address, 97 MAC Address, 97 Eject Distance, 65...
  • Page 201 E06 NOT ALIGNED message, 131 B13 ERROR NOT COMPATIBLE*, 123 E07 ILLEGAL INS message, 131 B19 ERROR DC RETURNED*, 124 E08 FLOATINGPNT message, 131 B20 STATUS 00% DOWNLOAD MODE, 124 E12 SYSTEM CALL message, 131 B21 STATUS PRINTER RESET, 124 E13 TRACE INT message, 132 B22 ERROR DECOMPRESS SIZE*, 124 E16 ITRANS MISS message, 132...
  • Page 202 DP FIFO Busy*, 127 E03C DSI BAT PL, 129 DRVR CIR BAD *, 128 E03D DSI BAT, 129 D50 STATUS%XX Clearing Flash, 127 E03E DSI CXIWX, 129 D51 STATUS%XX Programming, 127 E03F DSI CXOWX, 130 D55 STATUS Send Program to EC, 127 E03G DSI ECXIWX, 130 ERROR CPLD NOT PROGRAMMED, 137 E03H DSI ECXOWX, 130...
  • Page 203 FREEFORM OFF, 140 POWERSUPPLY HOT *, 144 FREEFORM ON OFF HOLD KEY @ PRINTER HOT *, 145 PWRUP, 140 PRINTER UNDER REMOTE CONTROL, 145 GRF CHECK ERROR PRESS STOP, 140 PROTECTED INSTR *, 145 HAMMER COIL BAD, ###, 141 PWRSUPP VOLT *, 145 HAM.
  • Page 204 UNKNOWN RBN1, 148 Left Margin, 64 UP DRV. SHORT*, 148 Length (Inches), 64 WELD NOT DETECT, 149 Length (Lines), 64 WELD RESET ERROR, 149 LPI, 64 WELD SNSR MISSING, 149 Perf Skip, 67 48V CIRCUIT*, 123 Power Saver Time, 67 48V PWR FAIL *, 123 Quick Access, 65 Fault Override submenu...
  • Page 205 Smooth Size, 79 Interfaces Version, 80 printer, 105 Vertical Scale, 80 specifications, 155 Zero, 81 Interior cleaning, 118 GRF CHECK ERROR PRESS STOP INTERRUPT UNUSED VECTOR 00 message, 142 message, 140 INVALID ACTIVATE message, 142 INVALID COMMAND message, 142 IP Address, 97 HAMMER COIL BAD, ### Message, 141 HAM.
  • Page 206 Operational procedures cancel a print job, 25 MAC Address, 97 reload paper, 26 Main menu, 6600 CRP, 53 unload paper, 35 Maintenance, 11 Operator menu, 57 Manual Auto Elevator, 68 conventions, 11 Font, 58 related documents, 12 Forms, 63 special information, 11 Power Stacker, 68 warnings, 11 Vertical Format Units (VFU), 69...
  • Page 207 Parallel Hotport submenu, 86 Power requirements, 15 Auto Trickle, 86 Power Saver Time, 67 Port Type, 86 Power Stacker, Operator menu, 68 Report Status, 87 POWER SUPPLY HOT * message, 144 Switch Out On, 87 Powering on the printer, 21 Timeout, 87 Powerup, 72 Trickle Time, 87...
  • Page 208 Printing, Hex Dump, 121 Resistors PrintNet Enterprise, consumable monitoring, 11 installation, 112 Printronix_SETUP Option, overview, 177 removal, 112 PROTECTED INSTR * message, 145 Resistors, terminating Protocol, 89 location of, 112 PTX ALS, 77 Resp. Polarity, 93 PTX Setup submenu, 96 RESTORING BOOT CODE message, 145 Setup Parse, 96 RIB INVLD CMD* message, 145...
  • Page 209 Timeout, 87 Skip When, 69 Trickle Time, 87 Smooth Size, 79 Serial Interface, RS-232, 112 SOFTWARE ERROR* CYCLE POWER Serial I/O submenu, 88 message, 147 Baud, 88 Special information, 11 Buffer Size in K, 91 Specifications Busy Polarity, 91 interfaces, 155 Data Bits, 88 label, 153 DTR Function, 91...
  • Page 210 Terminating resistors location of, 112 Warnings, 11 Test menu, 100 Weight, printer, 153 Diag submenu, 103 WELD NOT DETECT message, 149 Fault Override submenu, 103 WELD RESET ERROR message, 149 Pattern submenu, 101 WELD SNSR MISSING message, 149 Test Width, 102 Wrap Line Feed, 74 Timeout, 87 TIP MISMATCH message, 148...
