Draper GHD150WA Instructions Manual

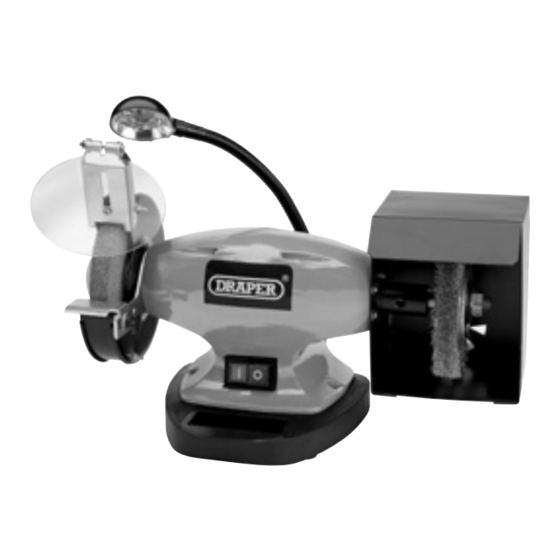

150mm bench grinder with wire wheel and worklight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR
150mm Bench Grinder
with wire wheel and worklight
Stock No.83421
Part No.GHD150WA
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GHD150WA and is the answer not in the manual?

Questions and answers

Related Manuals for Draper GHD150WA

Summary of Contents for Draper GHD150WA

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE .........6-7 SPECIFIC SAFETY INSTRUCTIONS FOR BENCH GRINDERS........7-8 SAFETY RECOMMENDATIONS FOR THE CORRECT USE OF ABRASIVE PRODUCTS ...................8...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This grinder is intended for garage/workshop use for sharpening and removing rust, paint, etc. 4.2 SPECIFICATION Stock no..........................83421 Part no.......................... GHD150WA Rated voltage ........................ 230V~50Hz Rated input..........................400W Operating condition ......................S2: 30min Revolutions Per Minute (no load) ................. 2840r/min Wheel Dimension: Maximum Diameter ......................150mm...

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Specific Safety Instructions For Bench Grinders

    HEALTH & SAFETY INFORMATION Wait for the machine to stop. Unless the machine is fitted with a safety brake; some parts may continue to move due to momentum. Wait for all parts to stop; then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool.

  • Page 8: Safety Recommendations For The Correct Use Of Abrasive Products

    HEALTH & SAFETY INFORMATION Ensure that sparks resulting from use do not create a hazard e.g. do not hit persons, to ignite flammable substances; Ensure that ventilation openings are kept clear when working in dusty conditions. If it should become necessary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts;...

  • Page 9: Connection To The Power Supply

    HEALTH & SAFETY INFORMATION 5.4 CONNECTION TO THE POWER SUPPLY Make sure the power supply information on the machine’s rating plate are compatible with the power supply you intend to connect it to. If a replacement plug is to be fitted this must be carried out by a qualified electrician. The damaged or incomplete plug, when cut from the cable shall be disabled to prevent connection to a live electrical outlet.

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION 150mm grinding wheel. Spindle. Lamp. On/off switch. Wire wheel guard. 150mm wire wheel.

  • Page 11: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.

  • Page 12: Preparing The Grinder

    PREPARING THE GRINDER 8.1 INSTALLATION Choose a location that is level, flat and with a lot of natural light. The bench grinder should be operated on a work bench that is high enough to prevent any injury caused by working in an uncomfortable position; but not too high that the work piece cannot be safely viewed from above.

  • Page 13: Fitting Tool Rest

    PREPARING THE GRINDER NOTE: Remove the plug from the socket before carrying out FIG.1 adjustment, servicing or maintenance. FITTING TOOL REST - FIGS. 1 - 3 Attach the left hand tool rest using the bolt , large washers and fixing nut Now adjust the tool rests so there is approximately a 1.5mm ⁄...

  • Page 14: Fitting Eyeshield

    PREPARING THE GRINDER FITTING EYESHIELD - FIGS. 4 - 6 Attach the eyeshield arm brackets to the eyeshield using washer , fixing bolt and nut FIG.4 Attach the assembled eyeshield to the grinder, using FIG.5 bolt , washer and nut Fully assembled eyeshield.

  • Page 15: Operating The Grinder

    OPERATING THE GRINDER ON/OFF SWITCH - FIG. 7 Turn the grinder "on" using the switch marked "I". To turn off, press the switch marked "O". FIG.7 WIRE WHEEL REMOVAL - FIG. 8 FIG.8 Insert a spindle locking tool, such as a screwdriver (not supplied), into slot , whilst holding the spindle in a fixed position.

  • Page 16: Grinding Tips

    10. GRINDING TIPS Ensure that the item to be ground is comfortably and securely held. Adjust tool rest to correct angle. Present the workpiece smoothly on to the grinding wheel face with a light and even pressure. Grind against the edge of the workpiece to avoid burrs. Never grind on the sides of the wheels.

  • Page 17: Optional Accessories

    11. OPTIONAL ACCESSORIES GRINDING WHEELS: Stock No. Part No. Type Grit Diameter Bore Size Width (face size) 52061 AG150 Fine 60 150mm 12.7mm 19mm 12.7mm 52056 AG150 Coarse 36 150mm 19mm 52067 AG150 Green 12.7mm 19mm 150mm WIRE WHEELS: Stock No. Part No.

  • Page 18: Explanation Of Symbols/Pictograms

    12. EXPLANATION OF SYMBOLS/PICTOGRAMS Warning! Wear safety glasses. Warning! Read the instruction manual. Do not dispose of WEEE* as unsorted municipal waste. * Waste Electrical & Electronic Equipment.

  • Page 19: Disposal

    13. DISPOSAL 13.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST DKKC1015...
