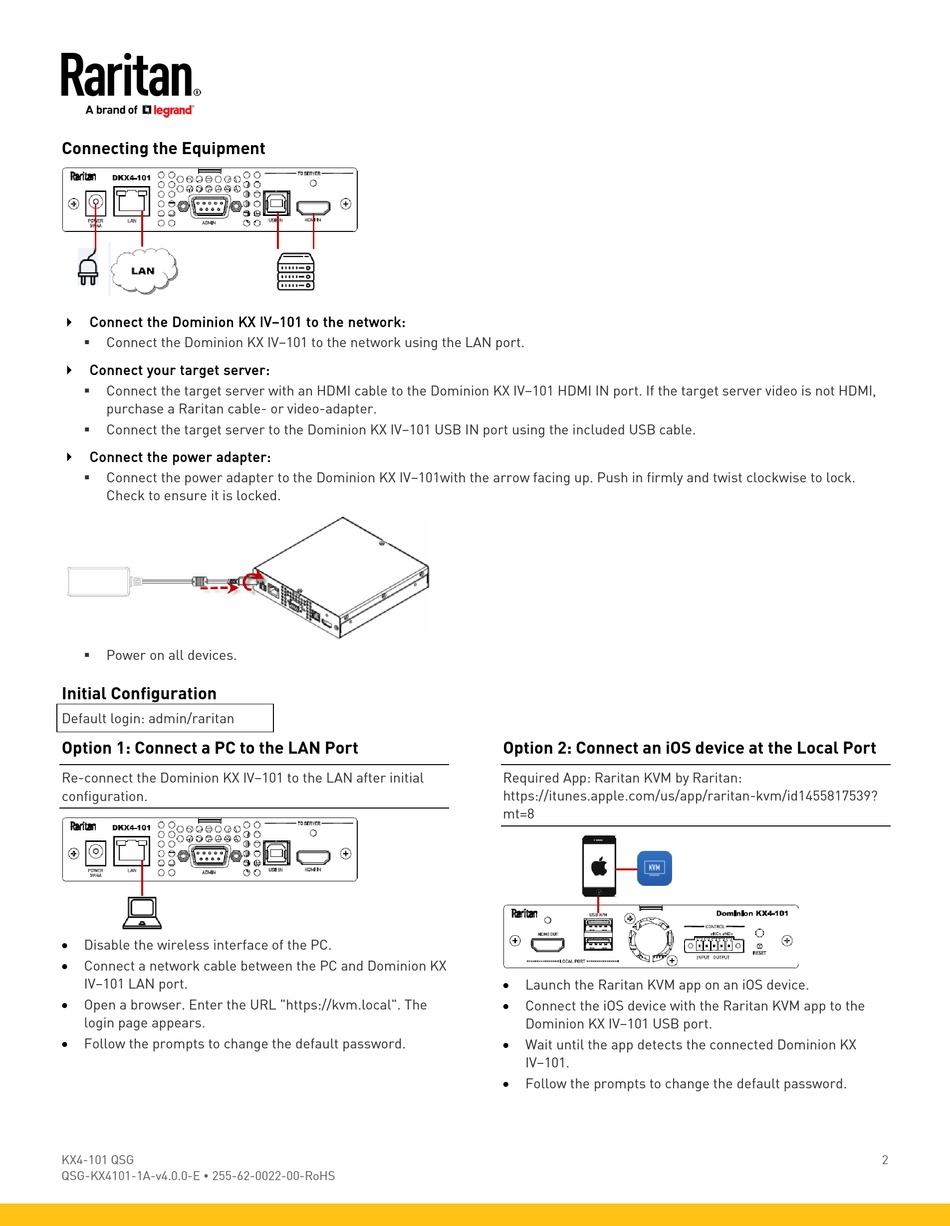

Connecting The Equipment; Initial Configuration - Raritan Dominion KX IV-101 Package Contents

Connecting the Equipment

 Connect the Dominion KX IV–101 to the network:
Connect the Dominion KX IV–101 to the network using the LAN port.

 Connect your target server:
Connect the target server with an HDMI cable to the Dominion KX IV–101 HDMI IN port. If the target server video is not HDMI,

purchase a Raritan cable- or video-adapter.
Connect the target server to the Dominion KX IV–101 USB IN port using the included USB cable.

 Connect the power adapter:
Connect the power adapter to the Dominion KX IV–101with the arrow facing up. Push in firmly and twist clockwise to lock.

Check to ensure it is locked.
Power on all devices.

QS Rule

Initial Configuration

Default login: admin/raritan
Option 1: Connect a PC to the LAN Port
Re-connect the Dominion KX IV–101 to the LAN after initial
configuration.
Disable the wireless interface of the PC.
•
Connect a network cable between the PC and Dominion KX
•
IV–101 LAN port.
Open a browser. Enter the URL "https://kvm.local". The
•
login page appears.
• Follow the prompts to change the default password.
KX4-101 QSG
QSG-KX4101-1A-v4.0.0-E  255-62-0022-00-RoHS
Option 2: Connect an iOS device at the Local Port
Required App: Raritan KVM by Raritan:
https://itunes.apple.com/us/app/raritan-kvm/id1455817539?
mt=8
Launch the Raritan KVM app on an iOS device.
•
Connect the iOS device with the Raritan KVM app to the
•
Dominion KX IV–101 USB port.
• Wait until the app detects the connected Dominion KX
IV–101.
• Follow the prompts to change the default password.
2
