Installation & Calibration Manual
ScanWeight
(System with Bluetooth module)
ScanWeight-RF
(System with Bluetooth and RF module)
Lift Truck Onboard Check Weighing Initiated by Barcode Scanner
ScanWeight V1.30
Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7
www.skidweigh.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ScanWeight Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Integrated Visual Data Technology Inc. ScanWeight Series

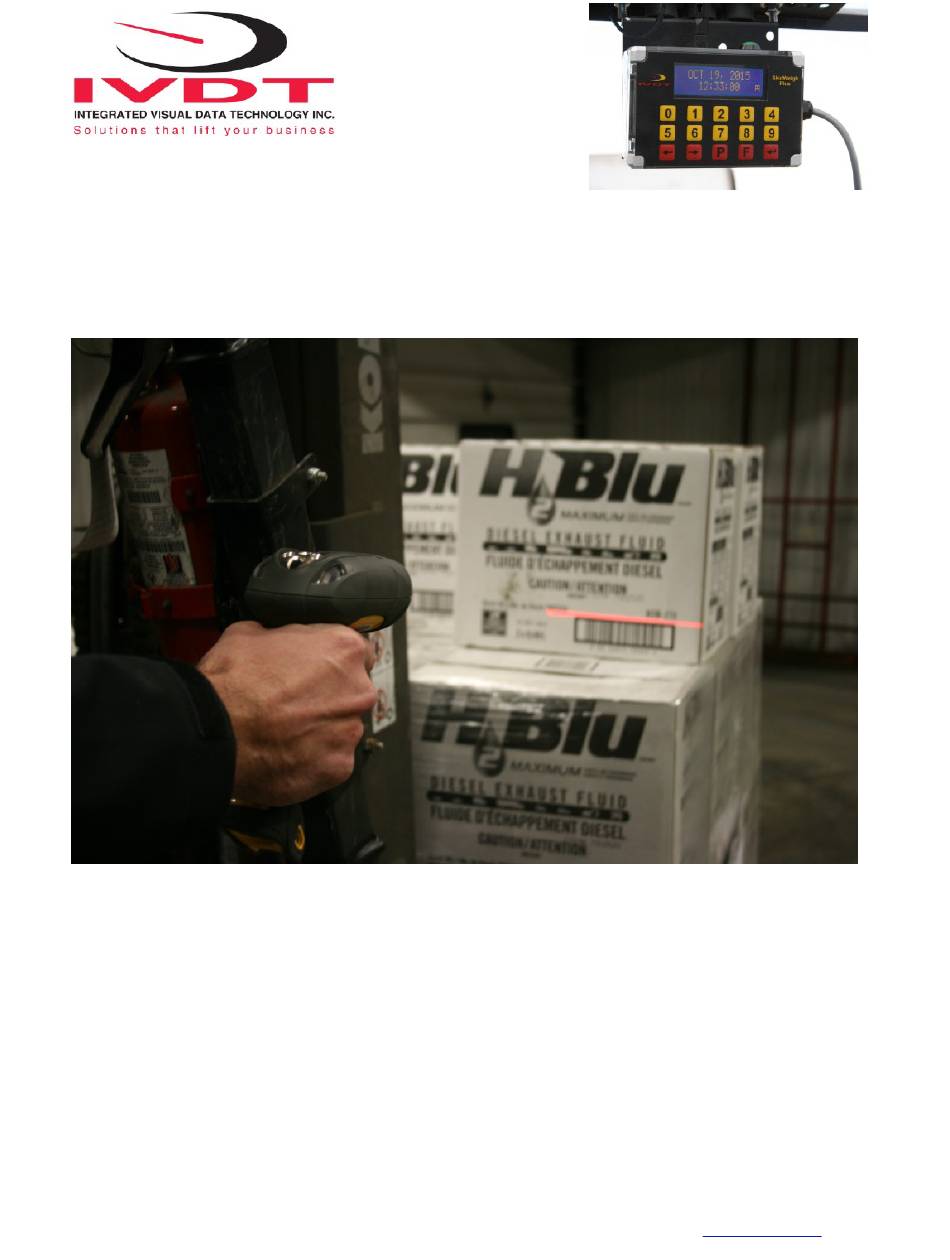

  • Page 1 Installation & Calibration Manual ScanWeight (System with Bluetooth module) ScanWeight-RF (System with Bluetooth and RF module) Lift Truck Onboard Check Weighing Initiated by Barcode Scanner ScanWeight V1.30 Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
  • Page 2: Electromagnetic Compatibility

    CE conformity to EC directive 89/336 (EMC) by application of harmonized standards: Interference stability EN 61000-6-2 and EN 61326-1 interference emit EN 61000-6-3, EN 61326-1 for the pressure transducer. ScanWeight Series Our policy is one of continuous improvement and the information in this document is subject to change without notice.
  • Page 3: Operation

    Operation The ScanWeight operation is based on the hydraulic pressure transducer mounted in the vehicle lifting circuit Pressure transducer installation The pressure transducer must be installed in the lifting hydraulic line between the lift control valve and lift cylinder(s). Mount a T-piece in lifting hydraulic line. Pressure transducer installation precautions Before installation of the pressure transducer the hydraulic lift circuit must be pressure free.
  • Page 4: Electrical Connections

    Electrical connections All SkidWeigh Plus systems operate from 12 to 55 VDC. - Orange Wire (+) Ignition switch - Brown Wire (-) Battery negative - Red Wire, connect to RED wire of the pressure transducer cable - Black Wire, connect to BLACK wire of the pressure transducer cable - White Wire, connect to WHITE wire of the pressure transducer cable Power short circuit protection All ScanWeight systems are internally short circuit protected with resettable fuse.
  • Page 5: Administrative Menu

    Bypass Barcode Scanner Function LCD Display Impact Monitoring Bluetooth Icon Mounting Bracket With Anti Vibration Mounts Keypad Toggle Arrows Keys in set up menu “Enter key” ↵ Administrative Menu FUNCTION MODE KEY ADMINISTRATIVE MENU (Password protected) OPERATOR MENU (Bluetooth scanner pairing) Integrated Visual Data Technology Inc.
  • Page 6 The administration menu allows the installation technician to calibrate system weighing function (Set Calibration 1), set the overload if applicable and for the end user to manage data, set vehicle ID#, input proper time and date, modify utilization factor, impacts set up menu and saving data to memory stick. Note: Data collected will depend on the hardware / software configuration.
  • Page 7 LCD Display <> KEY to SCROLL F KEY TO EXIT Date / Time Set Up LCD Display SET CLOCK ENTER TO SELECT LCD Display SET CLOCK AUTO _ Use left ◀ and right ▶ arrow key (bottom left side of the keypad) to change from AUTO to MANUAL date/ time set up.
  • Page 8 LCD Display Aug 28, 2010 12:20:23 “Enter key” ↵ Press to confirm the setting. The cursor will automatically move to the next item to be changed ( Month, Day, Year, Hours, Minutes, Seconds). On the last correction, seconds item press “Enter key” ↵ to confirm new date / time set up.
  • Page 9 Saving recorded data to USB memory stick The UTX SkidWeigh Plus system will allow you to download all recorded data onto a USB drive. Follow instructions shown on the LCD display
 This function is located in Administrative Menu. LCD Display <>...
  • Page 10 Weighing scale function calibration Make sure that forks are on the ground and LCD display is showing time and date. LCD Display Aug 28, 2010 12:20:23 To enter into the Administration Menu, press F key and than press 9 key. Input password 521. LCD Display MENU Password = ___...
  • Page 11: Overload Warning Function

    Pick up a known load weight and lower the loaded forks to the ground. Input into the system the known load weight (Our example is 2000) and press “Enter key” ↵ . The LCD display will show LCD Display CALIBRATION 1 LIFT LOAD Activate lift control valve and lift loaded forks just above the ground.
  • Page 12 Lift Truck Operator Weighing Guide Loaded forks must be lowered to the ground LCD display must show date / time Use barcode scanner to initiate the weighing cycle Lift the load approximately 2” off the ground Do not use tilt, side shift or move vehicle during the weighing cycle Within few seconds LCD display will show the load weigh and barcode ID# Load weight and barcode ID# will be recorded to USB port Automatic weighing cycle is completed...
