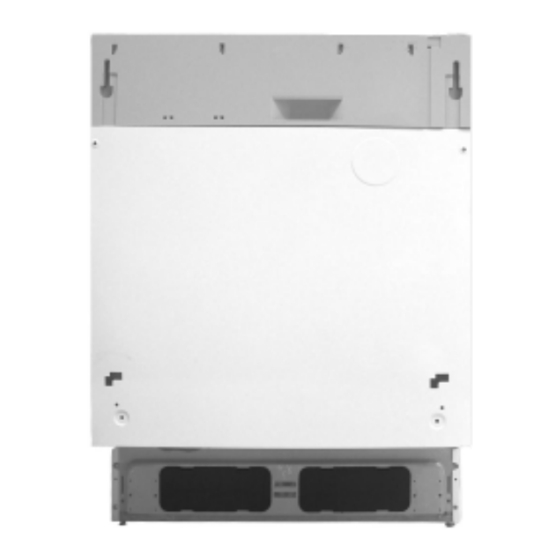

- Page 1 DW12-CBE4 Dishwasher Service Manual Models: DW12-CBE4 Features Programme control, four program for select l Water softening function is provided which can prevent incrustation l Adjustable upper rack Haier Group Manual code: 0120502316 Edition:2004.01.10 - 1 -...
-
Page 2: Table Of Contents
Contents 1. Product Code illumination and Series introduction …………………….………... 3 2. Features………………………………………………… ……………………………….4 3. Specifications…………………………………………… ……………………………….5-7 4. Safety Precaution………………………………………… ………………………….…..8 5. Net Dimension…………………………………………………………………………….9 6. Installation and Accessory Parts…………………… …………………………………. 9-10 7. Parts and Functions………………………………… ………….. ………………...…... 11-14 8. Function Schedule……………………………………………………………………….. 15 9. -
Page 3: Product Code Illumination And Series Introduction
Product Code illumination and Series Introduction 1.Product Code Illumination and Series Introduction Model Identification 12 ─ □ □ □ □ A: Abbreviation of dishwasher B: Code name of Nominal capacity C: Series of factory design D: Freestanding/built –in/semi-built-in E: Mechanical/Electronic F: The second series of factory design code name described/outer side material Examples: DW12-CBE5... -
Page 4: Features
Features 2.Features 2.1. Programme control, four program for select Water softening function is provided which can prevent 2.2. incrustation forming 2.3. Three sprayer may the plate of dishwasher to clean , washing perforce of dishwasher is up to 97% - 4 -... -
Page 5: Specifications
Specifications 3.Speciafications DISH WASHER Last update 2003-2-10 2003-2-10 Revision 00.01 00.01 N°. Supplier Type DW12-CBE4 Suppliers bar code N°. Sales Brand / Model GXCH Sales bar code N°. Key-features Class Energy efficiency Washing efficiency Class Drying efficiency Class Noise level power / pressure... - Page 6 Cuttlery sliding tray / removable basket Plates sizes bottom basket / uper basket 19-26/14 Water inlet hose cold water / hot water Water drain hose / -hose support Drying system Condenser / Turbo vented Natural Height adjustable feet n°. / max. mm 4/20 Delay timer (from - to) Safety systems...
- Page 7 Informations for importer 14,5 m (84 CBM.) Truck load capacity Jumbo (120 CBM.) Truck load capacity 40' Container load capacity 40' HC load capacity Max. failure rate (12 Months after sales to end customer) pc/% Packing materials / Recycling symbols REzY Carton (weight)
-
Page 8: Safety Precaution
Safety Precaution 4. Safety Precaution - 8 -... -
Page 9: Net Dimension
Net dimension 5.Net dimension 6.Installation and Accessory Parts 6.1 Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned on the right or the left to facilitate proper installation. - Page 10 Installation and Accessory Parts 6.3 Cold Water Connection Connect the cold water supply hose to a threaded 3/4(gas) connector, inserting the small filter supplied with the dishwasher and making sure that it is fastened tightly in place (see Fig.1) If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities.
-
Page 11: Parts And Functions
Parts and Functions 7.Parts and Functions - 11 -... - Page 12 Parts and Functions Salt The hardness of the water varies from place to place. If hard water is used in the shwasher,deposits will form on the dishes utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
- Page 13 Parts and Functions Detergent Detergent specifically intended for use with dishwashers must be used.The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel the door. Loading the detergent To open the "A"...
- Page 14 Parts and functions Before placing the dishes in the dishwasher, remove the larger food debris to prevent the filter from becoming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they be allowed to soak before they are washed.
-
Page 15: Function Schedule
Function Schedule 8. Function Schedule Intensive wash 1、 Hot Pre-wash 13min Cold rinse 10min 70℃Main-wash 38min Cold rinse 6 min Hot rinse 24min Drying 19min Normal wash 2、 Pre-wash 18min Pre-wash 9min 50℃Main-wash 55min Hot rinse 18min Drying 19min Light wash 3、... -
Page 16: Program Diagram
Program Diagram 9. Program Diagram Cycle Selection Cycle Information Pre-wash use hot water. Extended wash at 50℃ Rinse with cold water Rinse with hot water at 70℃. The second pre-wash use cold water. Extended wash at 50℃ Rinse withcold water Rinse with hot water at 70℃. -
Page 17: Maintenances Service And Trouble Shooting
Maintenances Services and Trouble Shooting 10.1Maintenances Services It may occur that the dishwasher does not function or does not function properly Before calling for assistance,Iet us see what can be done first :have you forgotten to press one of the buttons or to perfom an essential operation? 10.2 Trouble Shooting Trouble Shooting Tabie Water... - Page 18 Maintenances Services and Trouble Shooting analysis of the common breakdowns Door switch trouble Whether door is closed Close the door check if door flap is OK Replace it Dismantle the door case and using Change the door switch avometer to measure if the two terminals of door switch is on.
- Page 19 Maintenances Services and Trouble Shooting analysis of the common breakdowns water supply trouble Whether water is flowing in the hose Turn on the stopcock Whether the stopcock is turned on Whether solenoid valve measure whether solenoid valve is working is electrified Change the solenoid valve Check whether...
- Page 20 Maintenances Services and Trouble Shooting analysis of the common breakdowns Drain pump trouble Repair the pipeline and drain pump Whether the pipeline Whether drain and drain pump was pump is working blocked Whether drain The drain hose is too pump is electrified high Cable or the program drain...
- Page 21 Maintenances Services and Trouble Shooting analysis of the common breakdowns Heating trouble Check: Whether socket connector is connected well Connect it well Check resistance Replace the heater between the heater resistor Check whether the circuit Replace the temperature limiting between the two teminals device is open The cable or the controller...
- Page 22 Maintenances Services and Trouble Shooting analysis of the common breakdowns Water overflow trouble Whether water is deposited is Whether water flows out of Bottom the bottom case the water overflow conduit case is leaking Check whether the water change the water level switch is closed level switch Whether...
-
Page 23: Maintenances Service And Trouble Shooting
Maintenances Services and Trouble Shooting analysis of the common breakdowns power trouble check whether the power connector Connect it properly check whether the power connector is in position is in position check whether the circuit the cable or the controller board between the two terminals should be suspected is open... -
Page 24: Circuit Diagram
Circuit Diagram 11. Circuit Diagram control panel Drain pump Disepenser Washing valve softer valve Overflow switch Inlet valve Washing pump - 24 -... -
Page 25: Exploded View
Exploded View 12.Exploded View - 25 -... -
Page 26: List Of Parts
Exploded View / List of Parts 13.List of Parts NO. In Name of part Part Specialized code QTY. explored view 012G1310020 Upper rear crosspiece Main screw for self threading screw 3.5 0120200057 0120800225 Upper front crosspiece Right upright assembly 012G9350003 012G1020068 Painted right side pannel 0120100074... - Page 27 012G2160204 Drain hose stop 0120101601 Lower rear crosspiece for acquostop 0120802530 Insulated tub assembly Wheel for lower basket 0120200964 Wheel for upper basket 0120200963 0120200965 Wheel support pin 0120200967 Basket rail stop Mobile rail for basket 012G1020069 0120300248 Tub gasket Support frame for tub gasket 012G1020082 0120200124...
- Page 28 0124000162 Terminal box assembly 0120600065 Adjusting screw 0120801832 Feeding dispenser assembly 0120201011 Water diversion pipe 0120201010 Pin for inner duct hooking Upper sprayer assembly 0120801726 012G2160206 Support for float Float for Acquastop 012G2110049 012G6050040 Micro switch Elbi Type S3 0120400105 Power supply cable Air outlet 012G2160197...
- Page 29 012G1020070 Lower sprayer 0120201005 Lower sprayer column 0120201004 Lower sprayer base O-type sealing ring 012G4050153 Lower sprayer base fixing piece 012G2160193 0124000162 Electric wave filter 012G2150042 Softener ring nut Water softener sealing ring 012G4050154 0120802037 Cover of salt dispenser port assembly Salt dispenser funnel 012G2160195 012G4050244...
- Page 30 0120101404 Inner Door 0120800356 Door switch 0120800357 Switch mechanism assembly control panel 0124000165 control cover 0120200244 Card for led support 0120200985 0120200994 Left led card support Door spring Cover 0120200048 0120200226 Power Key-press Power supply switch 012G9370091 0120800354 Green indicator 0120100042 Springs adjusting small block 0120600197...
-
Page 31: Damageable Parts List → Remark
Exploded View / List of Parts 14.Damageable Parts List NO. In Name of part Part Specialized code QTY. explored view Drain pump 012G5040004 Water level switch 012G6050031 Door switch 0120800356 Power supply switch 012G9370091 - 31 -...
