BTU (Bluetooth Unit) Manual

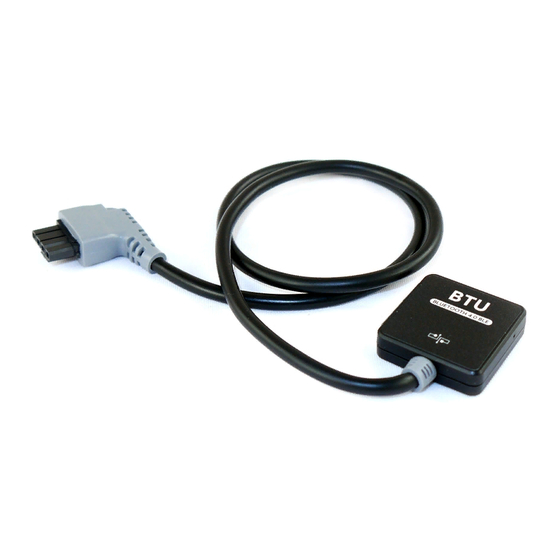

BTU Bluetooth Unit is used with NM Assistant for wireless communication between
the autopilot system and mobile device. For NAZA-M Firmware V3.16 or above.

Supported Mobile devices

iPhone 4s、iPhone 5、iPod touch5、iPad mini、iPad3、iPad4

Specifications

Bluetooth version
Communication distance
Environment temperature

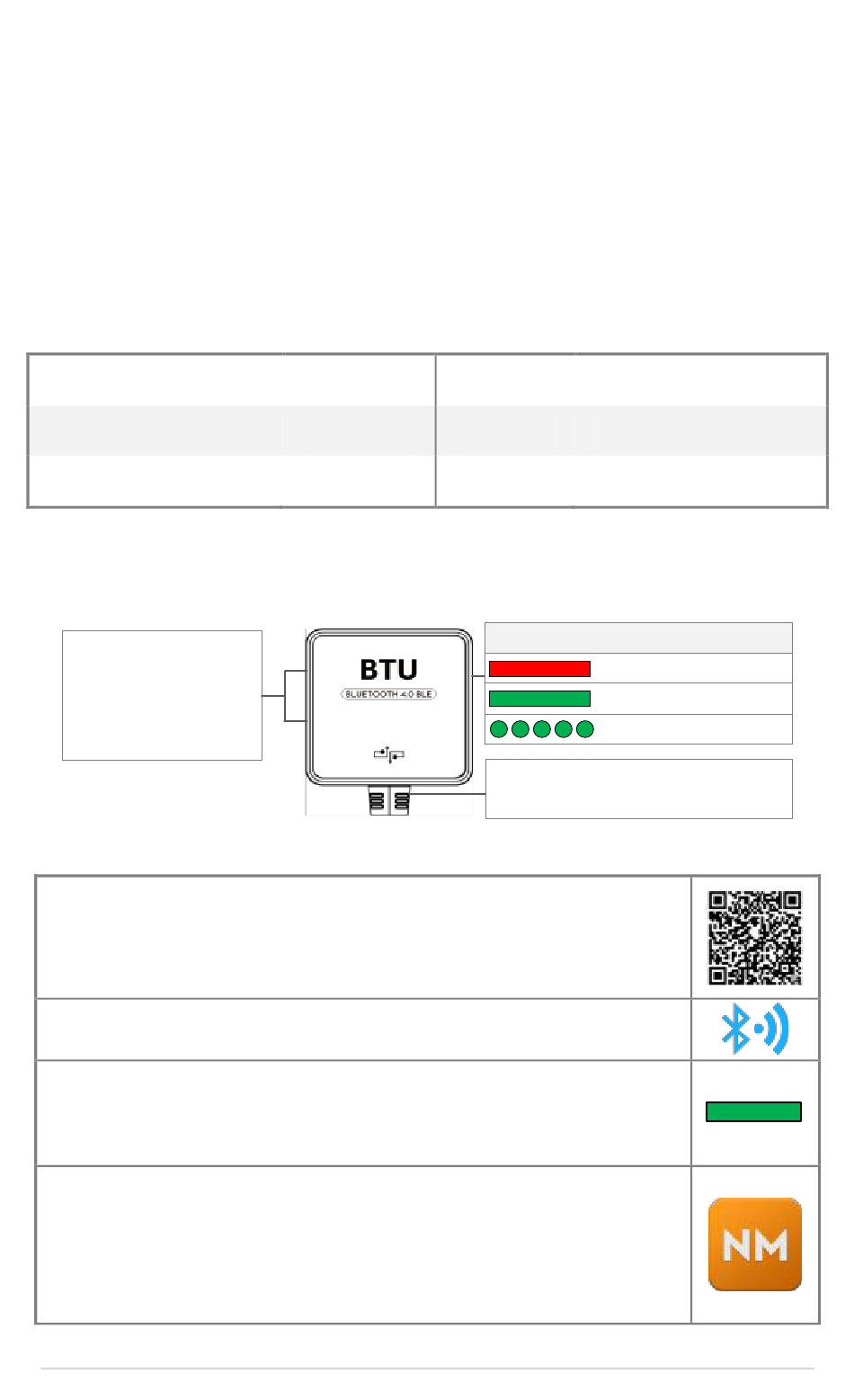

Step 1: Connection

Connect the BTU to NAZA PMU V2 (Accessory of NAZA-M V2)
Antenna, the side
with LOGO should
be facing upwards
when mounting, and
avoid blocking.

Step 2: Usage of NM Assistant

1. Search the NM Assistant in App store on mobile device, or scan the
QR code on package to download the App and install it.
2. Enable the Bluetooth function on the mobile device.
3. Power on the autopilot system, make sure the BTU Status Indicator is
solid Green.
4. Run the NM Assistant. You may be asked to register through internet
when first login (the account of PC Assistant software is OK for login);
follow the tips to set Main Controller name and password.
©2013 DJI Innovations. All Rights Reserved
4.0 or above
Weight
50m
Consumption 240mw(0.04A@6V)
-10℃~+50℃
Dimensions
V1.04
17g
25.4mm×25.4mm×7.2mm
BTU Status Indicator
Abnormal
Normal
Data communicating
CAN-Bus port,for power
supply and communication
