- Page 1 ZENMUSE H20 SERIES User Manual v1.0 2020.05...
-
Page 2: Using This Manual
Using this Manual Legend Warning Important Tips DJI Pilot App Download The DJI Pilot app is required when using Zenmuse H20 series. Scan the QR code or visit http://www.dji.com/zenmuse-h20-seires/downloads to download and install the app. © 2020 DJI All Rights Reserved. -
Page 3: Caution
4. Do not frequently power on/off the product. After it is turned off, wait at least 30 seconds before turning back on, otherwise the product life will be affected. 5. Under stable laboratory conditions, the Zenmuse H20 series achieves an IP44 protection rating by IEC60529 standards. However, this protection rating is not permanent and may reduce over time after long-term use. -
Page 4: Table Of Contents
Contents Using this Manual Legend DJI Pilot App Download Caution Contents Introduction Installation Supported Aircraft Mounting the Zenmuse H20 Series Remote Controller Operation DJI Pilot App Basic Functions Intelligent Functions Updating Firmware Specifications © 2020 DJI All Rights Reserved. -

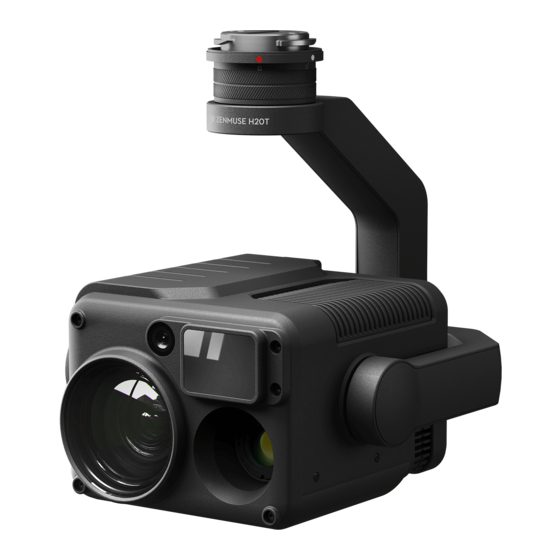

Page 5: Introduction
8. microSD Card Slot Zenmuse H20T 1. Gimbal Connector 6. Zoom Camera 2. Pan Motor 7. Tilt Motor 3. Wide Camera 8. Roll Motor 4. Laser Rangefinder 9. microSD Card Slot 5. Infrared Thermal Camera © 2020 DJI All Rights Reserved. -
Page 6: Installation
Ensure the microSD card slot cover is firmly in place to prevent dust or moisture entering during usage or transportation. The Zenmuse H20 series is a delicate instrument. Do not disassemble the gimbal or camera as this will cause permanent damage. -
Page 7: Remote Controller Operation
2. Record Button Press to start/stop recording video. 3. Shutter Button Press to take a photo, you can set the photo mode as single or interval in the DJI Pilot App. Taking single photo is supported during video recording. 4. Right Dial Turn to adjust the gimbal’s pan. -
Page 8: Dji Pilot App
Among the following functions, those marked with * are only applicable to the infrared thermal camera of the Zenmuse H20T. Basic Functions You can view the liveview from the Zenmuse H20 series and change camera settings in Camera View. 26.1v In Flight (GPS) 2.4G... - Page 9 Zenmuse H20 Series User Manual 4. Focus Mode Tap to switch the focus mode. Various focus modes are supported: MF (manual focus), AF-C (continuous autofocus) and AF-S (single autofocus). 5. Auto Exposure Lock Tap to lock the exposure value. 6. Camera Settings Tap to enter the photo and video settings.
- Page 10 Zenmuse H20 Series User Manual ROI set to “Full” Sky excluded from ROI Scene Parameter* • DDE (Digital Detail Enhancement): Enhances image details and/or suppresses fixed pattern noise. • Contrast: The ratio of the black and white of the image. Colors will be richer and have more contrast when the value is high.
- Page 11 26.1v 2.4G 100% 26.1v Zenmuse H20 Series User Manual 19:29 1.0X The zoom magnification of the zoom camera ranges from 2x to 200x. 1215 10 X ZOOM 5.0 X 5 0X 9. Shutter/Record Button Tap to start shooting photos or recording video.
- Page 12 Zenmuse H20 Series User Manual The following table shows all palette options. White Hot Fulgurite Iron Red Hot Iron Medical Arctic Rainbow 1 Rainbow 2 Tint Black Hot Palette Description The most commonly used pseudo color, using white for high temperatures and White Hot black for low temperatures, which is a natural association for people.
- Page 13 Zenmuse H20 Series User Manual The opposite to White Hot, using black for warmer objects and white for cooler Black Hot objects. The heat distribution of high temperature targets can be better observed when outdoors. Different palettes applied to the same example image are shown below.
- Page 14 Zenmuse H20 Series User Manual Iron Red Isotherm Medical Isotherm 14. FFC Calibration* Tap this button to execute FFC calibration, which is used to optimize image quality. During calibration, your screen may freeze momentarily and the camera will make a clicking sound.
-
Page 15: Intelligent Functions
Zenmuse H20 Series User Manual Intelligent Functions Click to Aim Double-click the point of interest on the main screen, the gimbal will automatically move to the point of interest in the center of the screen. High-Res Grid Photo Drag to select an area in the wide camera view, the gimbal will move automatically and take a series of 20MP photos of the selected area at the current zoom ratio by the zoom camera. -
Page 16: Updating Firmware
3. Copy the downloaded firmware update file to the root directory of the microSD card. 4. Insert the microSD card into the microSD card slot of Zenmuse H20 series gimbal and camera. 5. Power on the aircraft, the gimbal and camera will start to perform an auto-check, then it will start to update automatically and the buzzer will beep to indicate the status. -
Page 17: Specifications
Video Subtitles Supported Max. Image Size 5184×3888 Image Format JPEG Wide Camera Sensor 1/2.3" CMOS, Effective Pixels: 12M DFOV: 82.9° Focal length: 4.5 mm (equivalent: 24 mm) Lens Aperture: f/2.8 Focus: 1 m to ∞ © 2020 DJI All Rights Reserved. - Page 18 Zenmuse H20 Series User Manual Exposure Mode Auto Exposure Compensation ±3.0 (1/3 increments) Metering Mode Spot metering, Center-weighted metering AE Lock Supported Electronic Shutter Speed 1-1/8000 s Video: 100-25600 ISO Range Photo: 100-25600 Video Resolution 1920×1080@30fps Video Format Video Subtitles Supported Max.
- Page 19 -10° to 50° C) Storage Temperature 20° to 60° C By importing R-JPEG images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as emissivity and reflection temperature. Download the DJI Thermal Analysis Tool at https://www.dji.com/zenmuse-h20-series/downloads ** Optical parameters of the laser rangefinder: laser pulse width is 6.5 ns, repetition frequency is 12.5 kHz,...
- Page 20 DJI Support http://www.dji.com/support This content is subject to change without prior notice. Download the latest version from http://www.dji.com/zenmuse-h20-series ZENMUSE is a trademark of DJI. Copyright © 2020 DJI All Rights Reserved.
