The 3300 Controller is designed to be mounted in a 1/32
DIN panel cutout and the 9300 Controller in a 1/16 DIN
cutout. The only differences between the two instruments
are their vertical dimensions.
Both models are sleeve mounted with their front bezel
assembly rated NEMA4/IP66 provided that:
the panel is smooth and the panel cutout is accurate;
the mounting instructions are carefully followed.

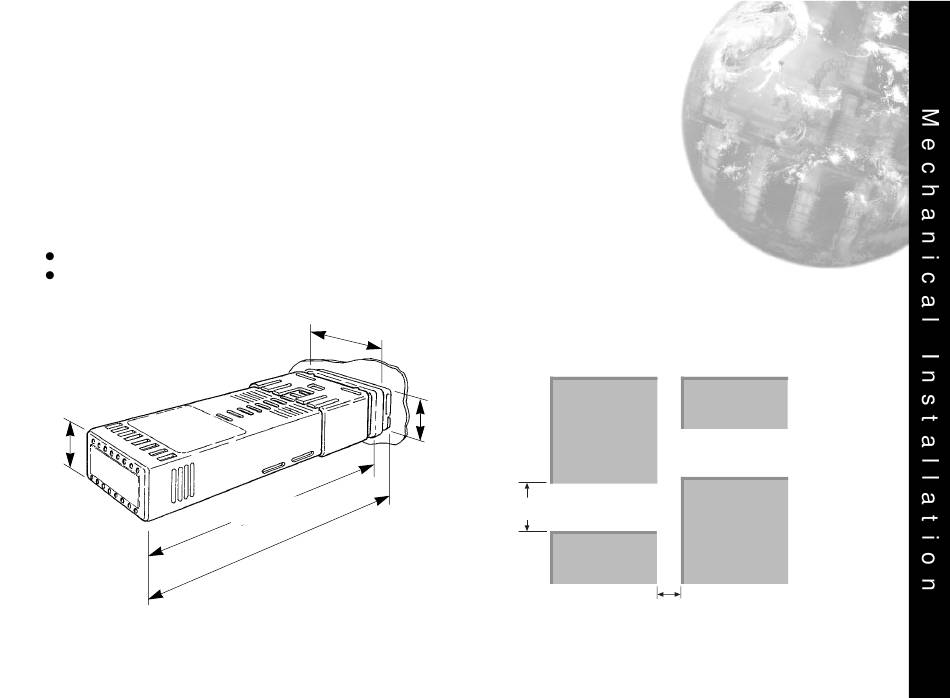

Model 3300
Dimensions in mm (inches)
22.0
(0.87)
51.0
(2.0)
106.7 (4.2)
with gasket fitted
116.2 (4.57)

MECHANICAL INSTALLATION

DIN PANEL CUTOUT SIZES
1/32 DIN panel cutout size
45.0mm +0.6mm -0.0mm (1.77in. +0.02in. -0.0in.) wide
22.2mm +0.3mm -0.0mm (0.87in. +0.01in. -0.0in.) high
9.5mm (0.374in) maximum panel thickness.
1/16 DIN panel cutout size
45.0mm +0.6mm -0.0mm (1.77in. +0.02in. -0.0in.) wide
45.0mm +0.6mm -0.0mm (1.77in. +0.02in. -0.0in.) wide
9.5mm (0.374in) maximum panel thickness.

MINIMUM SPACING

1/16 DIN
28.5
Cut out
(1.12)
includes
gasket
20 mm
(0.79)
1/32 DIN
Cut out
10 mm
(0.39)
