Section 2 - OPERATING INSTRUCTIONS

1.1 INTRODUCTION

Before starting machine, visually check location of all operational controls and identify major parts discussed in
Operator's Manual.
HIGH SPEED IMPELLER
COLLECTOR AUGERS
IMPELLER HOUSING
BLOWER
HOUSING
COLLECTO
R AUGERS
SCRAPER BLADE
(REPLACEABLE)
REMOTE DEFLECTOR
CONTROL (26" & 30" MODELS)
SPEED CONTROL LEVER
BLOWER CLUTCH
CONTROL LEVER
HEAD LIGHT
(26" & 30" MODELS)
DISCHARGE
DEFLECTOR
CAP
FUEL TANK
GEAR BOX

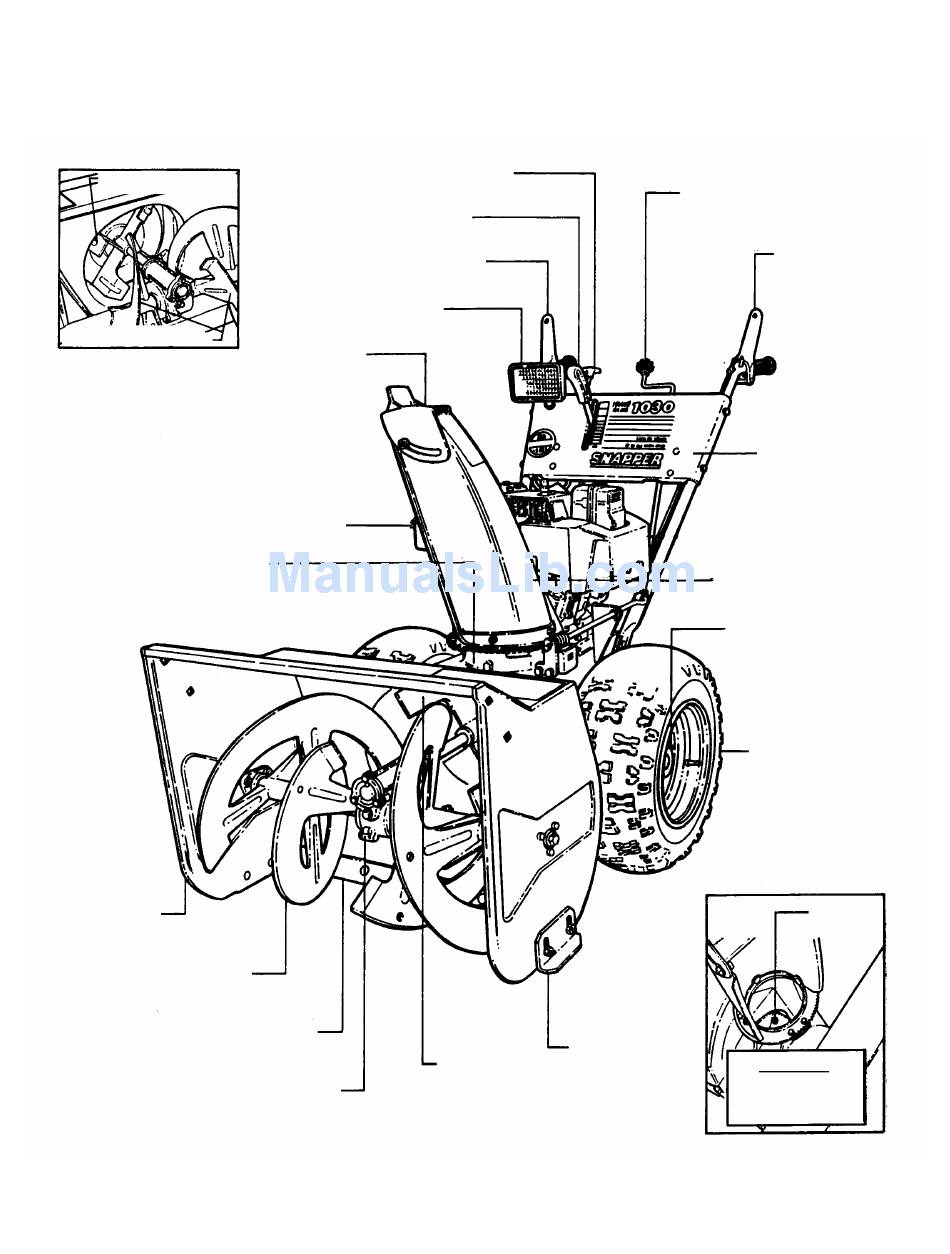

FIGURE 1.1
NOMENCLATURE
SKID SHOES
IMPELLER
(ROTATES @ APPROX.
1100 RPM DURING OPERATION)
7
DISCHARGE CHUTE
CONTROL
TRACTION CLUTCH
CONTROL LEVER
CONTROL PANEL
DISCHARGE CHUTE
WHEEL RETAINING
PINS
TIRES
12-15 PSI W/O CHAINS.
15-20 PSI WITH CHAINS.
IMPELLER
WARNING!
KEEP HANDS AWAY
FROM DISCHARGE
THROAT & IMPELLER
