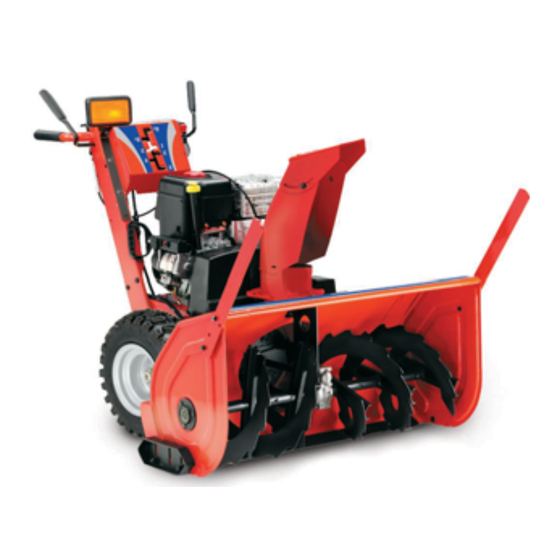

OPERATOR'S
MANUAL
Signature Professional
Series Snowthrowers
10524 Models
Mfg. No.
Description
1695074
P10524E, 10.5HP Snowthrower
1695075
P10524E, 10.5HP Snowthrower (CE)
11528 Models
Mfg. No.
Description
1695076
P11528E, 11.5HP Snowthrower
1695077
P11528E, 11.5HP Snowthrower (CE)
1332 Models
Mfg. No.
Description
1695078
P1332E, 13HP Snowthrower
1695079
P1332E, 13HP Snowthrower (CE)
1338 Models
Mfg. No.
Description
1695080
P1338E, 13HP Snowthrower
1695081
P1338E, 13HP Snowthrower (CE)
13388 Models
Mfg. No.
Description
1695097
13388E, 13HP Snowthrower
1695098
E13388E, 13HP Snowthrower (CE)
TP 100-4301-02-LW-SN
1733584
Revision 02
Rev. Date 08/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10524, 11528, 1332, 13388, 13388 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 10524, 11528, 1332, 13388, 13388

Summary of Contents for Snapper 10524, 11528, 1332, 13388, 13388

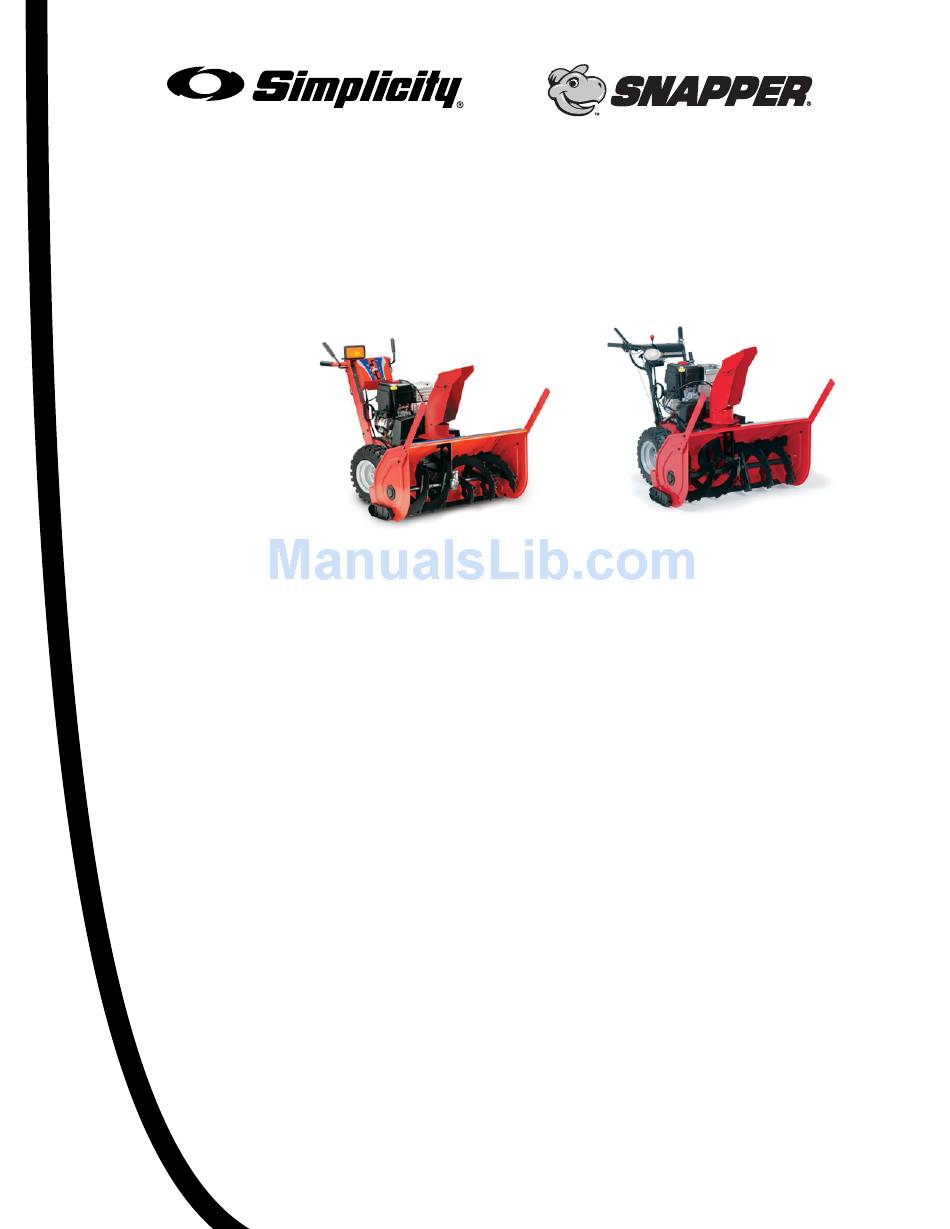

  • Page 1 OPERATOR’S MANUAL Signature Professional Series Snowthrowers 10524 Models Mfg. No. Description 1695074 P10524E, 10.5HP Snowthrower 1695075 P10524E, 10.5HP Snowthrower (CE) 11528 Models Mfg. No. Description 1695076 P11528E, 11.5HP Snowthrower 1695077 P11528E, 11.5HP Snowthrower (CE) 1332 Models Mfg. No. Description 1695078 P1332E, 13HP Snowthrower 1695079 P1332E, 13HP Snowthrower (CE)

  • Page 3: Table Of Contents

    CONTENTS: Safety Rules & Information Training ...2 Preparation ...2 Operation...2 Children ...3 Clearing a Clogged Discharge Chute ...3 Service, Maintenance and Storage ...3 Emissions ...3 Decals...5 Safety Icons ...6 Identification Numbers...7 Features, Controls, & Operation Control Locations...8 General Operation Checks Before Each Start-Up ...10 Starting the Engine...11 Starting Controls...11 Operating The Snowthrower...12...

  • Page 4: Safety Rules & Information

    Safety Rules & Information This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.

  • Page 5: Children

    21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. 22. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries. These operators should evaluate their ability to operate the unit safely enough to protect themselves and others from injury.

  • Page 7: Decals

    DECALS This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment. Although reading this manual and safety instructions it contains will provide you with the necessary basic knowl- edge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you are operating...

  • Page 8: Safety Icons

    Safety Icons SAFETY ICONS WARNING: READ OPERATOR’S MANUAL. Read and understand the Operator’s Manual before using this machine. DANGER: THROWN OBJECTS. This machine is capable of throwing objects and debris. Keep bystanders away. WARNING: REMOVE KEY BEFORE SERVICING. Remove the key, disconnect spark plug wire, and consult technical litera- ture before performing repairs or maintenance.

  • Page 9: Identification Numbers

    Identification Numbers When contacting your authorized dealer for replace- ment parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identi- fication numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown.

  • Page 10: Features, Controls, & Operation

    Features, Controls, & Operation Please take a moment and familiarize yourself with the name, location, and function of these controls so that you will better understand the safety and operating instructions provided in this manual. CONTROL LOCATIONS The information below briefly describes the function of individual controls. Starting, stopping, and driving require the combined use of several controls applied in specific sequences.

  • Page 11: Features And Controls

    Auger Control Engages the auger/impeller when depressed. Releasing the control stops the auger/impeller. Chute Direction Control Models with Electric Chute Rotator: Depressing the chute rotator switch rotates the chute left or right. Models with Manual Chute Rotator: Turning the crank rotates the discharge chute to desired position.

  • Page 12: General Operation

    Operation GENERAL OPERATION CHECKS BEFORE EACH START-UP 1. Make sure all safety guards are in place and all nuts, bolts and clips are secure. 2. Check to make sure that the clean-out is attached to the machine. Do not operate the machine without the clean-out tool properly stored on the machine.

  • Page 13: Starting Controls

    STARTING CONTROLS See Figure 1for the following instructions. Units with Optional Electric Start A. Electric Start Button - The Electric Start Button (A) activates an electric starter mounted to the engine, eliminating the need to pull the starter han- dle. The Electric Start Button operates on 120 Volts AC, which is provided by connection to the extension cord provided with units equipped with this feature.

  • Page 14: Operating The Snowthrower

    Operation OPERATING THE SNOWTHROWER 1. Rotate the discharge chute to the desired direction. 2. Set the speed selector to the desired forward speed. 3. Fully press and hold the auger engage control (C, Figure 2) on the right-hand grip to begin auger rota- tion.

  • Page 15: Deflector

    DEFLECTOR The distance of the discharged snow is mainly controlled by the position of the deflector. (Engine speed also affects distance of discharge.) The more the deflector is tilted UP, the farther snow will be thrown. Models with Chute Deflector Knob See Figure 3.

  • Page 16: Easy-Turn And Traction Drive Lock

    Operation FULL TRACTION Both Wheels Drive Figure 6. Easy Turn Control EASY TURN™ FREEWHEELING AND TRACTION DRIVE LOCK While Clearing Snow: For easy turning when using the snowthrower, squeeze the Easy Turn™ lever (Figure 6). Engaging the Easy Turn™ lever releases the right traction wheel but allows the left wheel to continue driving (Figure 6).

  • Page 17: After Each Use

    AFTER EACH USE Normal use of the snowthrower may result in a build-up of packed snow in and around the starter cord housing and around engine controls. Heat from the engine will usually prevent the snow from freezing solid while the unit is running, but after the engine is shut down, some snow may continue melting from engine heat, and later freeze around some moving parts as the unit cools.

  • Page 18: Regular Maintenance

    Regular Maintenance MAINTENANCE SCHEDULE MAINTENANCE REQUIRED Check auger gear case lubrication.** Lubricate snowthrower. Check tire pressure. Change engine oil.* ✛ Clean or replace spark plug. Check drive linkage/belt tension. Lubricate Axle Shafts. Check / Lubricate Free-Hand Linkage. Lubricate Auger Shaft.*** * Change original oil after two hours of operation.

  • Page 19: Lubrication

    LUBRICATION IMPORTANT NOTE It is very important that grease fittings on the auger shaft are lubricated regularly. If auger rusts to shaft, damage to worm gear may occur if shear pins do not break. To prevent wheels rusting to axles, it is also necessary to remove the wheels and grease the axles regularly.

  • Page 20: Check / Lubricate Free-Hand Linkage

    Regular Maintenance CHECK / LUBRICATE FREE-HAND LINKAGE Check the function of the Free-Hand controls: the con- trols should function as described in the CONTROLS section. It is critical for the safe operation of the unit that the controls disengage when released. If the controls do not function properly, lubricate them.

  • Page 22: Troubleshooting, Adjustments, & Service Troubleshooting

    Troubleshooting, Adjustments, Service TROUBLESHOOTING This section provides troubleshooting and service instructions. Locate the problem and check the possible cause/remedy in the order listed. Also, refer to the engine manufacturer’s Owner’s Manual for additional information. For problems not covered here, contact your local deal- PROBLEM Engine fails to start.
  • Page 23 PROBLEM Auger rotates, but snow is not thrown far enough Poor traction Auger does not stop when auger lever is released Snowthrower does not stop when drive lever is released Discharge control is difficult to operate. Snowthrower veers to one side. Excessive vibration.

  • Page 24: Speed Selector Adjustment

    Adjustments SPEED SELECTOR ADJUSTMENT 1. Loosen the two nuts (C, Figure 17). 2. Place the shift lever in 5th gear. 3. Push the lower rod into the housing and tighten the two nuts (C). Do not lift up or down on rods while tightening.

  • Page 25: Traction Drive Tension

    TRACTION DRIVE TENSION Initial Adjustment 1. Lift the bellcrank arm (C, Figure 19) up as far as it will 2. While holding the bell crank arm (C) up, adjust the cable until all the slack is removed. 3. Back the adjustment screw (E) out 7-8 turns. Tighten nut (D).

  • Page 26: Manual Discharge Chute Adjustment

    Adjustments MANUAL DISCHARGE CHUTE CONTROL LINKAGE ADJUSTMENT Pinion Gear Adjustment If the discharge chute is difficult to operate, first lubricate the pinion gear (A, Figure 20) and ring gear (F). If it is still difficult to operate, adjust as follows: NOTE: If the discharge chute will not stay in position, adjust the pinion gear (A) closer to the ring gear (F).

  • Page 27: Easy Turn Cable Adjustment

    EASY TURN™ CABLE ADJUSTMENT If the Easy Turn™ cable has stretched, the gears will not disengage when the control lever is activated. Adjust the cable using the following procedure. 1. Turn the engine off and disconnect the spark plug wire. 2.

  • Page 28: Belt Replacement

    Adjustments & Service BELT REPLACEMENT 1. Turn off the engine, remove the spark plug wire, and wait for all moving parts to stop. Rotate the spout full right. Loosen the two screws (B, Figure 25) securing the belt cover. 2. Tilt the cover forward and work it off the snowthrower. 3.
  • Page 29 6. Reverse the procedure to install the belts. Be sure there are no twists and the belts are properly seated in the grooves. Adjust the belt stops so there is 1/8” (3mm) clearance between belt and stop. The pattern for both belts is shown in Figure 28. Slide the right axle left fully before tightening the set collar (E, Figure 27).

  • Page 30: Specifications

    Specifications NOTE: Specifications are correct at time of printing and are subject to change without notice. * The power ratings for an individual engine model are initially developed by starting with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure) (Revision 2002–05). Given both the wide array of products on which our engines are placed, and the variety of environmental issues applicable to operating the equipment, it may be that the engine you have purchased will not develop the rated horsepower when used in a piece of power equipment (actual “on–site”...

  • Page 31: Technical Manuals

    REPLACEMENT PARTS Replacement parts are available from your authorized dealer. Always use genuine Simplicity / Snapper Service Parts. MAINTENANCE ITEMS Many convenient and helpful service and maintenance items are available from you authorized dealer. Some of these items include: Engine Oil...
  • Page 32 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com P R O D U C T S , I N C . 535 Macon Street McDonough, GA 30253 www.Snapper.com © Copyright 2006 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
